1u Rack Mount Erbium Doped Fiber Amplifier Card ATC System 80CH DWDM

Product Details:
Place of Origin: China
Brand Name: Hilink
Certification: CE FCC Rohs
Model Number: HL-1 U EDFA
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Normal package by requires.
Delivery Time: 5-8working days
Payment Terms: L/C, T/T, Western Union
  • Detail Information
  • Product Description

Detail Information

Products Name: 1 U EDFA Applications: C-band 40/80CH DWDM
Type: Low-noise High Flatness Design DCM: 20~100km
Output Power: Adjustable Bellcore GR-1312-CORE: Yes
OEM: Support Warranty: 3 Years
High Light:

Rack Mount Erbium Doped Fiber Amplifier

,

80CH DWDM Erbium Doped Fiber

,

ATC System Erbium Doped Amplifier

Product Description

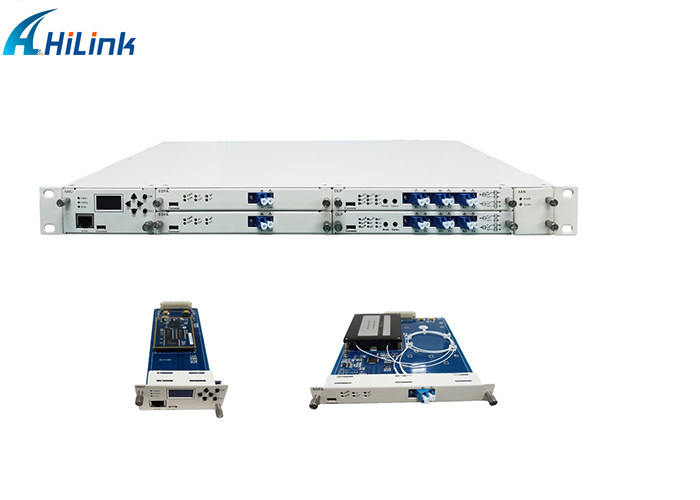

1U RACK MOUNT 100G ERBIUM DOPED FIBER AMPLIFIER CARD



     1U Rack Mount Erbium doped fiber amplifier card has high stable output, high gain flatness and high reliability. The system’s flatness and noise can achieve the best optimization by the gain flattening filters of professional design. The system is convenient to regulation and display, reliable, intelligent by using high stable and high precision MPU.



Applications

C-band 40/80CH DWDM

Other optical systems



Product features

Low-noise high flatness design

Pluggable Dispersion Compensation 20~100km

Adjustable output power

High precision ATC keep system stableoperation

Precision AGC / APC circuit keeps the output

Power stability

Card design highly integrated, space-saving cabinet

Expansion is very convenient

Strict accordance with-+`- Bellcore GR-1312-CORE

requirement for design



Performance index



Parameters Unit Symbol Min Typ Max
Operating Wavelength nm λc 1528 ----- 1564
Saturate Output Power dBm Po ----- ----- 20
Input Power dBm Pi -35 ----- 6
Gain(1) dB G ----- 20 33
DCM IL dB IL 3 ----- 13
Noise Figure dB NF ----- 4.5 6
Power/Gain Stability dB ΔPo ----- ±0.05 ±0.2
Input Isolation dB ISOi 30 ----- -----
Output Isolation dB ISOo 30 ----- -----
Flatness dB GF ----- 1 -----
Return loss dB RL ----- ----- -45
PDG dB PDG ----- ----- 0.3
PMD ps PMD ----- ----- 0.5
Consumption W P ----- -----

15





1u Rack Mount Erbium Doped Fiber Amplifier Card ATC System 80CH DWDM 01u Rack Mount Erbium Doped Fiber Amplifier Card ATC System 80CH DWDM 11u Rack Mount Erbium Doped Fiber Amplifier Card ATC System 80CH DWDM 21u Rack Mount Erbium Doped Fiber Amplifier Card ATC System 80CH DWDM 3

一.OEM and ODM



OEM/ODM order is available.

Guarantee
We promise all the advertised optical transceivers are brand new with new components and parts and absolutely never use old and refurbished materials. All the optical transceivers have been through functional test and aging test. We provide 3 years warranty for all the optical transceivers from the date of shipment.



What we supply

We supply all kinds of compatible optical transceiver modules, including SFP, GBIC, SFP+, XENPAK, X2 , XFP, BIDI,CWDM,DWDM and other special transceiver modules. Our products are compatible with most of brands. If more details, please contact us.





FAQ

Q:Do you sell second-hand products?

A:No.All our products are brand new,we never use second-hand components.



Q:What payment terms do you accept?

A:T/T,Paypal,Western Union are acceptable.



Q:What are the shipping ways can you offer?

A:Our usual shipping ways are DHL,FedEX,TNT,UPS,EMS etc.It will take 3-7days.



Q:Do your products come with warranty?

A:Yes,We provide 3 years warranty for all our products from the date of shipment.



Q:What devices can your products compatible with?

A:Our products are compatible with Mainstream switches.



Q:How to place an order?

A:1>Order details confirmed,please tell us the model and quantity you need.
2>Proforma Invoice confirmed, the order will be arranged upon receipt of your payment.
3>Confirm and ship the goods, then tracking number will be sent to you promptly.
4>We will help to track your goods until you receive them safely.
