Multi Channel Edfa Optical Amplifier High Flatness Dcm Inserting

Multi Channel Edfa Optical Amplifier High Flatness Dcm Inserting

Product Details:

Place of Origin: China
Brand Name: Hilink
Certification: CE,ROHS,FCC
Model Number: HL-DCM EDFA

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Normal package by requires.
Delivery Time: 5-8workingdays
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000pcs/month
Get Best Price Contact Now

Detail Information

Multi-channel: Yes Applications: C-band 40/80CH DWDM
Design: Low-noise High Flatness Design DCM: 20~100km
Bellcore GR-1312-CORE: Yes Output Power: Adjustable
Delivery Time: 3-7working Days Warranty: 3Years
High Light:

Dcm Inserting Edfa Optical Amplifier


Multi Channel Edfa Optical Amplifier


High Flatness Edfa Fiber Amplifier

Product Description

Multi Channel Edfa Optical Amplifier High Flatness Dcm Inserting



     The product is multi-channel EDFA of support dispersion compensation modules insertion, high flattening and high stable output. The product can amplify of before and after by double-pumped, offset the insertion loss dispersion compensation module and has the better transmission performance index than unipolar amplification of high gain. The kernel component of theproduct ishigh availabilitypump laserand high-performance gain flattening filters.





C-band 40/80CH DWDM

Other optical systems


Product features

Low-noise high flatness design

Pluggable Dispersion Compensation 20~100km

Adjustable output power

High precision ATC keep system stableoperation

Precision AGC / APC circuit keeps the output

Power stability

Card design highly integrated, space-saving cabinet

Expansion is very convenient

Strict accordance with Bellcore GR-1312-CORE

requirement for design


Performance index


Parameters Unit Symbol Min Typ Max
Operating Wavelength nm λc 1528 ----- 1564
Saturate Output Power dBm Po ----- ----- 20
Input Power dBm Pi -35 ----- 6
Gain(1) dB G ----- 20 33
DCM IL dB IL 3 ----- 13
Noise Figure dB NF ----- 4.5 6
Power/Gain Stability dB ΔPo ----- ±0.05 ±0.2
Input Isolation dB ISOi 30 ----- -----
Output Isolation dB ISOo 30 ----- -----
Flatness dB GF ----- 1 -----
Return loss dB RL ----- ----- -45
PDG dB PDG ----- ----- 0.3
PMD ps PMD ----- ----- 0.5
Consumption W P ----- -----

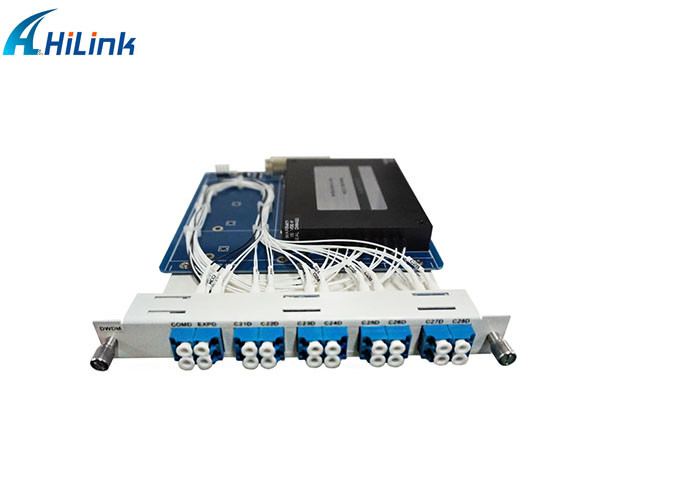

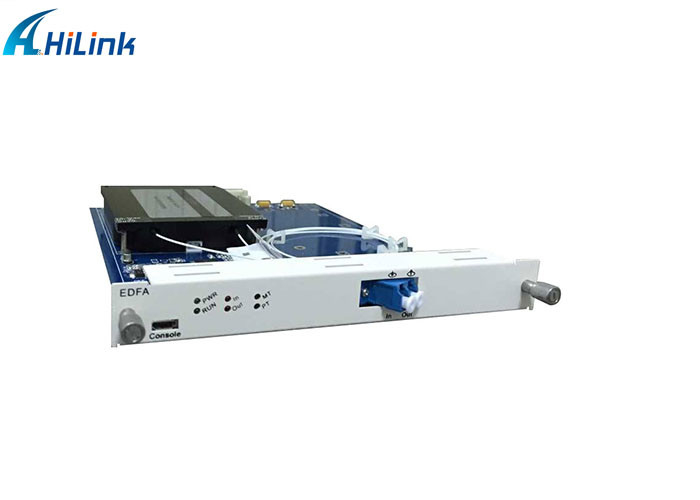

Multi Channel Edfa Optical Amplifier High Flatness Dcm Inserting 0Multi Channel Edfa Optical Amplifier High Flatness Dcm Inserting 1Multi Channel Edfa Optical Amplifier High Flatness Dcm Inserting 2

一.OEM and ODM


OEM/ODM order is available.


We promise all the advertised optical transceivers are brand new with new components and parts and absolutely never use old and refurbished materials. All the optical transceivers have been through functional test and aging test. We provide 3 years warranty for all the optical transceivers from the date of shipment.


What we supply

We supply all kinds of compatible optical transceiver modules, including SFP, GBIC, SFP+, XENPAK, X2 , XFP, BIDI,CWDM,DWDM and other special transceiver modules. Our products are compatible with most of brands. If more details, please contact us.




Q:Do you sell second-hand products?

A:No.All our products are brand new,we never use second-hand components.


Q:What payment terms do you accept?

A:T/T,Paypal,Western Union are acceptable.


Q:What are the shipping ways can you offer?

A:Our usual shipping ways are DHL,FedEX,TNT,UPS,EMS etc.It will take 3-7days.


Q:Do your products come with warranty?

A:Yes,We provide 3 years warranty for all our products from the date of shipment.


Q:What devices can your products compatible with?

A:Our products are compatible with Mainstream switches.


Q:How to place an order?

A:1>Order details confirmed,please tell us the model and quantity you need.
2>Proforma Invoice confirmed, the order will be arranged upon receipt of your payment.
3>Confirm and ship the goods, then tracking number will be sent to you promptly.
4>We will help to track your goods until you receive them safely.
