Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | Hilink |
| Certification: | CE FCC Rohs |
| Model Number: | HL-EDFA |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1pcs |
| Price: | Negotiation |
| Packaging Details: | Plastic packaging, Carton |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram,Paypal |
| Supply Ability: | 200PCS/month |
|
Detail Information |
|||
| Name: | EDFA | Connector Type: | FC/LC/SC/APC/UPC |
|---|---|---|---|
| Power Supply Voltage: | AC160V-250V(50Hz)orDC-48V | Operating Temperature Range: | -5 - +55℃ |
| Power Range: | -10-+6 DBm | Noise Figure: | ≤5.0dB |
| High Light: | EDFA Network WDM Solution,PON Network WDM Solution,FTTX OTN Equipment |
||
Product Description
GENERAL
Our module light pumped laser and Erbium-Doped Fiber is used by the JDSU and FITEL etc .We have reliable optical light power output stabilizing circuit and laser electrical refrigerator temperature to control the circuit, guaranteed the complete machine optimum performance and the laser long life steady work..
The microprocessor software have laser condition monitor, digital display fault warning, network management and various function. Once the laser’s operational parameter deviate software establishes permission scope, it will close laser’s power automatically. The red light coruscate, prompt alarm and digitizing tablet will point out fault cause.
The microprocessor software provide RS-232 and 485 interface used for network management and remote monitoring.
We adopt 1RU 19’’ standard engine frame efficient switch power, 85~254V utility power.
APPLIATION
Long distance trunk network.FTTx PON,Wide working wavelength: 1529.16~1563.86nm.
All kinds of SDH/PDH transmission system, High gain, low noise.
Optical Add/Drop and Cross-Connects.
Power equalization and flexible pre-emphas.
DATASHEET
| Project | Unit | Technical parameters | Notes |
| Work wavelength range(λ) | nm | 1546.12~1561.42nm | ITU16CH |
| Work wavelength range(λ) | nm | 1535.04~1562.23nm | ITU32CH |
| Work wavelength range(λ) | nm | 1529.55~1563.86nm | ITU44CH |
| No. of Working channel | (CH) | 1~44 | |
| Input power range | dBm | -10-+6 | Recommended input optical power -3-+6dBm |
| Output power range | dBm | 10~ 21 |
Optional scope: 10~17 10~20 11~21 |
| Reflection loss | Input terminal | dB | ≧45 | |
| Outputterminl | dB | ≧45 | ||
| Pump leak power | Input terminal | dBm | ≦-30 | |
| Outputterminl | dBm | ≦-30 | ||
| Optical connector type |
FC/APC or SC/APC or LC/APC FC/UPC or SC/UPC or LC/UPC |
|||

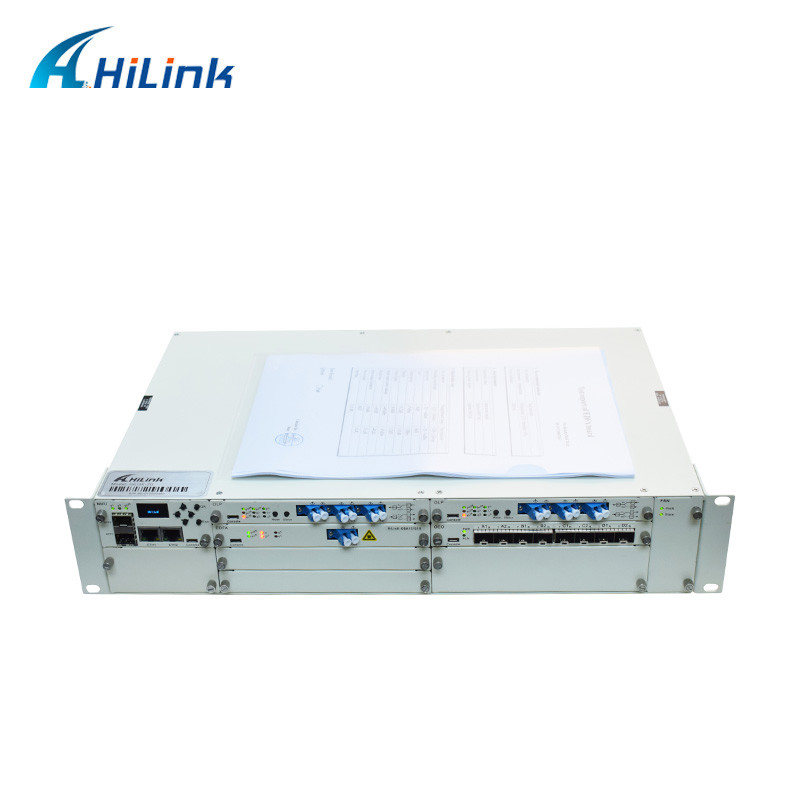

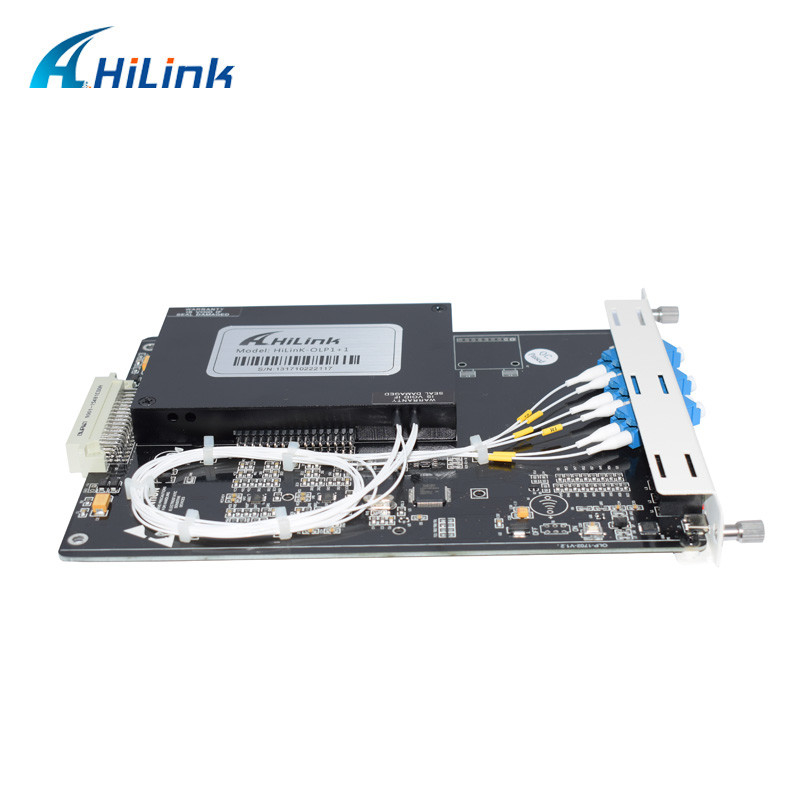

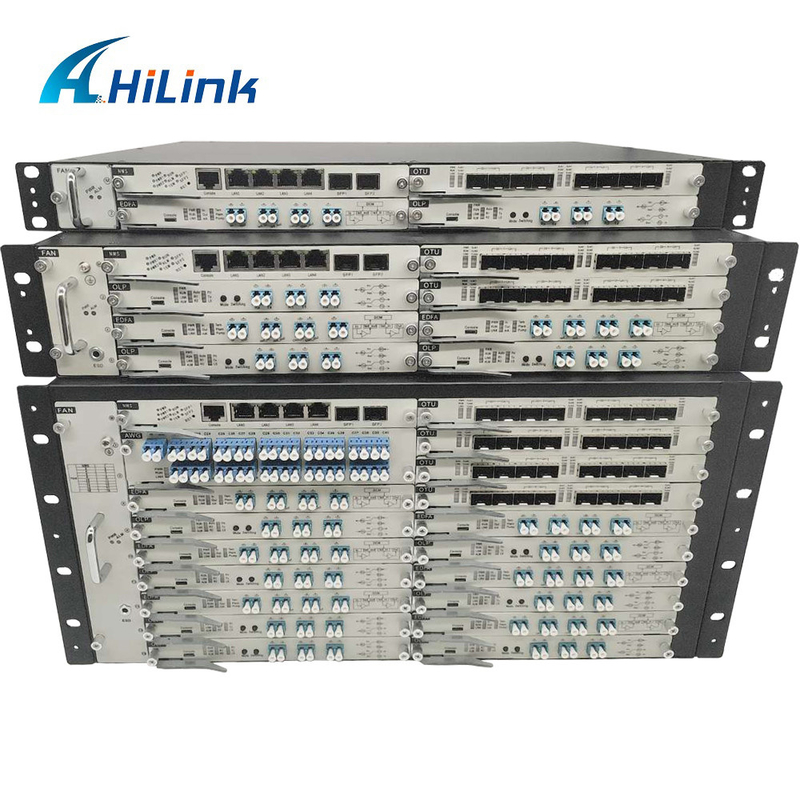

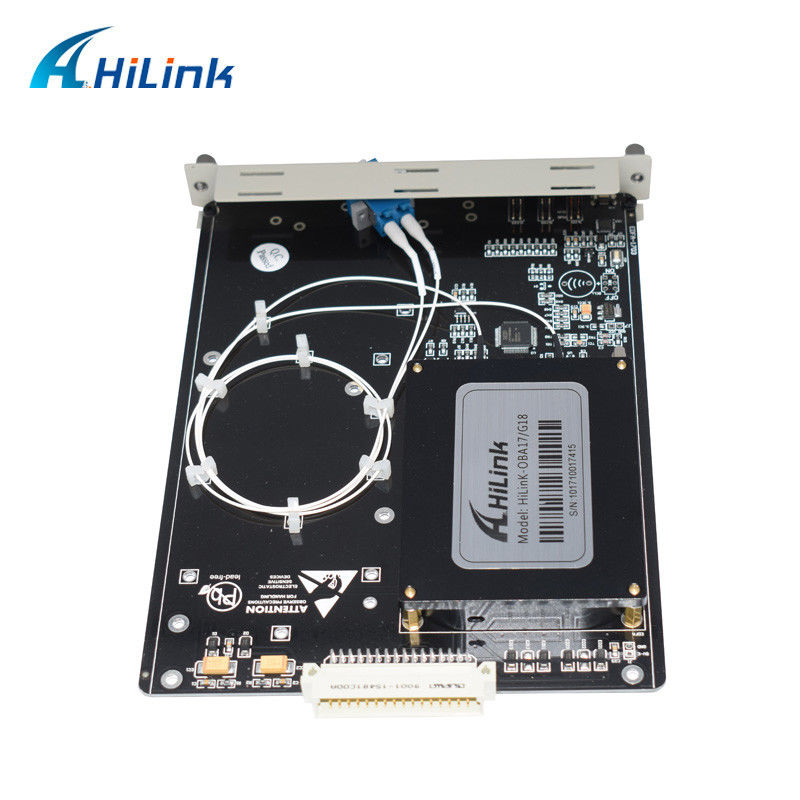

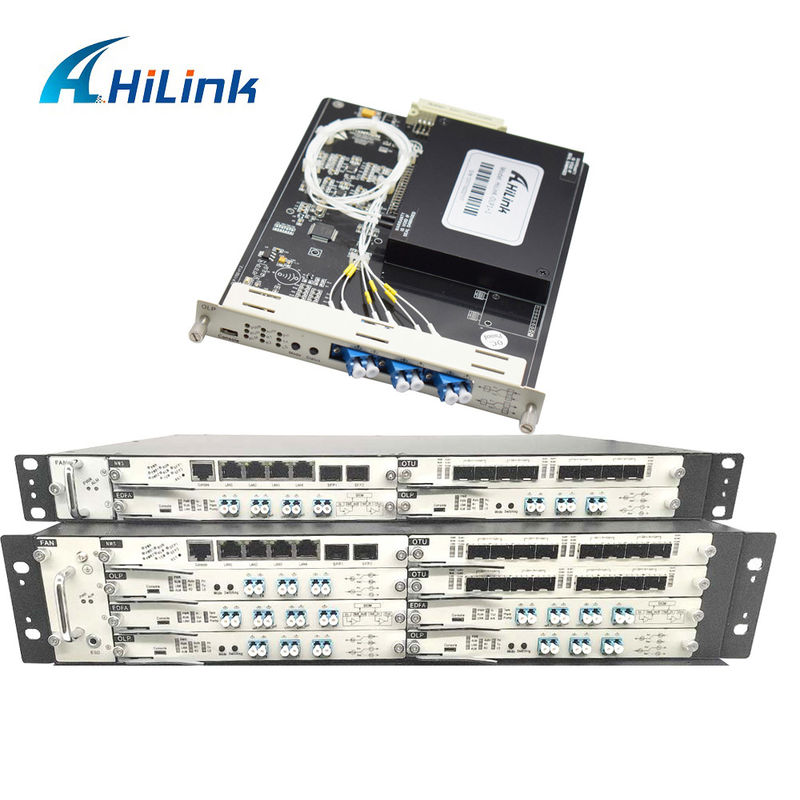

PRODUCT PICTURE SHOW:
COMPANY INFORMATION:
FAQ:
Q: Do you sell second-hand products?
A: No.All our products are brand new,we never use secont-hand components.
Q: What payment terms do you accept?
A: T/T,Paypal,Western Union are acceptable.
Q: What are the shipping ways can you offer?
A: Our usual shipping ways are DHL,FedEX,TNT,UPS,EMS etc.It will take 3-7days.
Q: Do your products come with warranty?
A: Yes,We provide 3 years warranty for all our products from the date of shipment.
Q: How to place an order?
A:1> Order details confirmed,please tell us the model and quantity you need.
2> Proforma Invoice confirmed, the order will be arranged upon receipt of your payment.
3> Confirm and ship the goods, then tracking number will be sent to you promptly.
4> We will help to track your goods until you receive them safely.
As we have various kinds of products,if you can't find the correct item you need,please send us inquiry.We will follow up shortly.
