CWDM MUX WDM Fiber Module 18CH 1U 19'' Racks ABS Box

CWDM MUX WDM Fiber Module 18CH 1U 19'' Racks ABS Box

Product Details:

Place of Origin: China
Brand Name: Hilink
Certification: CE,ROHS
Model Number: HL-CWDM MUX

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: Negotiation
Packaging Details: box & carton or customized package for 40ch AAWG DWDM Module .
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500/pcs/month
Get Best Price Contact Now

Detail Information

Product Name: CWDM Mux/Cemux Module Connector: SC FC LC APC UPC PC
Channel: 18 Channels Package: 1U 19'' Racks Or ABS Box Optional
Operating Wavelength (nm): 1460-1620nm Or 1260-1620nm Fiber Type: SMF-28e Or Customer Specified
High Light:

CWDM WDM Fiber Module

,

MUX WDM Fiber Module

,

ABS Box DWDM Mux Module

Product Description

CWDM MUX WDM Fiber Module 18CH 1U 19'' Racks ABS Box

18CH CWDM MUX Fiber Module CWDM System 1U 19'' Racks or ABS Box Optional





Features:

Low Insertion Loss

High Isolation

Low PDL

Compact Design

Good channel-to-channel uniformity

Mounted in 191 u Racks or ABS box optional
Wide Operating Wavelength:
From 1260nm to 1620nm
Wide Operating Temperature:
From -40℃ to 85℃
High Reliability and Stability





 Applications:

CWDM System

PON Networks

CATV Links

WDM Network



Compliance:

Telcordia GR-1209-CORE-2001

Telcordia GR-1211-CORE-1999

RoHS



Specifications:

Parameter 4 Channel 8 Channel 18 Channel
Mux Demux Mux Demux Mux Demux
Channel Wavelength (nm) 1270~1610
Center wavelength Accuracy (nm) ±0.5
Channel Spacing (nm) 20
Channel Passband (@-0.5dB bandwidth (nm) >13
Insertion Loss (dB) ≤1.6 ≤2.5 3.0
Channel Uniformity (dB) ≤0.6 ≤1.0 ≤1.5
Channel Ripple (dB) 0.3
Isolation (dB) Adjacent N/A >30 N/A >30 N/A >30
Non-adjacent N/A >40 N/A >40 N/A >40
Inertion Loss Temperature Sensitivity (dB/°C) <0.005
Wavelength Temperature Shifting (nm/°C) <0.002
Polarization Dependent Loss (dB) <0.1
Polarization Mode Dispersion <0.1
Directivity (dB) >50
Return Loss (dB) >45
Maximum Power Handling (mW) 300
Opterating Temperature (°C) -5~+75
Storage Temperature (°C) -40~85
Package dimension (mm) L100 x W80 x H10 or L140xW100xH15


Packaging & Shipping:

Enclosure type: Plastic ABS or Rack Mounted



Shipment

International Express: DHL, FedEx,EMS,TNT, UPS and so on. It takes 2-7 days.

Our Services



OEM and ODM

OEM/ODM order is available.



Guarantee
We promise all the advertised optical transceivers are brand new with new components and parts and absolutely never use old and refurbished materials. All the optical transceivers have been through functional test and aging test. We provide 3 years warranty for all the optical transceivers from the date of shipment.



What we supply

We supply all kinds of compatible optical transceiver modules, including SFP, GBIC, SFP+, XENPAK, X2 , XFP, BIDI,CWDM,DWDM and other special transceiver modules. Our products are compatible with Cisco, Ciena, H3C, HP, Extreme, Foundry, Avaya, D-link, Alcatel, Riverstone, Enterasys, Netgear, Nortel, Juniper, Ruijie, Zyxel, Huawei,etc.

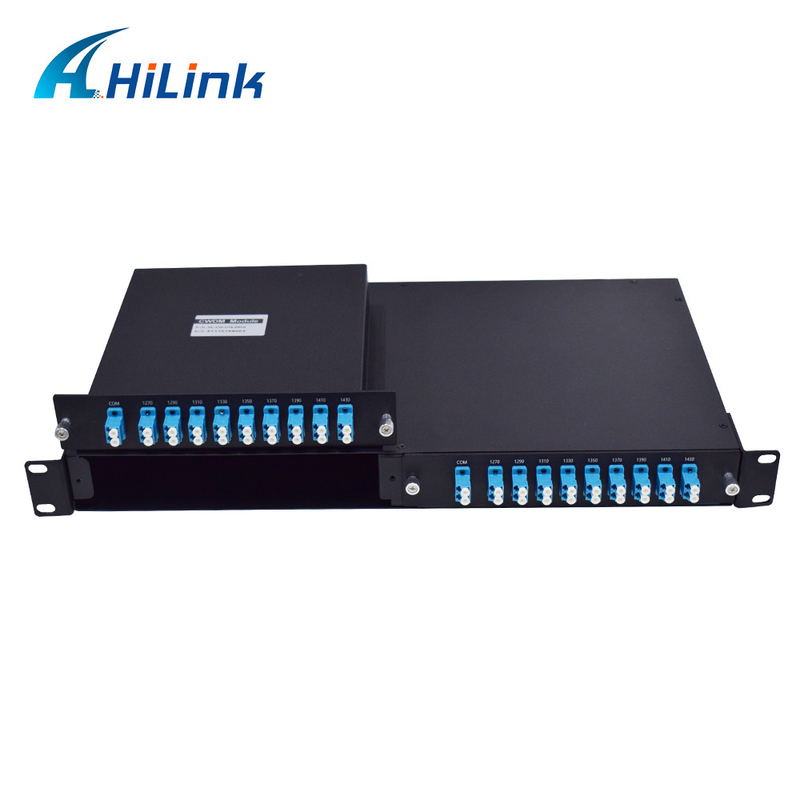

Product picture show









CWDM MUX WDM Fiber Module 18CH 1U 19'' Racks ABS Box 0

Company Information:

CWDM MUX WDM Fiber Module 18CH 1U 19'' Racks ABS Box 1

FAQ:



Q: Do you sell second-hand products?

ANo.All our products are brand new,we never use secont-hand components.



Q: Do your products come with warranty?

A: Yes,We provide 3 years warranty for all our products from the date of shipment.



Q: How to place an order?

A:1> Order details confirmed,please tell us the model and quantity you need.
    2> Proforma Invoice confirmed, the order will be arranged upon receipt of your payment.
    3> Confirm and ship the goods, then tracking number will be sent to you promptly.
    4> We will help to track your goods until you receive them safely.





As we have various kinds of products,if you can't find the correct item you need,please send us inquiry.We will follow up shortly.





Enclosure type: Plastic ABS Box or Rack Mounted
