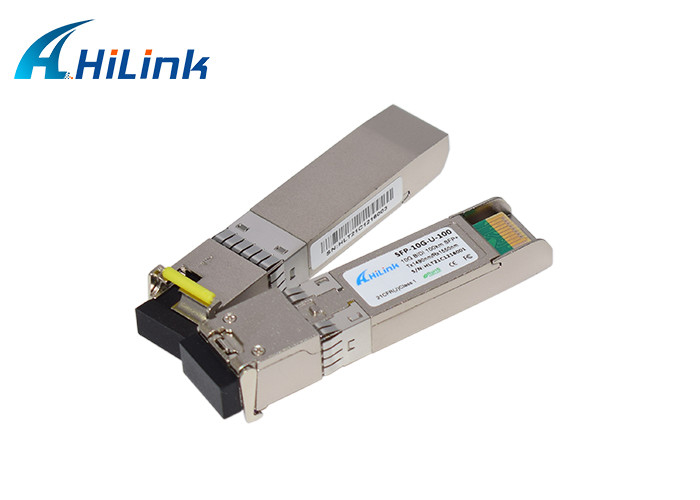

Bidirection SFP+ Fiber Optical Transceiver Single BIDI 10G 100KM

Bidirection SFP+ Fiber Optical Transceiver

Single BIDI Fiber Optical Transceiver

100KM Fiber Transceiver Module

Place of Origin:

Guangdong, China

Brand Name:

HILINK

Certification:

CE FCC Rohs

Model Number:

HL-SFP+-BX-U-100KM

Request A Quote

Bidirection SFP+ Fiber Optical Transceiver Single BIDI 10G 100KM

Product Details

Data Transfer Rate:

10Gb/s

Optical Interface:

Duplex LC

Operation Temperature:

0-70℃

Distance:

100KM

Wavelength:

1490/1550nm

Warranty:

3 Years

Payment & Shipping Terms

Minimum Order Quantity

1pcs

Price

Negotiable

Packaging Details

Static bag, Plastic bag, Retail box

Payment Terms

L/C, T/T, Western Union,Paypal

Supply Ability

100/pcs/month

25Gb/s SFP28 BIDI 60km 1295/1309nm LC DDM Transceiver

Get Best Price

Video

10G-ZR4-80KM 10G BIDI Transceiver Module 80KM 1490nm/1550nm SFP+ STM-64 WDM 8SFP+ SMF

Get Best Price

HL-SFP-BX-10KM 10G SFP+ Transceiver Module BIDI 20km 1270nm 1330nm LC Connector RoHS

Get Best Price

BIDI 10G WDM SMF Optical Transceiver SFP+ 100KM Tx1490nm/Rx1550nm with LC Fiber Optic Transceivers for FTTH Networks

Get Best Price

+86 17677464632

sales02@hilinktech.com

86-755-8317-6243

Contact Now

Product Description

Bidirection SFP+ Manufacturer Fiber Optical Transceiver Single SFP+ BIDI 10G 100KM

Name: Bidirection SFP+ Fiber Optical Transceiver Single BIDI 10G 100KM
Brand: Shenzhen HiLink Technology Co.,Ltd.
SKU: HL-SFP+-BX-U-100KM
Price: 893.00 USD
Availability: InStock

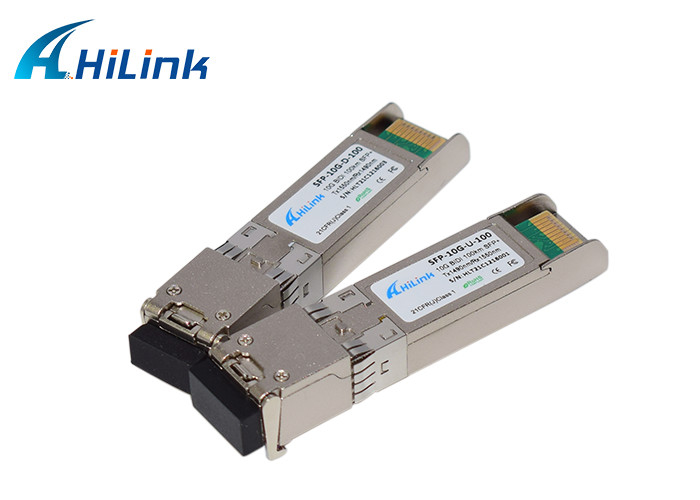

100KM 10Gb BIDI SFP

Tx: 1490nm/ Rx: 1550nm BIDI SFP+ Transceiver for 10GbE

Tx: 1550nm/ Rx: 1490nm BIDI SFP+ Transceiver for 10GbE

Features

Supports 9.95 to 11.3Gb/s bit rates

Simplex LC Connector

Hot pluggable SFP+ footprint

Cooled C-band DWDM EML transmitter, APD receiver

Applicable for 100km SMF connection

Low power consumption, < 1.5W

Digital Diagnostic Monitor Interface

Electrical interface compliant to SFF-8431

Commerical:0 to 70 °C

Applications

10.3125Gbps Ethernet

Other optical link

PRODUCT DESCRIPTION

HILINK's HLxx1XL-CD100 series single mode transceiver is small form factor pluggable module for optical data communications. It is with the SFP+ 20-pin connector to allow hot plug capability. The HLxx1XL-CD100 module is designed for single mode fiber and operates at a nominal wavelength of DWDM C-band; The transmitter section uses a DWDM EML laser, which is class 1 laser compliant according to International Safety Standard IEC-60825. The receiver section consists of a APD photodiode integrated with a TIA.

Also for 1.25Gbps

	HAILI BIDI SFP (155M/1.25G LC Interface) With or without DDMI
BIDI SFP 155MB LC/SC available	BSFP-L155M-SU	155M	1310/1550	3km	BIDI SFP	0~70	FP+PIN
	BSFP-L155M-SD	155M	1550/1310	3km	BIDI SFP	0~70	FP+PIN
	BSFP-L155M-LU	155M	1310/1490	20km	BIDI SFP	0~70	FP+PIN
	BSFP-L155M-LD	155M	1490/1310	20km	BIDI SFP	0~70	DFB+PIN
	BSFP-L155M-E1U	155M	1310/1550	40KM	BIDI SFP	0~70	FP+PIN
	BSFP-L155M-E1D	155M	1550/1310	40KM	BIDI SFP	0~70	FP+PIN
	BSFP-L155M-E2U	155M	1310/1490	40KM	BIDI SFP	0~70	FP+PIN
	BSFP-L155M-E2D	155M	1490/1310	40KM	BIDI SFP	0~70	DFB+PIN
	BSFP-U80	155M	1310/1550	80KM	BIDI SFP		DFB+PIN
	BSFP-D80	155M	1550/1310	80km	BIDI SFP		DFB+PIN
BIDI SFP 1.25GB LC/SC available	BSFP-L1.25G-SU	1.25G	1310/1550	2KM	BIDI SFP	0~70	FP+PIN
	BSFP-L1.25G-SD	1.25G	1550/1310	2KM	BIDI SFP	0~70	FP+PIN
	BSFP-L1.25G-LU	1.25G	1310/1550	20KM	BIDI SFP	0~70	FP+PIN
	BSFP-L1.25G-LD	1.25G	1550/1310	20KM	BIDI SFP	0~70	DFB+PIN
	BSFP-L1.25G-EU	1.25G	1310/1550	40KM	BIDI SFP	0~70	DFB+PIN
	BSFP-L1.25G-ED	1.25G	1550/1310	40KM	BIDI SFP	0~70	DFB+PIN
	BSFP-U80	1.25G	1310/1550	80KM			DFB+PIN
	BSFP-D80	1.25G	15501310	80km			DFB+PIN

General Operating Characteristics

Parameter	Symbol	Min.	Typ	Max.	Unit	Note
Data Rate	DR	9.95	10.3125	11.3	Gb/s
Supply Voltage	Vcc	3.13	3.3	3.47	V
Supply Current	Icc₅			450	mA
Operating Case Temp.	Tc	0		70	°C

Optical Characteristics (TOP(C) = 0 to 70 ℃, TOP(I) =-40 to 80 ℃,VCC = 3.13 to 3.47 V)

Parameter	Symbol	Min.	Typ	Max.		Unit	Note
Transmitter
Operating Wavelength	λ		C-band center wavelength			nm
Ave. output power (Enabled)	PAVE	2			6	dBm	1
Side-Mode Suppression Ratio	SMSR	30				dB
Extinction Ratio	ER	9				dB
RMS spectral width	Δλ				1	nm
Rise/Fall time (20%~80%)	Tr/Tf				50	ps
Dispersion penalty	TDP				3.2	dB
Relative Intensity Noise	RIN				-128	dB/Hz
Output Optical Eye	Compliant with IEEE 0802.3ae
Receiver
Operating Wavelength	λ		C-band center wavelength			nm
Receiver Sensitivity	PSEN1				-24.5	dBm	2
Sensitivity over 100Km fiber	PSEN2				-22	dBm	2
Overload	PAVE				-7	dBm
LOS Assert	Pa	-35				dBm
LOS De-assert	Pd				-26.5	dBm
LOS Hysteresis	Pd-Pa	0.5				dB

Notes:

1. Average power figures are informative only, per IEEE 802.3ae.

2. Measured with worst ER=9; BER<10^-12; 2^{31 – 1} PRBS.

Ordering Information

Part Number	Description
HLxx1XL-CD80	SFP+BIDI,9.95-10.7Gb/s, c-band,80km, 0~70℃, with DDM
HLxx1XL-CDH1	SFP+BIDI,9.95 to 10.7Gb/s, C-band, 100km, 0~70℃, with DDM
