Shenzhen HiLink Technology Co.,Ltd.

East And West 2CH DWDM OADM Fiber Module With SC APC Connector

Product Details:
Place of Origin: China
Brand Name: HILINK
Certification: CE FCC Rohs
Model Number: HL-DWDM OADM
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Normal package
Delivery Time: 5-8 Working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 3000PCS/MONTH
  • Detail Information
  • Product Description

Detail Information

Products Name: 2CH Dwdm OADM Operating Wavelength: C36&C37
Fiber: Dual Fiber Fiber Length: 50cm
Package: ABS Type Conenctor: SC APC Connector
Logo: OEM Warranly: 3 Years
Lead Time: 3-10 Working Days Certification: RoHs&CE
High Light:

DWDM OADM Fiber Module


SC APC Connector Fiber Module


East And West 2CH Optical Module

Product Description

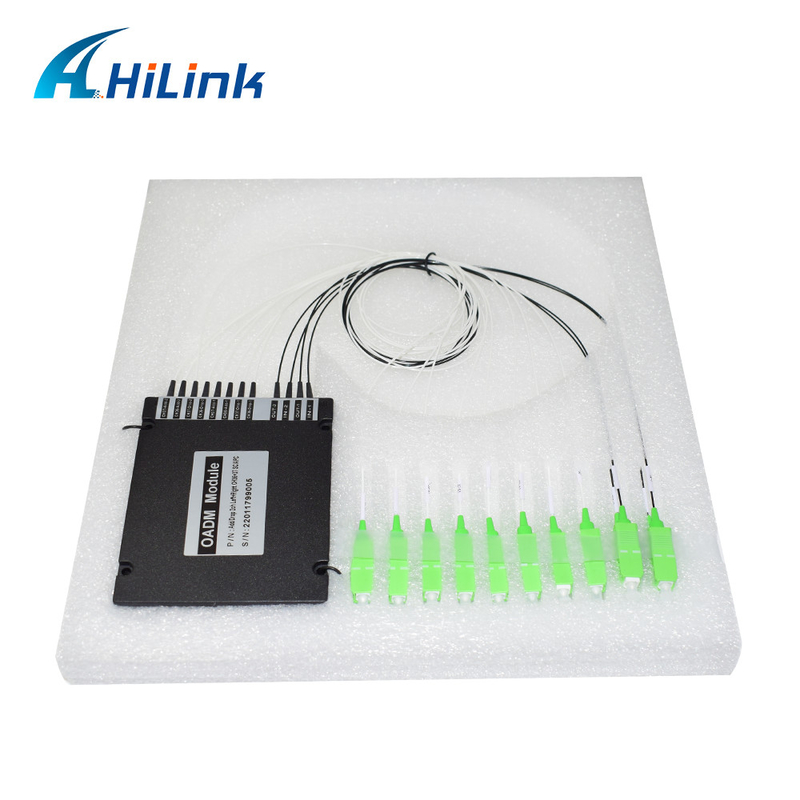

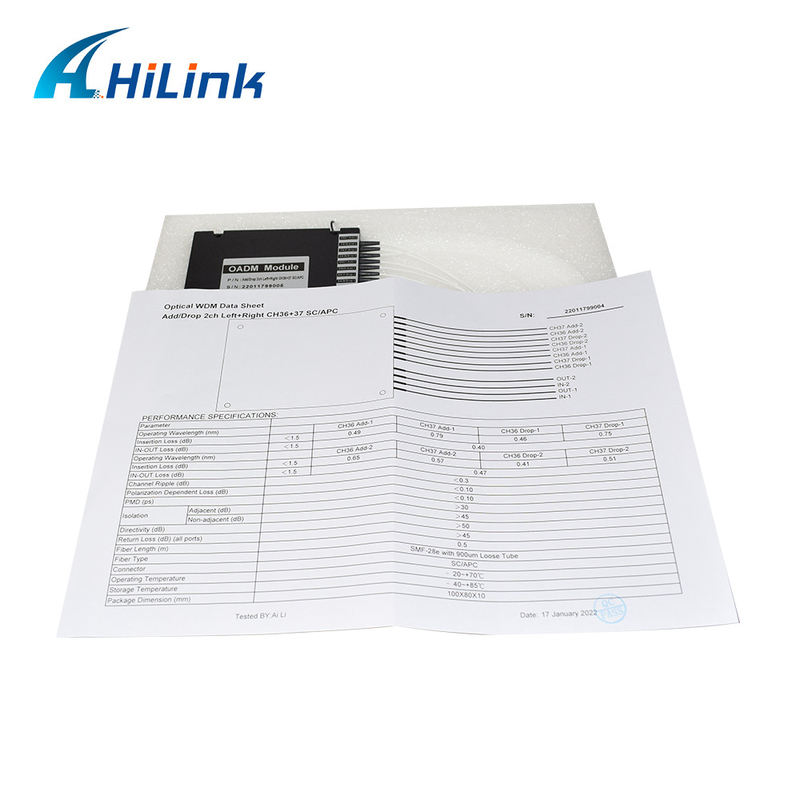

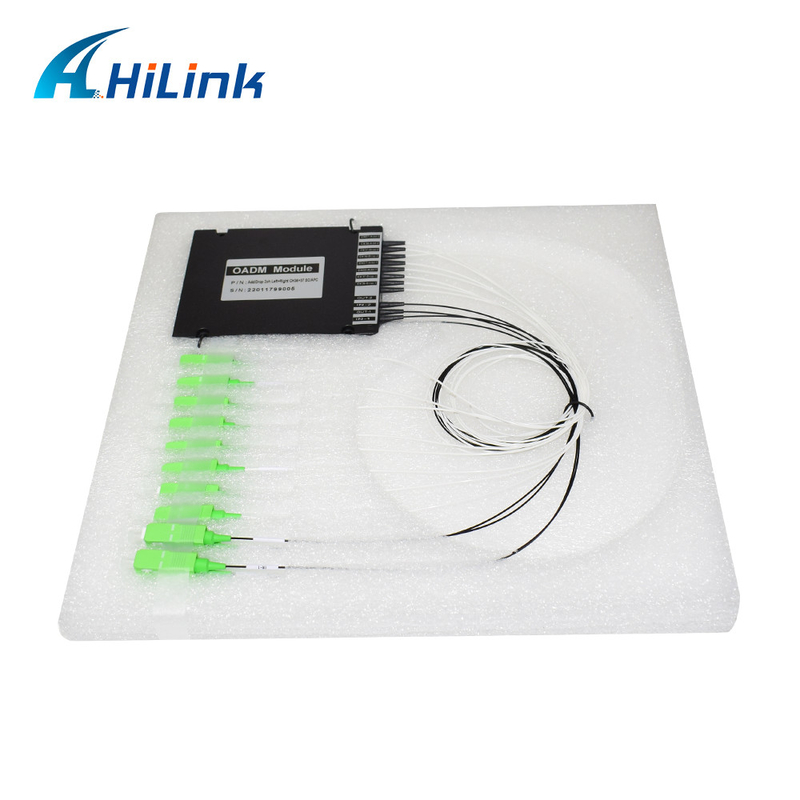

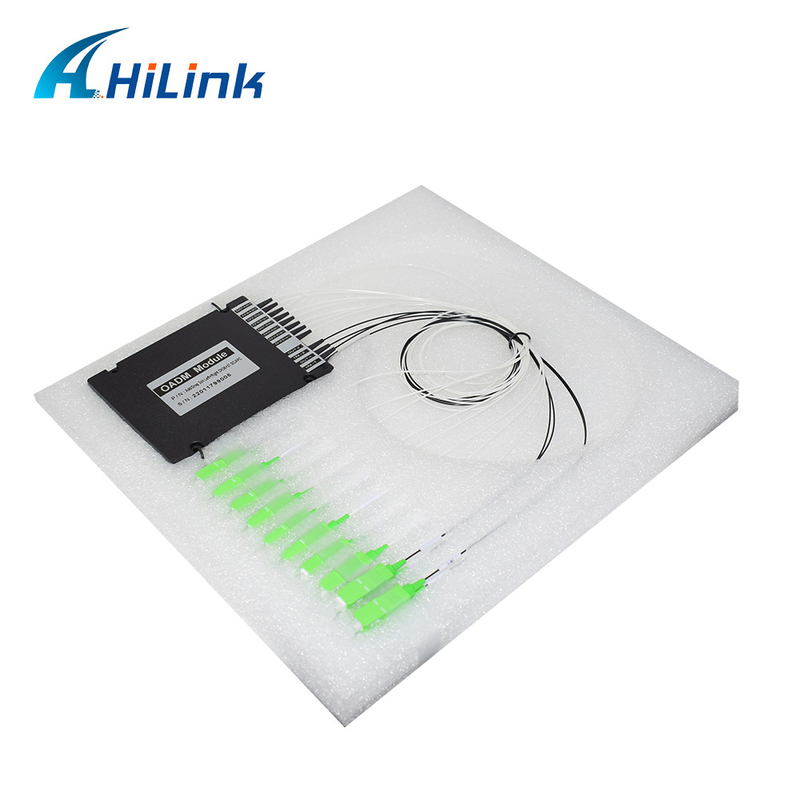

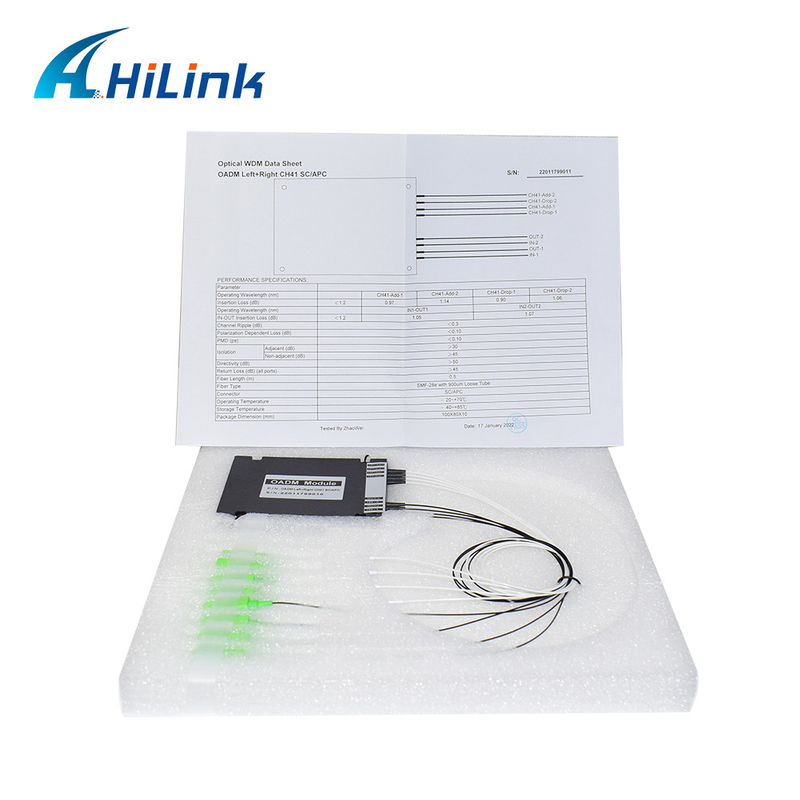

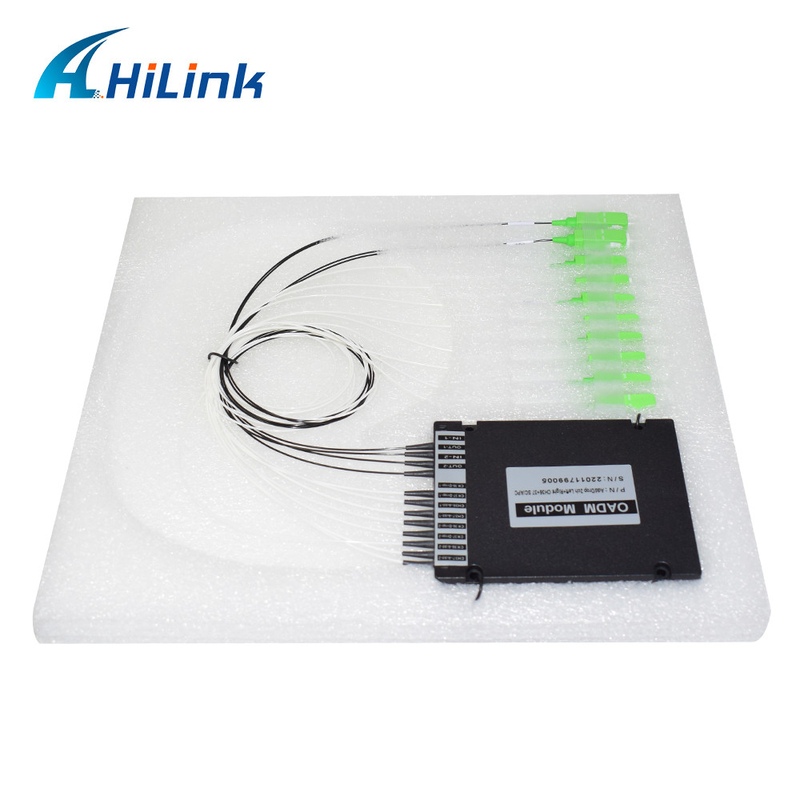

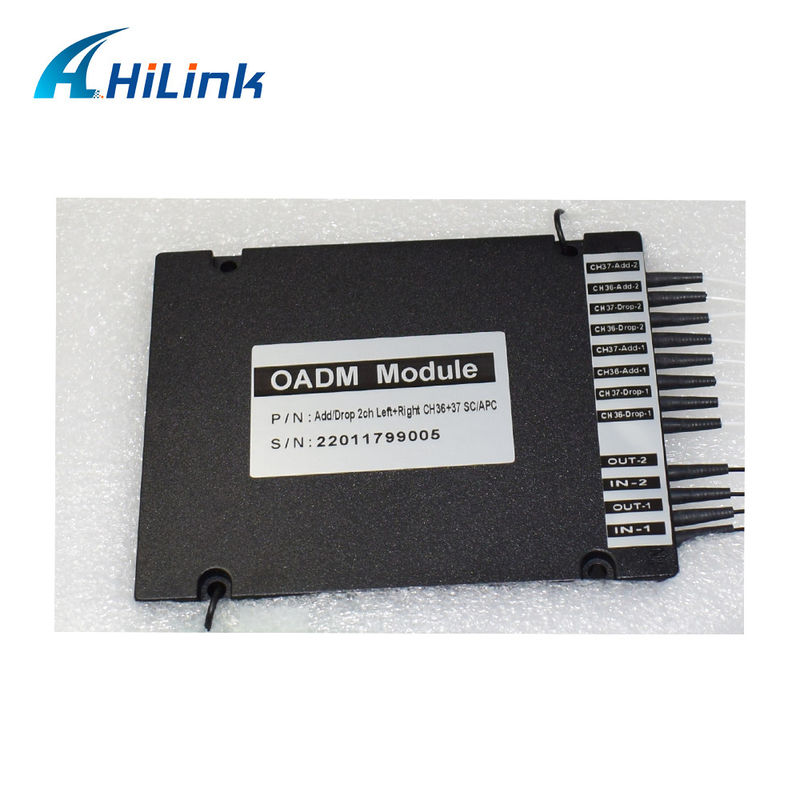

Optical module 2CH Optical DWDM OADM equipment east and west ABS type with SC APC connector



DWDM Optical Add/Drop multiplexer (OADM) is a passive optical device used in WDM networks for adding and dropping one/multiple 100 GHz DWDM channels in the C-band into one or two fibers, while letting the rest of the wavelengths bypass to the needed destination. Using the DWDM technology can add effctively WDM capability to their existing and new networks, and extend the optical signals transmission distance.

DWDM OADM modules are available in single-sided (East or West) and dual-sided (East and West) configurations. With matching MUX/DeMUX units placed at each end of an optical link, multiple data channels can be combined and transmitted over a single-mode fiber trunk. The passive OADM modules can add or drop up to 4 data channels at any point along the trunk.

HILINK DWDM OADM are modular, scalable and are perfectly suited to 10/1G Ethernet, 16/8/4/2/1G FC, SDH/SONET, Video, CATV, FTTx applications.
