Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | Hilink |
| Certification: | CE FCC Rohs |
| Model Number: | HL-DCMAXX |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1pc |
| Price: | Negotiation |
| Packaging Details: | Plastic packaging, Carton |
| Payment Terms: | T/T, Western Union, MoneyGram,Paypal |
| Supply Ability: | 200PCS/month |
|
Detail Information |
|||
| Name: | Dispersion Compensation DCM Business Module | Compensated Distance: | Up To 120KM |
|---|---|---|---|
| Wavelength: | C-band Range | Dimensions(mm): | 191 * 253 * 42 |
| Connector: | LC/UPC | Operating Temperature: | -10 To +60℃ |
| High Light: | FCC Dispersion Compensation Module,LC UPC Dispersion Compensation Module,Business dcm dispersion compensation module |
||
Product Description

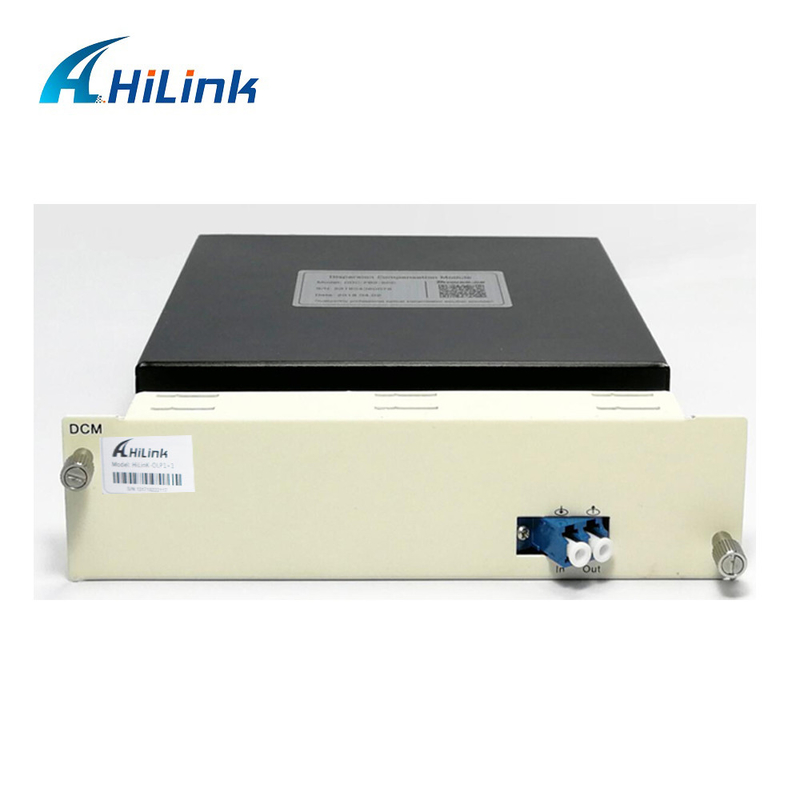

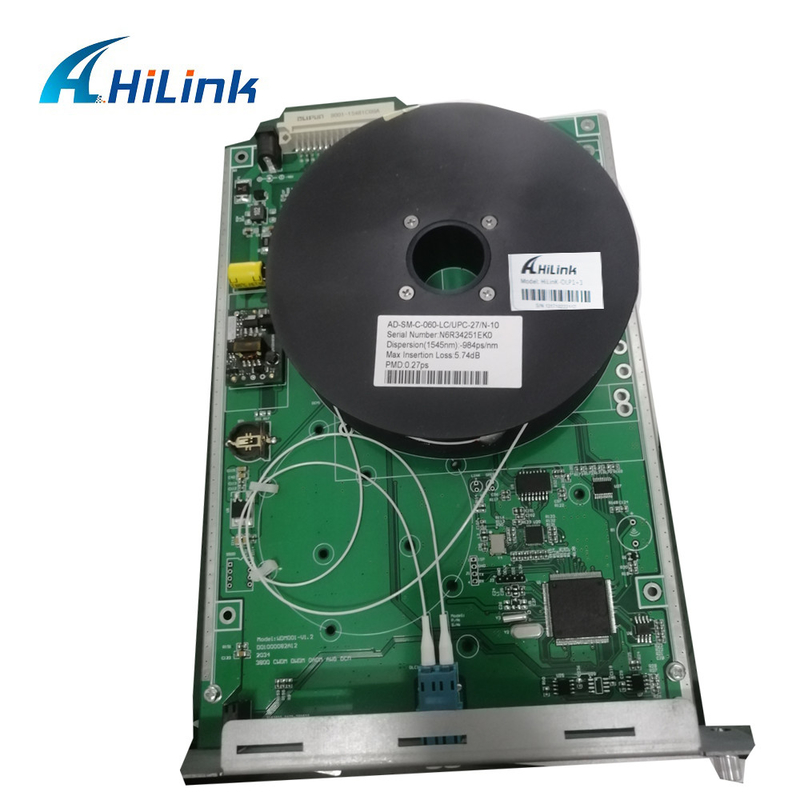

Hilink's Dispersion Compensation Modules are building blocks of the HL6000 Optical Transport System and serve at optical communication nodes to correct the pulse spread phenomenon known as Chromatic Dispersion that reduces the maximal transmission distance of data in optical fibers.
* DWDM system dispersion compensation and broadband low residual dispersion
* G.652 fiber C-band 100% slope compensation (standard value)
* Low insertion loss
* Low polarization mode dispersion
* Hot swappable
* Low power consumption
* Support for 10/40/100/200/400Gbps
* C-Band Range
| Parameters | Min. | Max | |
|---|---|---|---|
| Billouin Scattering Threshold (dBm) | 6 | - | |
| Non-line ar Cofficient (n2/Aeff) (W-) | - | 1.4*10⁻⁹ | |
| Effective Area (Aetd@1550nm (um2) | 20 | - | |
| Maximum Input Power (dBm) | - | 23 | |
| Dimension (mm) | 191* 253* 42 | ||
| Environment | Operating Temperature (℃) | -10 ~ +60℃ | |
| Storage Temperature (℃) | -40 ~ +85℃ | ||
| Relative Humidity | 5% ~ 95% / Non-condensing | ||
* Signal repeating
* Lambda conversion
* Loss and Dispersion Compensation for Optical Fiber Networks
