Mini 10G OEO Converter 10G SFP+ TO SFP+ Media Converter For Long Haul Transmission

Product Details:
Place of Origin: China
Brand Name: Hilink
Certification: CE FCC Rohs
Model Number: HL-OEO-10G
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiation
Packaging Details: Plastic packaging, Carton
Payment Terms: T/T, Western Union, MoneyGram,Paypal
Supply Ability: 200PCS/month
  • Detail Information
  • Product Description

Detail Information

Product Name: Mini 10G OEO Converter Interface Type: SFP+ To SFP+/ XFP To XFP
Working Status: Rackmounted / Standalone Distance: Up To 80KM
Power Consumption: ≤4W Operating Temperature: 0 To +50℃
High Light:

4W Mini 10G OEO Converter

,

Long Haul Transmission 10G OEO Converter

,

SFP+ TO SFP+ 10G OEO Converter

Product Description

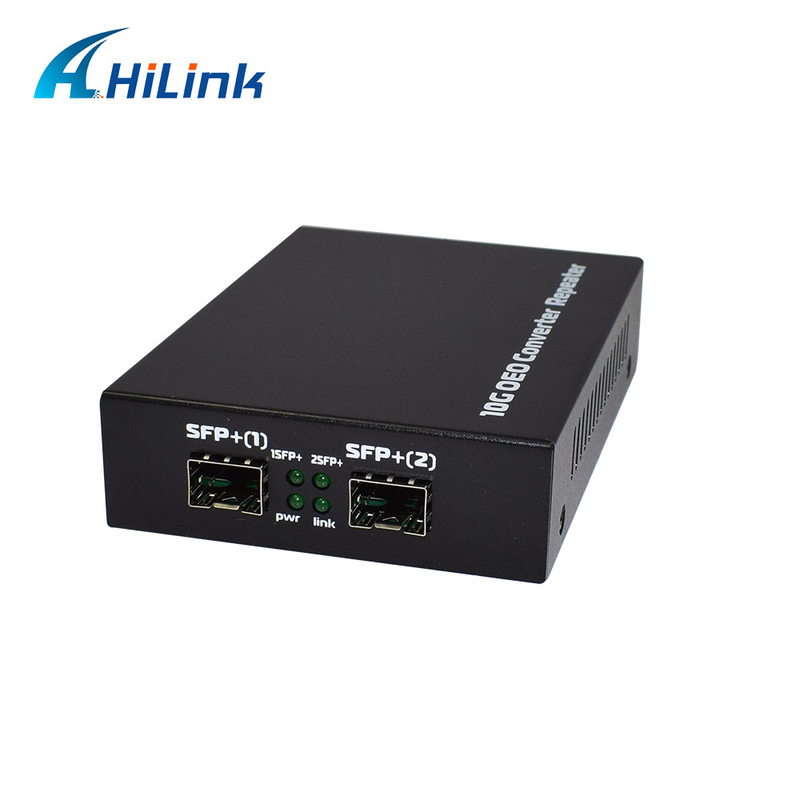

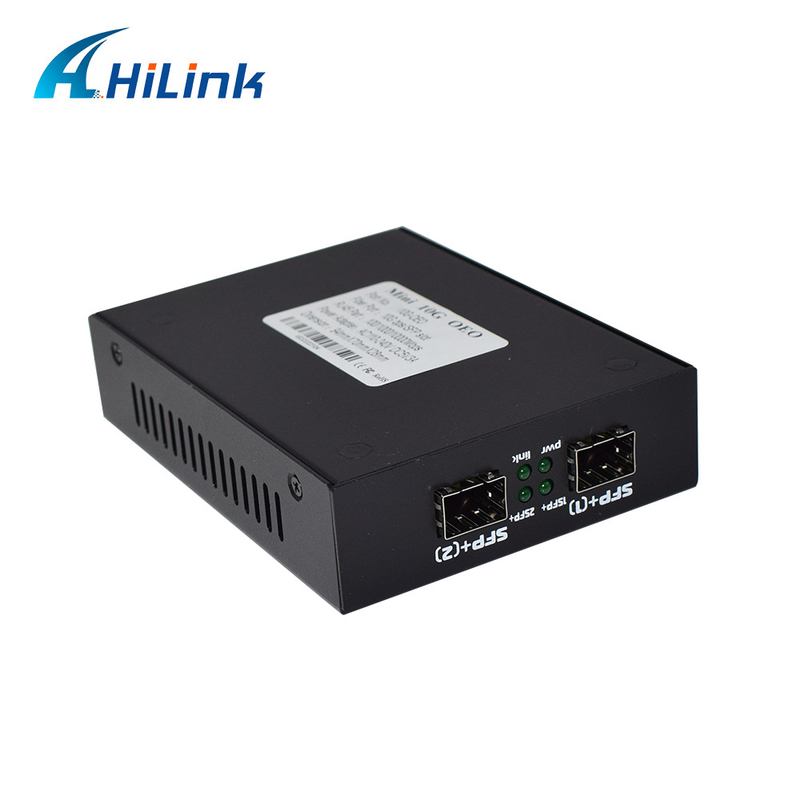

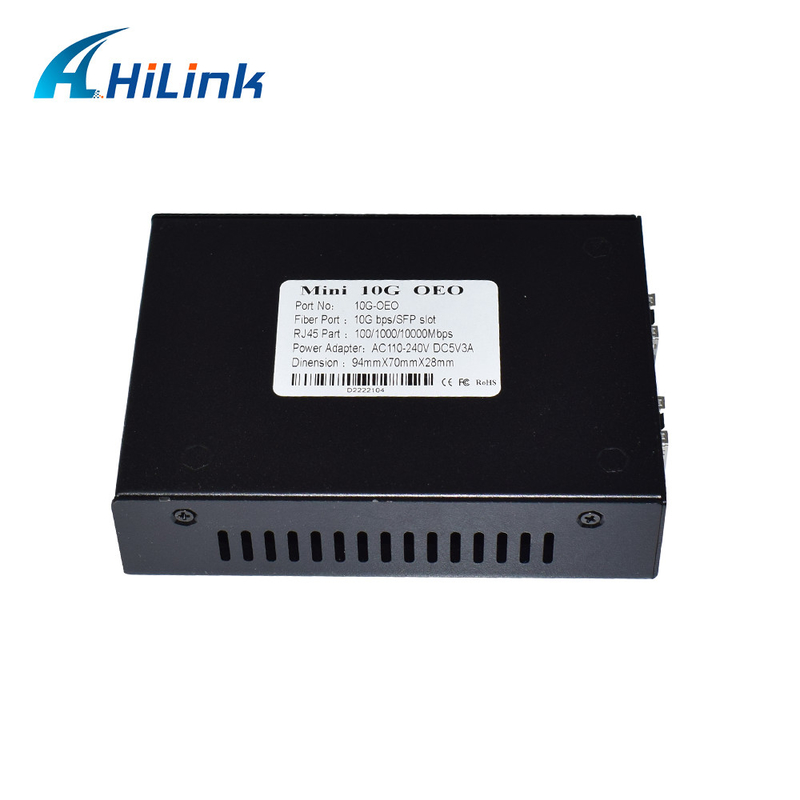

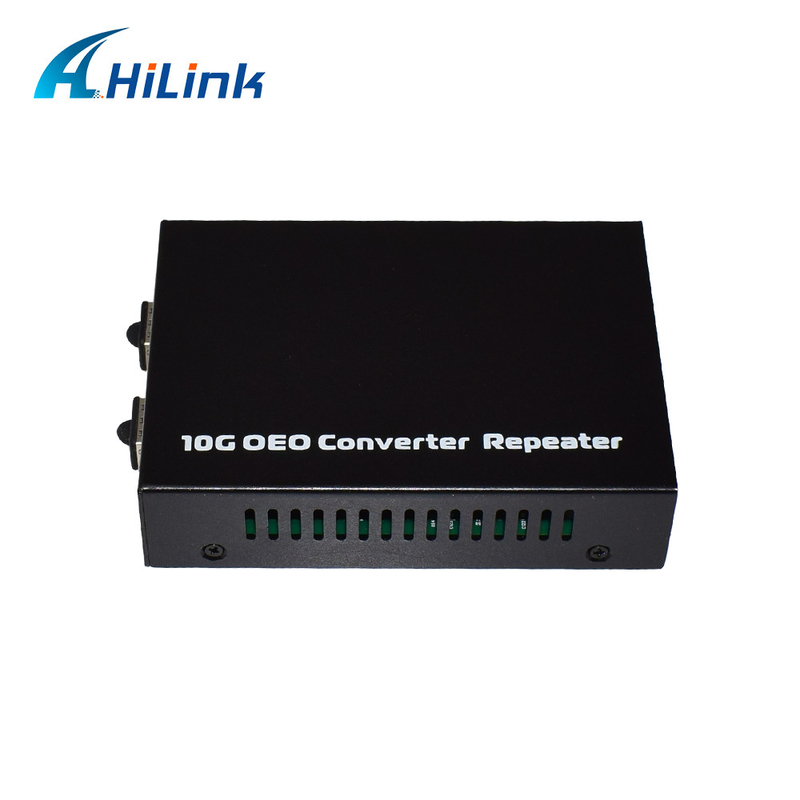

Mini 10G OEO Converter 10G SFP+ TO SFP+ Media Converter

for Long Haul Transmission



Product Description

Hilink's 10G SFP+ to SFP+ fiber to fiber converter is a fiber-to-fiber type 10Gbps device that acts not only as fiber optic media converter or as a fiber optic repeater for long-haul transmission, but is an all in one solution to get 10GE fiber network to be Re-Amplificated, Re-Shaped and Re-Timed. 3R Repeater / Extender / Media converter for all your 10G fiber network mode & wavelength conversion needs.



Features



* Supports connections up to 10Gbit/s data rate

* Functions as a fiber mode converter or fiber repeater for long distance transmission
* For use with SFP+ module and supports hot-plugging
* Transmission distances from 550m to 80km
* Available with internal or external power supply
* Can be installed into a media converter chassis
* 3R Repeater
* Support Jumbo Frame
* Transparent Transport and very low delay
* Support ITUT prescribed DWDM/CWDM wavelength
* Support hot plugging
* Support 2U Rack (16 channel) and standalone use
* Full State Led display
* Easy installation
* Connection between fiber to fiber 10Gbps equipment function as fiber mode converter, or as fiber repeater for long distance transmission



Performance Data

Technical Indexes

Equipment function

3R Repeater

Transmission Speed

8.5Gb/s-11.7Gb/s

Protocols

8.5G Fiber Channel

SONET OC-192, SDH STM-64 (9.95Gbps)

10G WAN (10Gbps)

10G LAN (10.31Gbps)

OTN OTU-2 (G.709) (10.70Gbps)

10G LAN with 255/237 FEC coding (11.09Gbps)

10G Fiber Channel (11.32Gbps)

10G POS

Interface Type

SFP+ to SFP+/XFP to XFP

Transmission Distance

SFP+ module: up to 80km

Maximum Packet Forwarding Rate

14,880,950/S

power requirement

Rack-mountable : AC 85 ~ 220V OR DC -48V

Standalone: AC 110~220V OR -48V OR 5V 2A

Power consumption: ≤4W

Work Environment

Operating Temp: 0~ 50 ℃

Storage Temp: -10~ 70 ℃

Humidity: 5%~90% ( non-condensing )

Dimension

30×100×140mm(external power)







Applications



Mini 10G OEO Converter 10G SFP+ TO SFP+ Media Converter For Long Haul Transmission 0







Mini 10G OEO Converter 10G SFP+ TO SFP+ Media Converter For Long Haul Transmission 1Mini 10G OEO Converter 10G SFP+ TO SFP+ Media Converter For Long Haul Transmission 2Mini 10G OEO Converter 10G SFP+ TO SFP+ Media Converter For Long Haul Transmission 3
