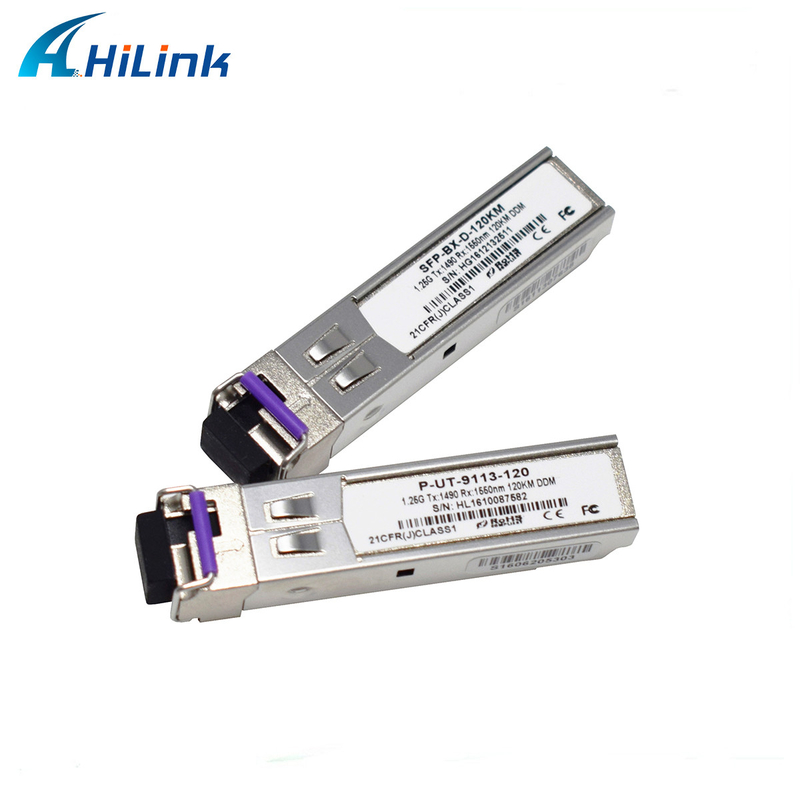

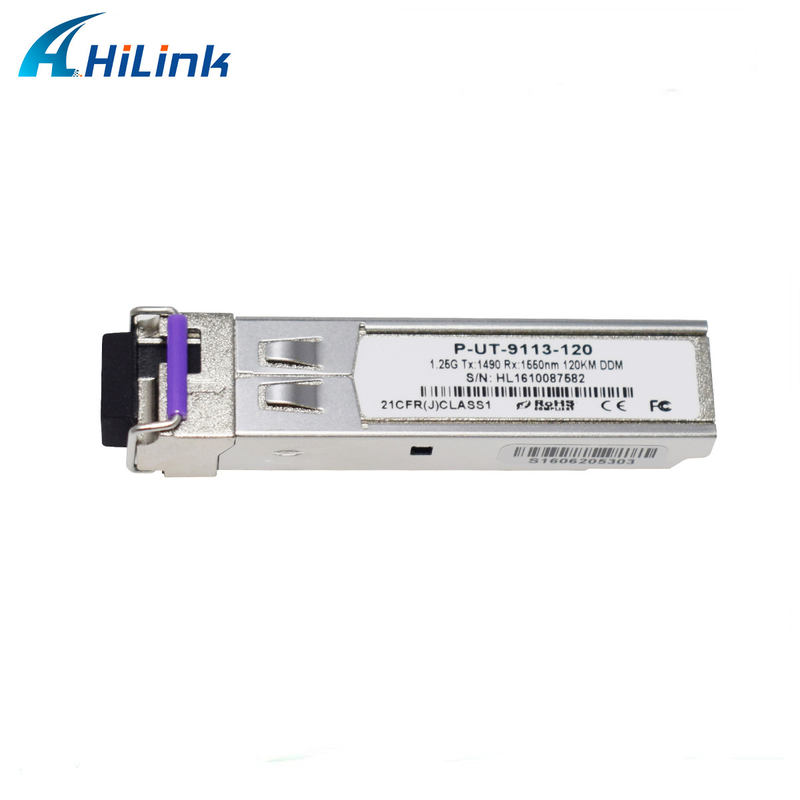

1.25G WDM SFP 120KM Tx1490nm Rx1550nm SC/LC Simplex DDM Optic Transceivers
Hilink Small Form Factor Pluggable (SFP) transceivers are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA). They simultaneously comply with Gigabit Ethernet as specified in IEEE STD 802.3 and 1x Fibre Channel as defined in FC-PI-2 Rev. 10.0 .They are RoHS compliant and lead-free.
Features
-
Hot-pluggable SFP footprint
-

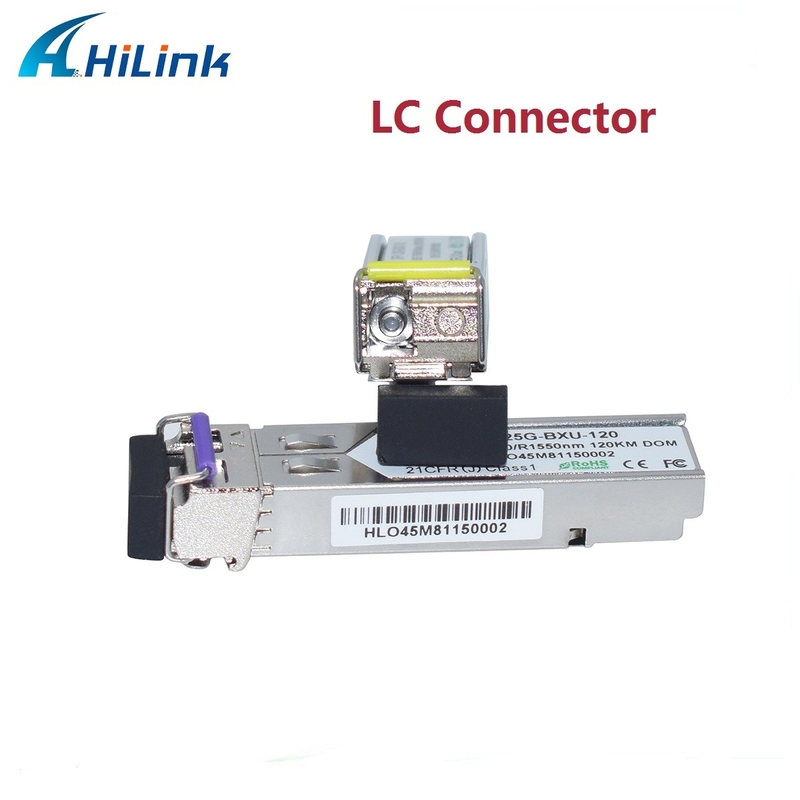

Single LC receptacle optical interface compliant
-
1490nm DFB laser transmitter ;
-
1550nm DFB laser transmitter
-
RoHS compliant and Lead Free
-
Up to 120km on 9/125um SMF
-
Metal enclosure for lower EMI
-
Single 3.3V power supply
-
Low power dissipation <1.2W
-
Commercial operating temperature range: 0°C to 70°C
Details
| Item No. |
WDM-SFPXX-120 |
Vendor Name |
Hilink |
| Form Type |
SFP |
Max Data Rate |
1.25Gbps |
| Wavelength |
1490/1550nm |
Max Cable Distance |
120KM |
| Interface |
LC/SC simplex |
Optical Components |
DFB |
| Cable Type |
SMF |
DOM Support |
Yes |
| TX Power |
0~5dBm |
Receiver Sensitivity |
<-28dBm |
| Commercial Temperature Range |
0 to 70°C (32 to 158°F) |
HTS-Harmonized Code |
8517706000 |
Hilink optical Transceiver 100% compatibility: Cisco, Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, D-link, Alcatel, Mikrotik, Finisar, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.
Applications
-
Gigabit Ethernet
-
1.06 Gb/s Fibre Channel
Hilink Advantage
1. Hilink establish in 2007,Specialize in this field with around 10-year experience.
2." Credit is the basis, quality is the first",all our products are new,we never use second-hand components.
3. Our products are compatible with Cisco,Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, Dlink, Alcatel, Riverstone,
Enterasys, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.
4. We provide 3 years warranty for all our products from the date of shipment.
5. All of our products get through CE,ROHS,FCC.
6. We also provide DWDM CWDM WDM with optical solutions.
