1.25G BIDI SFP 60KM SC/LC Simplex DDM WDM Transceiver Modules

Product Details:
Place of Origin: China
Brand Name: HILINK
Certification: CE FCC Rohs
Model Number: WDM-SFPXX-60
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Blister Packaging
Delivery Time: 3-5 Working Days
Payment Terms: T/T, Western Union, MoneyGram,Paypal
Supply Ability: 100PCS Per Day
  • Detail Information
  • Product Description

Detail Information

Wavelength: 1490/1550nm , 1310/1550nm, 1310/1490nm Data: 1.25Gbs
Distance: 60KM Package: SFP
Transmitter: DFB Receiver: PIN
High Light:

Single 3.3V power supply SFP Transceiver

,

SFP 60KM Fiber Transceiver Modules

,

SFP 60km Optical Transceiver Module

Product Description

1.25G BIDI SFP 60KM SC/LC Simplex DDM WDM Transceiver Modules

Hilink Small Form Factor Pluggable (SFP) transceivers are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA). They simultaneously comply with Gigabit Ethernet as specified in IEEE STD 802.3 and 1x Fibre Channel as defined in FC-PI-2 Rev. 10.0 .They are RoHS compliant and lead-free.





Features



  • Hot-pluggable SFP footprint

  • Wavelengths :   34/43 : Tx1310nm/Rx1490nm ; Tx1490nm/Rx1310nm

  •                                  35/53 : Tx1310nm/Rx1550nm ; Tx1550nm/Rx1310nm

  •                                  45/54 : Tx1490nm/Rx1550nm ; Tx1550nm/Rx1490nm

  • Single LC/SC receptacle optical interface compliant

  • 1490nm DFB laser transmitter

  • 1550nm DFB laser transmitter

  • 1310nm DFB laser transmitter

  • RoHS compliant and Lead Free

  • Up to 60km on 9/125um SMF

  • Metal enclosure for lower EMI

  • Single 3.3V power supply

  • Low power dissipation <600MW

  • Commercial operating temperature range: 0°C to 70°C

Details



Item No. WDM-SFPXX-60 Vendor Name Hilink
Form Type SFP Max Data Rate 1.25Gbps
Wavelength 1310/1490/1550nm Max Cable Distance 60KM
Interface LC/SC simplex Optical Components DFB
Cable Type SMF DOM Support Yes
TX Power -3~2dBm Receiver Sensitivity <-25dBm
Commercial Temperature Range 0 to 70°C (32 to 158°F) HTS-Harmonized Code 8517706000



Hilink optical Transceiver 100% compatibility: Cisco, Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, D-link, Alcatel, Mikrotik, Finisar, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.



Applications

  • Gigabit Ethernet

  • 1.06 Gb/s Fibre Channel


Details Photos

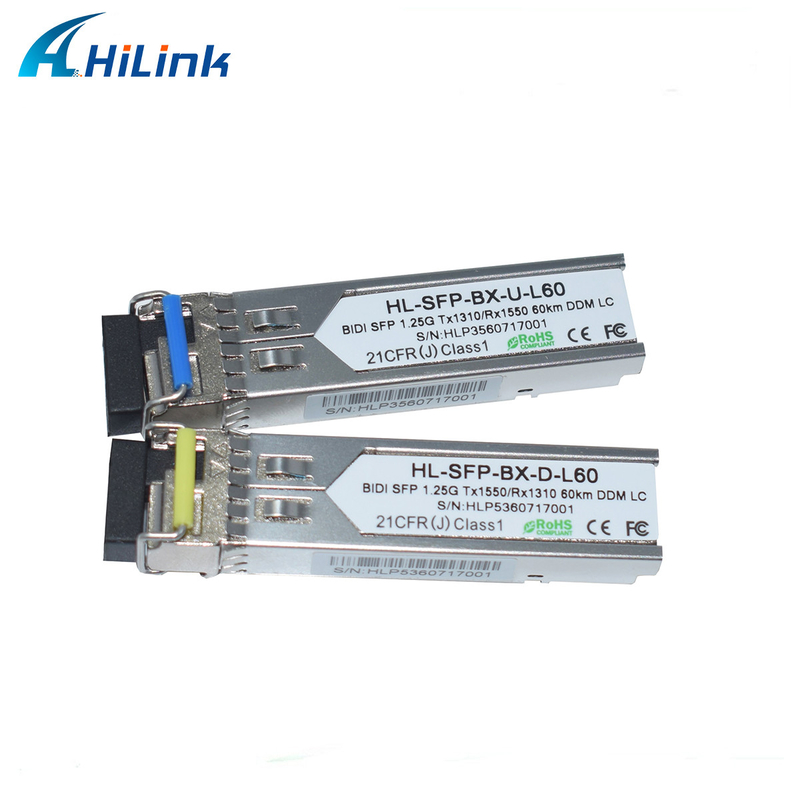

1.25G BIDI SFP 60KM SC/LC Simplex DDM WDM Transceiver Modules 0

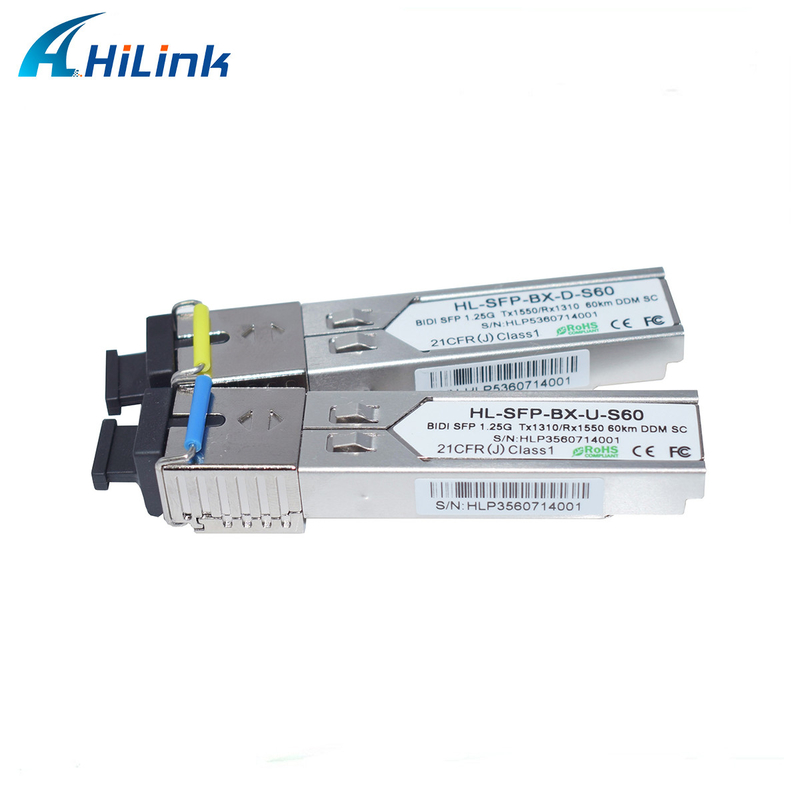

1.25G BIDI SFP 60KM SC/LC Simplex DDM WDM Transceiver Modules 1

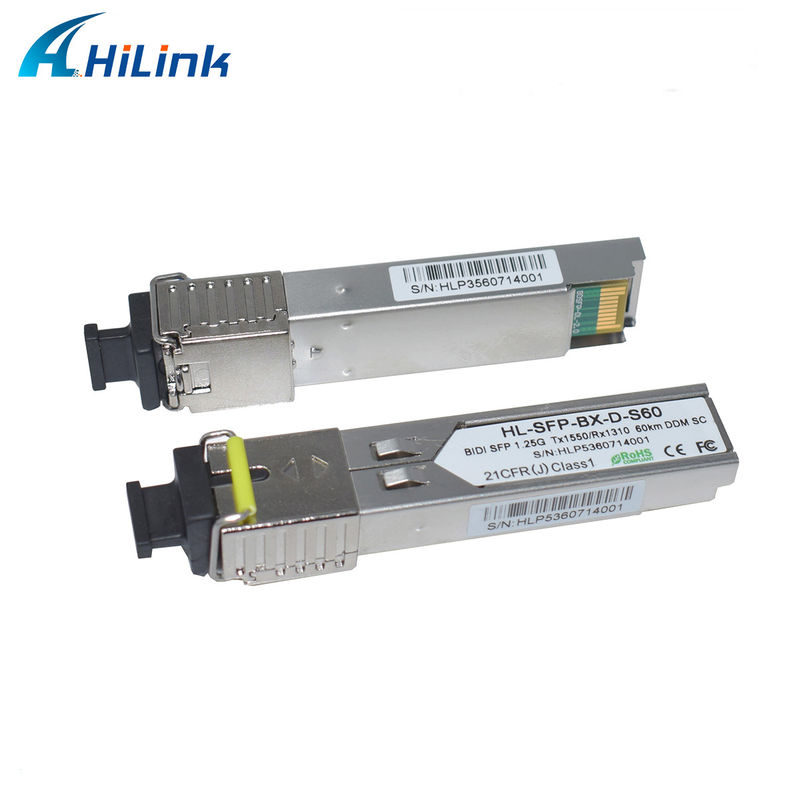

1.25G BIDI SFP 60KM SC/LC Simplex DDM WDM Transceiver Modules 2



Hilink Advantage

1. Hilink establish in 2007,Specialize in this field with around 10-year experience.
2." Credit is the basis, quality is the first",all our products are new,we never use second-hand components.
3. Our products are compatible with Cisco,Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, Dlink, Alcatel, Riverstone,
Enterasys, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.
4. We provide 3 years warranty for all our products from the date of shipment.
5. All of our products get through CE,ROHS,FCC.
6. We also provide DWDM CWDM WDM with optical solutions.


2015 OFC In The USA

3 Years warranty 10G SFP+ SR


Certificates

1.25G BIDI SFP 60KM SC/LC Simplex DDM WDM Transceiver Modules 4
1.25G BIDI SFP 60KM SC/LC Simplex DDM WDM Transceiver Modules 5
