Shenzhen HiLink Technology Co.,Ltd.

2x8CH DWDM MUX DEMUX 1U 19'' Rack LC/APC C43-C50 Channel DWDM Device Optical Equipment

Product Details:
Place of Origin: China
Brand Name: Hilink
Certification: CE FCC Rohs
Model Number: HL-DWDM MUX 8CH
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiation
Packaging Details: box & carton or customized package for 40ch AAWG DWDM Module .
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500/pcs/month
  • Detail Information
  • Product Description

Detail Information

Key Words: DWDM Mux Channel: 8 Channels
Package: 1U 19'' Racks Or ABS Box Optional Fiber Type: SMF-28e Or Customer Specified
Application: WDM Solution Warranty: 1 Year
High Light:

DWDM MUX DEMUX 2x8CH

,

Dense WDM System DWDM MUX DEMUX

Product Description

2x8CH DWDM MUX DEMUX 1U 19'' Rack LC/APC C43-C50 Channel DWDM Device Optical Equipment





General
        DWDM MUX/DEMUX reduce the cost of network Construction. With low-cost and compact dimension, it is mainly used in metropolitan area network and access layer, also be used to build networks.



Features

Low insertion loss

Low PDL

High channel isolation

Excellent environmental reliability

High Channel Isolation

Low Insertion Loss

Optical Path Epoxy Free

Telcordia 1221 Compliant

Ultra Low TDL

Wide Operating Temperature: -40~+85℃



Applications

Dense WDM System

PON Networks

CATV Links





Performance Specifications

1×N DWDM Mux/Demux Module

Parameters
Channel Space (GHz) 100 200
Channel Number 1*4 1*8 1*16 1*4 1*8 1*16
Center Wavelength (nm) ITU Grid
Center Wavelength Accuracy (nm) ± 0.05 ± 0.1
Channel Passband (@-0.5dB) (nm) 0.22 0.5
Fiber Type SMF-28e with 900um loose tube or customer specified
IL (dB) 1.8 2.3 3.0 1.7 2.9 3.1
Passband Ripple (dB) 0.35 0.4 0.5 0.35 0.4 0.5
Isolation (dB) Adjacent Channel 25 28
Non-Adjacent Channel 40
PDL (dB) 0.2
PMD (ps) 0.1
RL (dB) 45
Directivity (dB) 50
Maximum Optical Power (mw) 500
Operating Temperature (°C) -40~85
Storage Temperature (°C) -40~85
BOX Package (mm) 100*80*10 or 140*115*18
LGX Package 1U,2U
19’’ Rack mount Package 1U



above specification are for device without connector.

Order details

2~44Channels available.
Com port: simplex or duplex.
Fiber connector: LC/SC or other.
Package: ABS plastic box, LGX metal cassette box, 19inch rack mount.
DWDM Solutions and DWDM SFP/XFP.

Min.Order Quantity: 1pcs is also okay for sample to satisfy your need.



DWDM Mux/Demux Solution

2x8CH DWDM MUX DEMUX 1U 19'' Rack  LC/APC C43-C50 Channel DWDM Device Optical Equipment



DWDM Mux/demux with EDFA

2x8CH DWDM MUX DEMUX 1U 19'' Rack  LC/APC C43-C50 Channel DWDM Device Optical Equipment

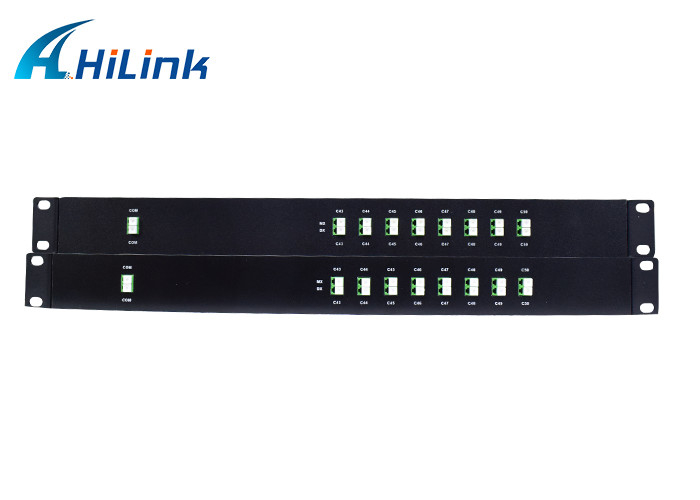

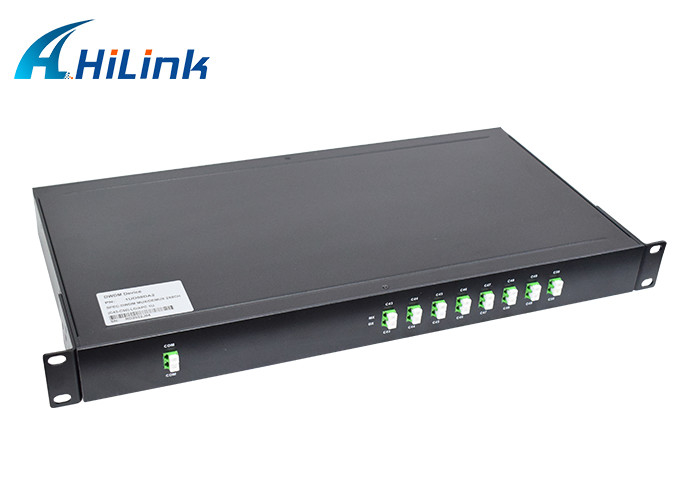

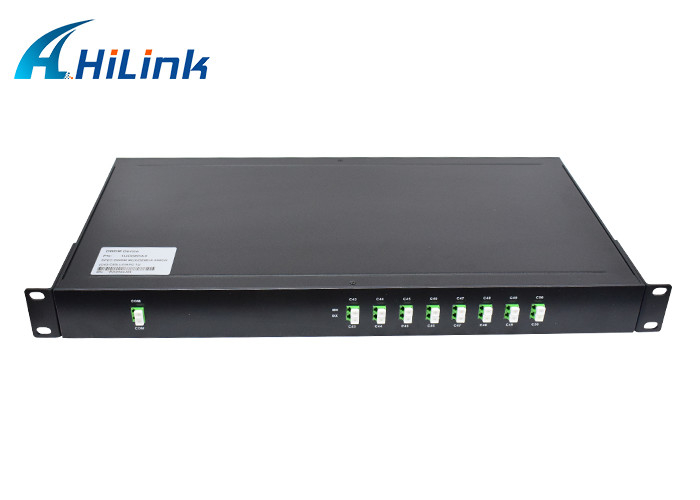

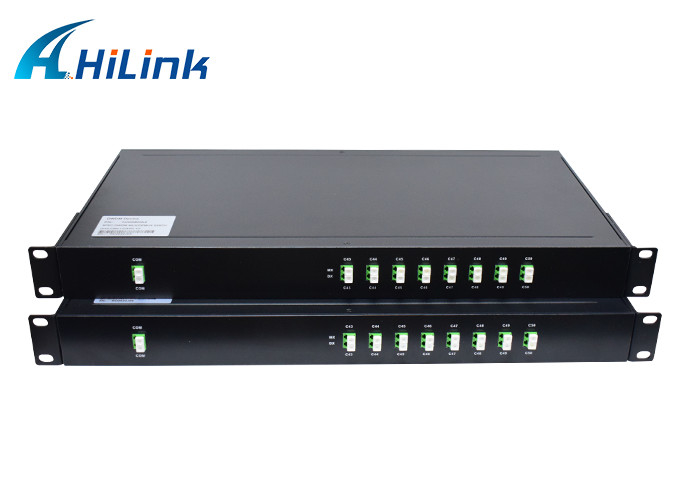

Product picture show

2x8CH DWDM MUX DEMUX 1U 19'' Rack  LC/APC C43-C50 Channel DWDM Device Optical Equipment2x8CH DWDM MUX DEMUX 1U 19'' Rack  LC/APC C43-C50 Channel DWDM Device Optical Equipment2x8CH DWDM MUX DEMUX 1U 19'' Rack  LC/APC C43-C50 Channel DWDM Device Optical Equipment2x8CH DWDM MUX DEMUX 1U 19'' Rack  LC/APC C43-C50 Channel DWDM Device Optical Equipment



2x8CH DWDM MUX DEMUX 1U 19'' Rack  LC/APC C43-C50 Channel DWDM Device Optical Equipment

As we have various kinds of products,if you can't find the correct item you need,please send us inquiry.We will follow up shortly.

FAQ:



Q: Do you sell second-hand products?

ANo.All our products are brand new,we never use secont-hand components.



Q: Do your products come with warranty?

A: Yes,We provide 3 years warranty for all our products from the date of shipment.



Q: How to place an order?

A:1> Order details confirmed,please tell us the model and quantity you need.
    2> Proforma Invoice confirmed, the order will be arranged upon receipt of your payment.
    3> Confirm and ship the goods, then tracking number will be sent to you promptly.
    4> We will help to track your goods until you receive them safely.





As we have various kinds of products,if you can't find the correct item you need,please send us inquiry.We will follow up shortly.
