1U 8CH DWDM MUX DEMUX 8 channel HL-DW-MUX-8CH LC/APC

Product Details:
Place of Origin: China
Brand Name: Hilink
Certification: CE FCC Rohs
Model Number: HL-1U-DWDM-MUX-8CH
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiation
Packaging Details: box & carton or customized package for 40ch AAWG DWDM Module .
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500/pcs/month
  • Detail Information
  • Product Description

Detail Information

Key Words: DWDM Mux Channel: 8 Channels
Package: 1U 19'' Racks Or ABS Box Optional Fiber Type: SMF-28e Or Customer Specified
Application: WDM Solution Warranty: 1 Year
High Light:

WDM Solution 8 Channels DWDM Mux

,

High Channel Isolation DWDM MUX

Product Description

1U 8CH DWDM MUX DEMUX 8 channel HL-DW-MUX-8CH LC/APC





General
        DWDM MUX/DEMUX reduce the cost of network Construction. With low-cost and compact dimension, it is mainly used in metropolitan area network and access layer, also be used to build networks.



Features

Low insertion loss

Low PDL

High channel isolation

Excellent environmental reliability

High Channel Isolation

Low Insertion Loss

Optical Path Epoxy Free

Telcordia 1221 Compliant

Ultra Low TDL

Wide Operating Temperature: -40~+85℃



Applications

Dense WDM System

PON Networks

CATV Links





Performance Specifications

1×N DWDM Mux/Demux Module

Parameters
Channel Space (GHz) 100 200
Channel Number 1*4 1*8 1*16 1*4 1*8 1*16
Center Wavelength (nm) ITU Grid
Center Wavelength Accuracy (nm) ± 0.05 ± 0.1
Channel Passband (@-0.5dB) (nm) 0.22 0.5
Fiber Type SMF-28e with 900um loose tube or customer specified
IL (dB) 1.8 2.3 3.0 1.7 2.9 3.1
Passband Ripple (dB) 0.35 0.4 0.5 0.35 0.4 0.5
Isolation (dB) Adjacent Channel 25 28
Non-Adjacent Channel 40
PDL (dB) 0.2
PMD (ps) 0.1
RL (dB) 45
Directivity (dB) 50
Maximum Optical Power (mw) 500
Operating Temperature (°C) -40~85
Storage Temperature (°C) -40~85
BOX Package (mm) 100*80*10 or 140*115*18
LGX Package 1U,2U
19’’ Rack mount Package 1U



above specification are for device without connector.

Order details

2~44Channels available.
Com port: simplex or duplex.
Fiber connector: LC/SC or other.
Package: ABS plastic box, LGX metal cassette box, 19inch rack mount.
DWDM Solutions and DWDM SFP/XFP.

Min.Order Quantity: 1pcs is also okay for sample to satisfy your need.



DWDM Mux/Demux Solution

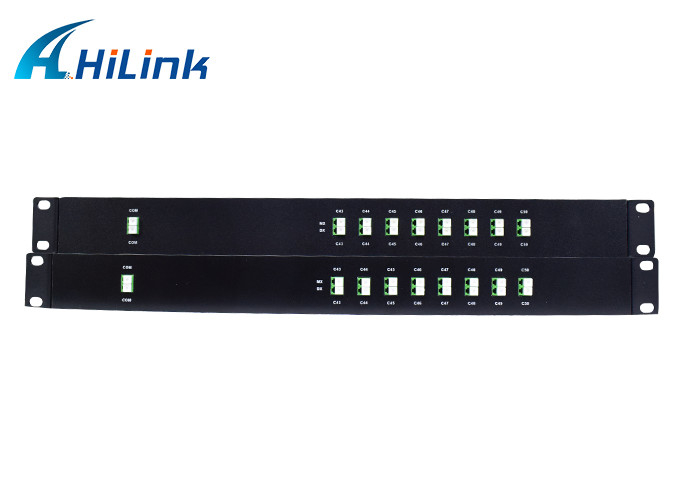

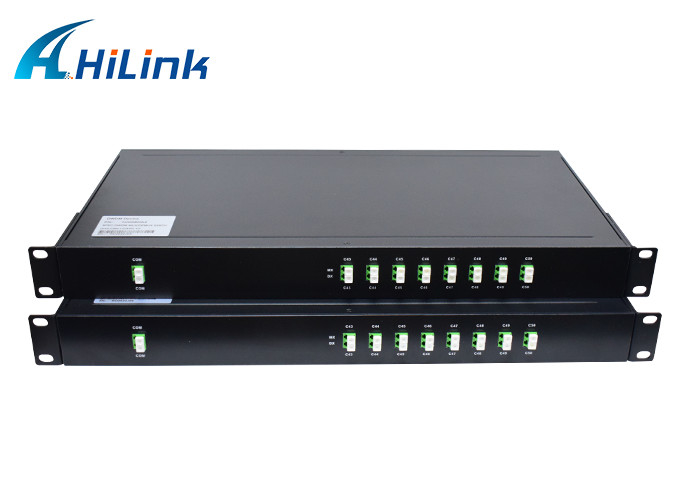

2x8CH DWDM MUX DEMUX 1U 19'' Rack  LC/APC C43-C50 Channel DWDM Device Optical Equipment



DWDM Mux/demux with EDFA

2x8CH DWDM MUX DEMUX 1U 19'' Rack  LC/APC C43-C50 Channel DWDM Device Optical Equipment

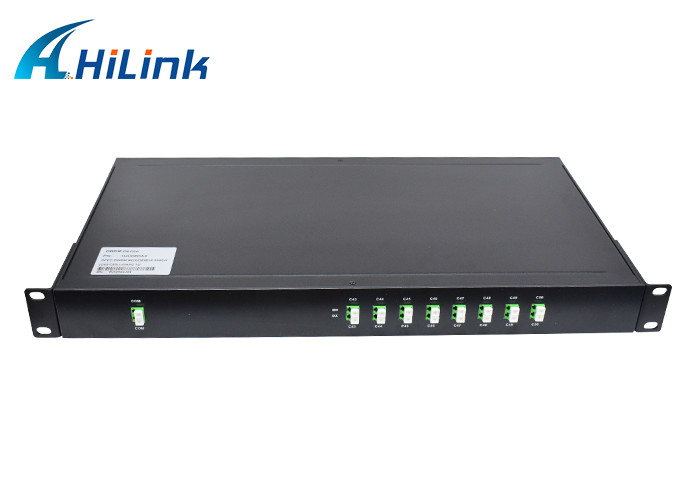

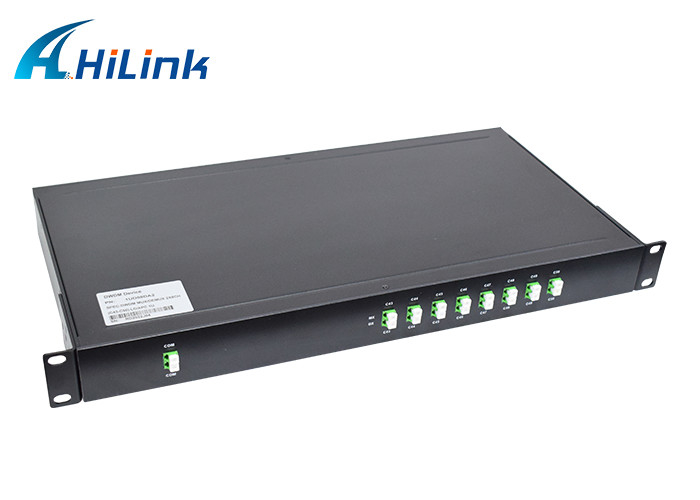

Product picture show

1U 8CH DWDM MUX DEMUX 8 channel HL-DW-MUX-8CH LC/APC 21U 8CH DWDM MUX DEMUX 8 channel HL-DW-MUX-8CH LC/APC 3

2x8CH DWDM MUX DEMUX 1U 19'' Rack  LC/APC C43-C50 Channel DWDM Device Optical Equipment2x8CH DWDM MUX DEMUX 1U 19'' Rack  LC/APC C43-C50 Channel DWDM Device Optical Equipment1U 8CH DWDM MUX DEMUX 8 channel HL-DW-MUX-8CH LC/APC 6



2x8CH DWDM MUX DEMUX 1U 19'' Rack  LC/APC C43-C50 Channel DWDM Device Optical Equipment







1U 8CH DWDM MUX DEMUX 8 channel HL-DW-MUX-8CH LC/APC



As we have various kinds of products,if you can't find the correct item you need,please send us inquiry.We will follow up shortly.
