Hilink HW Compatible SFP Fiber Optic Module 1.25G SFP BIDI 20km LC Connector



  Small Form Factor Pluggable (SFP) transceivers are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA). They simultaneously comply with Gigabit Ethernet as specified in IEEE STD 802.3 and 1x Fibre Channel as defined in FC-PI-2 Rev. 10.0 .They are RoHS compliant and lead-free.

Product Features



         Single LC receptacle optical interface compliant

         Hot-pluggable SFP footprint

        1310nm FP laser transmitter

         RoHS compliant and Lead Free

         Up to 20km on 9/125um SMF

         Metal enclosure for lower EMI

        Single 3.3V power supply

        Low power dissipation <600mW

        Commercial operating temperature range: 0°C to 70°C



Application



        Gigabit Ethernet

       1.06 Gb/s Fibre Channel



Optical Charactristics



III. Electrical Characteristics (TOP=25°C, Vcc=3.3Volts)
Parameter	Symbol	Min	Typ	Max		Unit	Ref.
Supply Voltage	Vcc	3.00		3.60		V
Supply Current	Icc		180	300		mA
Transmitter
Input differential impedance	Rin		100			Ω	2
Single ended data input swing	Vin, pp	250		1200		mV
Transmit Disable Voltage	VD	Vcc – 1.3		Vcc		V
Transmit Enable Voltage	VEN	Vee		Vee+ 0.8		V
Transmit Disable Assert Time				10		us
Receiver
Single ended data output swing	Vout, pp	300	400	800		mV	3
Data output rise time	tr			300		ps	4
Data output fall time	tf			300		ps	4
LOS Fault	VLOS fault	Vcc – 0.5		VccHOST		V	5
LOS Normal	VLOS norm	Vee		Vee+0.5		V	5
Deterministic Jitter Contribution	RXΔDJ			80		ps	6
Total Jitter Contribution	RXΔTJ			122.4		ps



Notes:

• Non condensing.
• AC coupled.
• Into 100 ohm differential termination.
• 20 – 80 %
• LOS is LVTTL. Logic 0 indicates normal operation; logic 1 indicates no signal detected.
• Measured with DJ-free data input signal. In actual application, output DJ will be the sum of input DJ and ΔDJ.

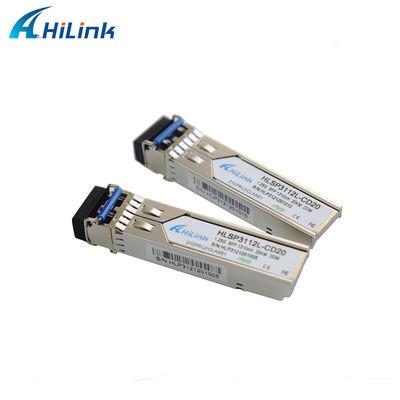

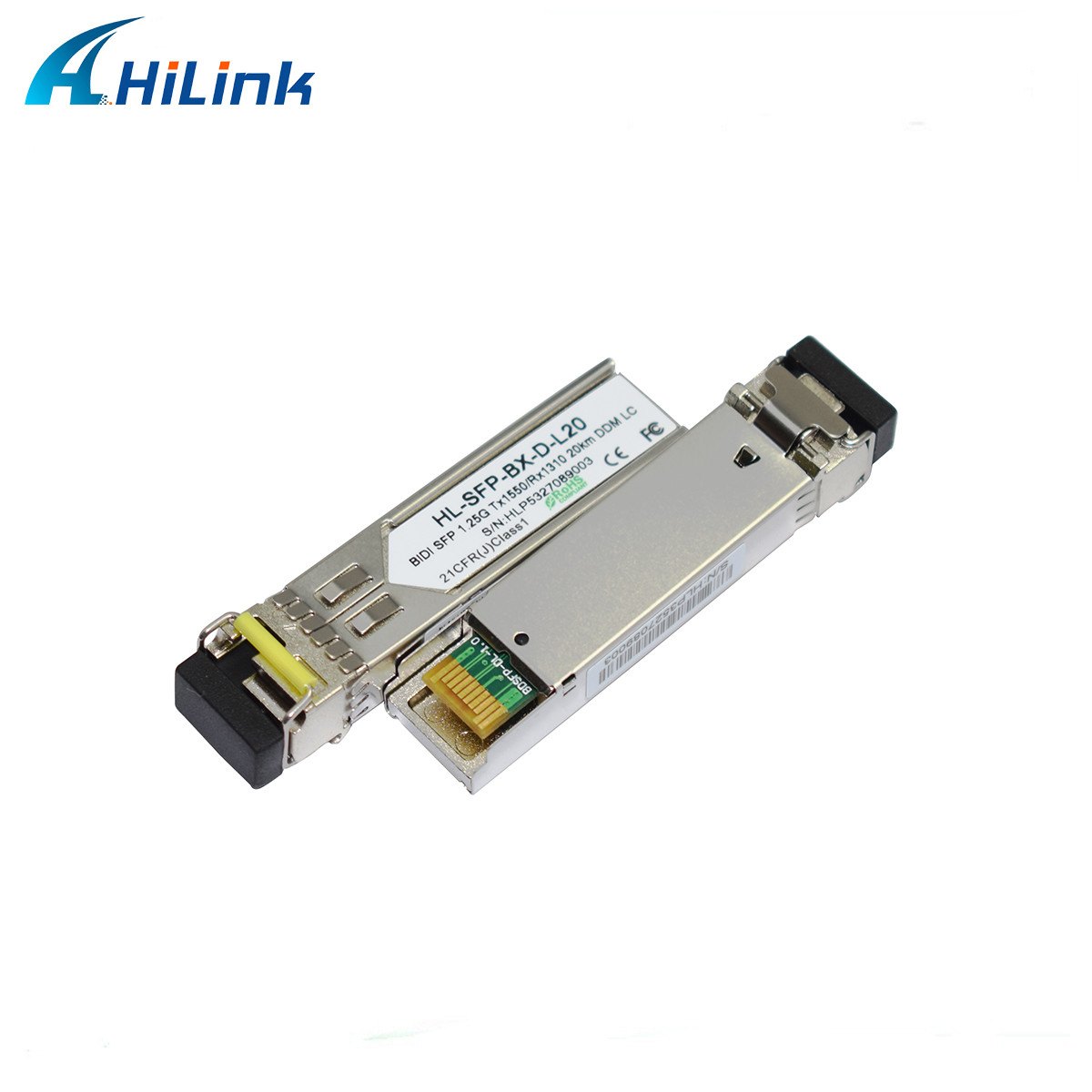

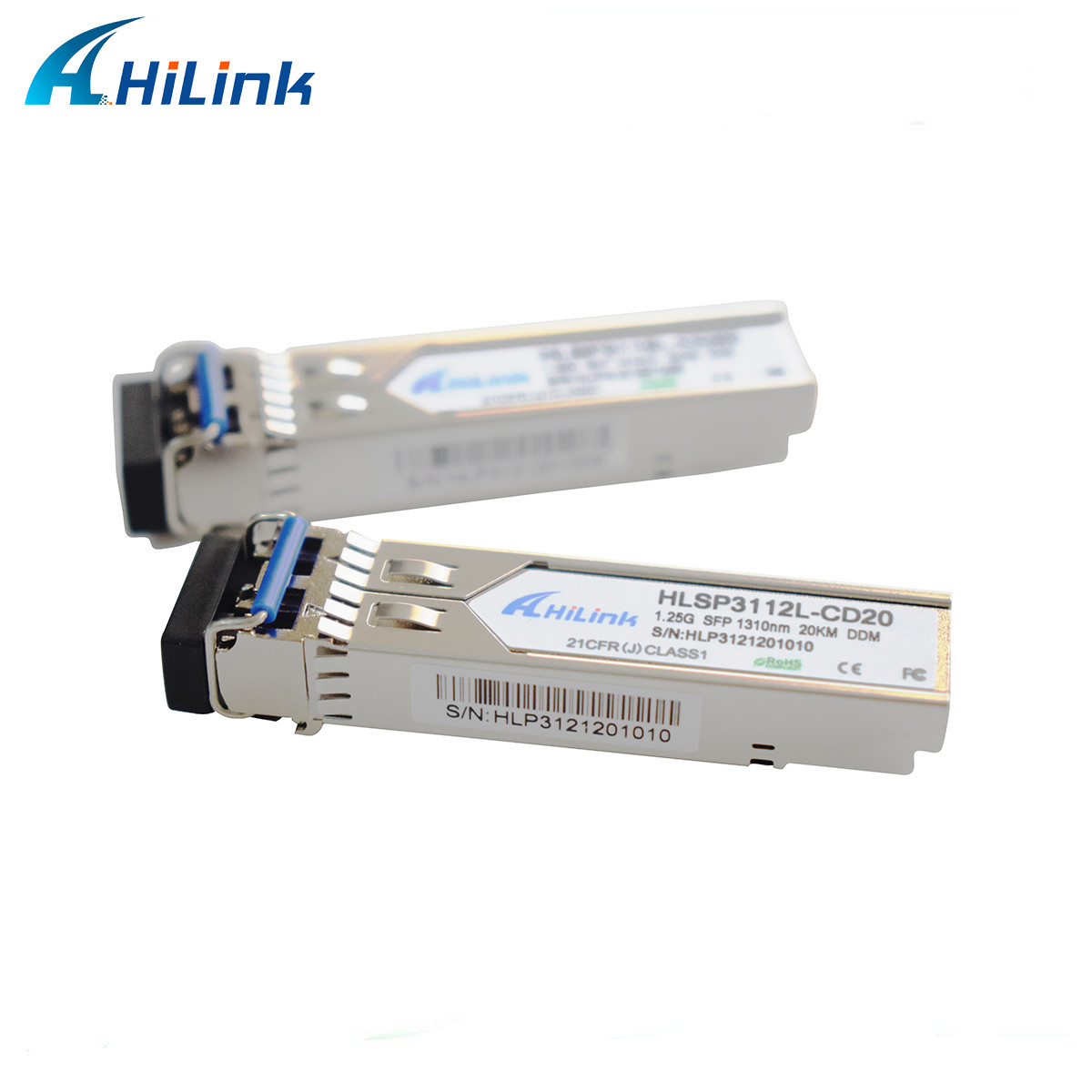

Real Picture

OEM/ODM order is available
