Shenzhen HiLink Technology Co.,Ltd.

20KM SC Fiber Media Converter 2x10/100M Tx To 1x 100M Fx Single Mode Single Fiber

Product Details:
Place of Origin: China
Brand Name: Hilink
Certification: CE FCC Rohs
Model Number: HL-MC-SC-SS
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiation
Packaging Details: Plastic packaging, Carton
Payment Terms: T/T, Western Union, MoneyGram,Paypal
Supply Ability: 2000PCS/month
  • Detail Information
  • Product Description

Detail Information

Product Name: 2* 10/100M Tx To 1* 100M Fx Fiber Media Converter Wavelength: 1310nm
Fiber Mode: Single Mode Reach: 20KM
Ports: 2 RJ45 + 1 SC Fiber Power Supply: External Adapter
High Light:

20KM SC fiber media converter

,

1310nm sc fiber media converter

,

SM SC Media Converter

Product Description

2* 10/100M Tx to 1* 100M Fx Single Mode Single Fiber 20KM SC Media Converter





Product Description



Hilink's 10/100Mbps Single Fiber Media Converter provides an easy and economical solution to upgrade a RJ45 copper based network to fiber optic to extend the signal reach. 10/100M SC Media Converter Single Fiber 1310/1550nm 20KM WDM technology make single mode fiber max reach to 25KM via single fiber.The plug-and-play design enables a quick and easy installation.



Item No. HL-MC-SC-SS Vendor Name Hilink
Wavelength 1310nm Max Cable Distance 20KM
Interface 2 RJ45 + SC Cable Type Single Mode
Cable Count SMF Customization Supported

Features



* Half or full duplex auto-negotiation.

* 10/100 Mbps auto-negotiation for copper port.

* Auto MDI/MDI-X on copper port.

* Plug-and-play installation.

* Extend network distance up to 25KM.

* SC/FC/ST fiber port optional

* External power supply.

* 6 Easy-to-view LED Indicators

* It can be mounted in 14slot media converter chassis





Applications



* Local Area Networks (LAN)

* Enterprise Networks

* Campus Networks

* Fiber to the Building (FTTB)

* Fiber to the Curb (FTTC)

* Point-to-point fiber networks



Details Images

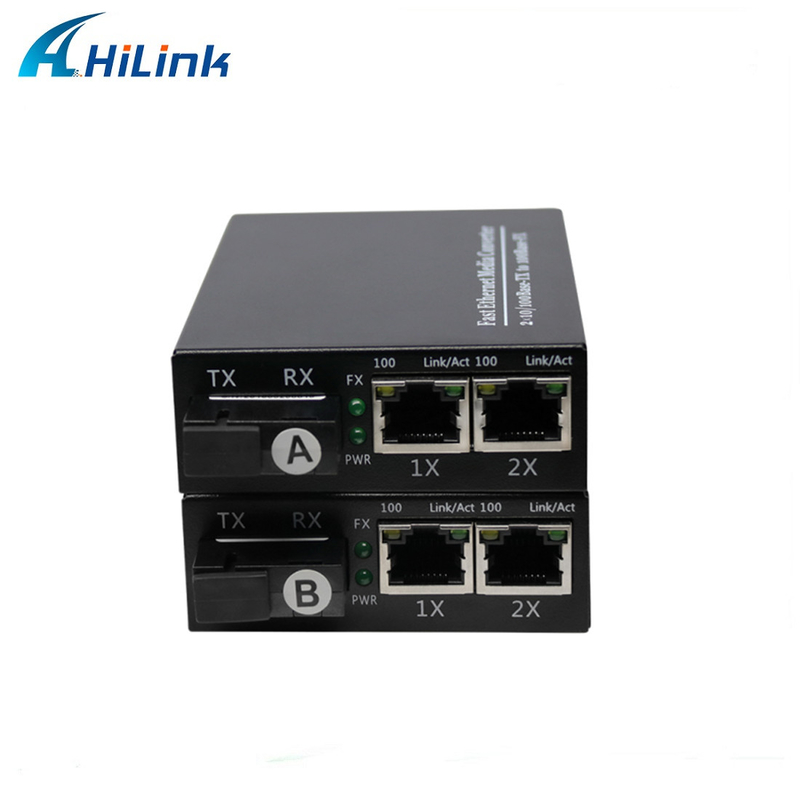

20KM SC Fiber Media Converter 2x10/100M Tx To 1x 100M Fx Single Mode Single Fiber 020KM SC Fiber Media Converter 2x10/100M Tx To 1x 100M Fx Single Mode Single Fiber 1





Hilink Advantages



1. Hilink ,a professional manufacturer established in 2007,Specialize in optical network communications with over 10 years experience.
2." Credit is the basis, quality is the first",all our products are new,we never use second-hand components.
3. Our optical transceivers are compatible with Cisco,Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, Dlink, Alcatel, Riverstone,
Enterasys, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc
.
4. We provide 3 years warranty for all our fiber optical products from the date of shipment.
5. All of our QSFP, QSFP28, QSFP56, QSFP-DD, CWDM/DWDM/Bidi SFP/SFP+/XFP, AOC/DAC products pass CE,ROHS,FCC.
6. We also provide DWDM CWDM WDM optical solutions.

FAQ


1. Can I have a sample order? What is your MOQ?
Sample order is supported for testing the quality of goods. 1 piece is the MOQ.
Mixed samples are acceptable.


2. What is the lead time?

1-3 days after receiving the payment for the regular goods we normally keeping in stock;
For large quantity, you'll get support and details from your sales representative of HilinkTech.


3. What is the shipping way and how long is the period?

DHL, UPS, FedEx or TNT will be taken according to your option. The arrival normally takes 3-5 days .


4. What is your warranty?

3-year warranty.You'll get technique support, replacement or refund.
