10G CWDM SFP Transceiver Module 1410 - 1610nm 10GBASE 80KM LC/UPC Connector

Product Details:
Place of Origin: China
Brand Name: HILINK
Certification: CE FCC Rohs
Model Number: HL-CW-SFP-ZRxx
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiation
Packaging Details: Plastic case,Carton
Delivery Time: 7
Payment Terms: L/C, T/T, Western Union, MoneyGram,Paypal
Supply Ability: 999PCS/month
  • Detail Information
  • Product Description

Detail Information

Name: 10G CWDM SFP+ Transceiver Distance:: 80KM
Wavelength: 1470-1610nm Connector Type: LC/UPC Connector
Type: SMF Application: FTTX
High Light:

10G SFP Transceiver Module

,

80KM SFP Transceiver Module

,

CWDM 10G SFP Transceiver

Product Description

10G CWDM SFP 1410-1610nm 10GBASE 80KM SFP Transceiver





General

         HILINK CWDM 10Gbps SFP+ transceiver is designed to transmit and receive optical data over single mode optical fiber for link length 40km. This transceiver consists of two sections: The transmitter section incorporates a CWDM EML laser. And the receiver section consists of a APD photodiode integrated with a TIA.

       All modules satisfy class I laser safety requirements. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472, which allows real-time access to device operating parameters such as transceiver temperature, laser bias current, transmitted optical power, received optical power and transceiver supply voltage.



Product Feature

Supports 9.95 to 11.3Gb/s bit rates

Duplex LC connector

Hot pluggable SFP+

Cooled 1470nm~1610nm EML transmitter, APD Receiver

Applicable for 80km SMF connection

Operating case temperature:

Commerical:0 to 70 °C

Industrial:-40 to 80 °C



Application

10Gbps CWDM Optical systems

LTE systems

Other Optical link



CWDM Transceiver

CWDM SFP
CWDM SFP 1G/2G (1270nm-1610nm) 40/80/120km CWDM SFP 0-70℃
CWDM SFP 4.25G (1270nm-1610nm) 40km& 80km CWDM SFP 0-70℃
CWDM SFP+(10G)
CWDM SFP 10G LR (1270-1330nm) 10km CWDM SFP+ 0-70℃
CWDM SFP ER (1470-1610nm) 40km CWDM SFP+ 0-70℃
CWDM SFP ZR (1470-1610nm) 80km CWDM SFP+ 0-70℃

Product Picture Show

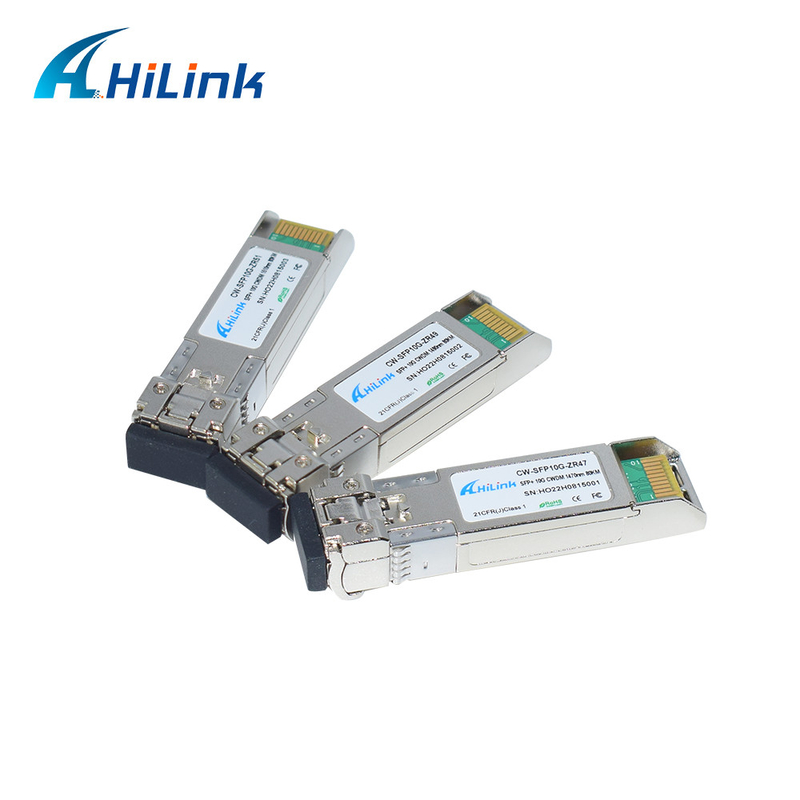

10G CWDM SFP Transceiver Module 1410 - 1610nm 10GBASE 80KM LC/UPC Connector 0

Optical Characteristics (TOP(C) = 0 to 70 ℃, TOP(I) =-40 to 80 ℃,VCC = 3.13 to 3.47 V)

Parameter Symbol Min. Typ Max. Unit Note
Transmitter
Operating Wavelength λ λ-7.5nm λ λ+7.5nm nm 1
Ave. output power (Enabled) PAVE 0   4 dBm 2
Side-Mode Suppression Ratio SMSR 30     dB
Extinction Ratio ER 9     dB
RMSspectral width Δλ     1 nm
Rise/Fall time (20%~80%) Tr/Tf     50 ps
Dispersion penalty TDP     3 dB
Relative Intensity Noise RIN     -128 dB/Hz
Output Optical Eye Compliant with IEEE 0802.3ae
Receiver
Operating Wavelength λ 1260   1620 nm
Receiver Sensitivity PSEN1     -24 dBm 3
Sensitivityover 80Km fiber PSEN2     -20 dBm 3
Overload PAVE     -7 dBm
LOS Assert Pa -35     dBm
LOS De-assert Pd     -26 dBm
LOS Hysteresis Pd-Pa 0.5     dB


Notes:

1.The wavelength λ=1470nm~1610nm, Total 8 wavelengths,20nm spacing

2. Measured at 10.3125b/s with PRBS 231 – 1 NRZ test pattern.

3.Under the ER worst =9, measured at 10.3125 Gb/s with PRBS 231 - 1 NRZ test pattern for BER < 1x10-12





Package Dimensions

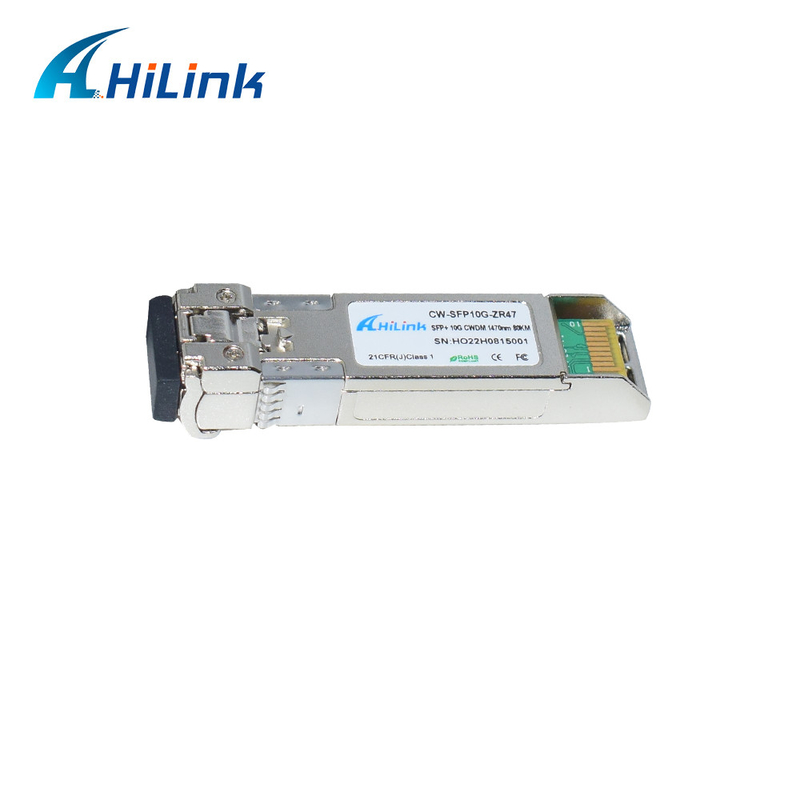

10G CWDM SFP Transceiver Module 1410 - 1610nm 10GBASE 80KM LC/UPC Connector 1
