Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | HILINK |
| Certification: | CE FCC RoHS |
| Model Number: | HL-DAC-40G-4SFP-CU-2m |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1pc |
| Price: | Negotiable |
| Delivery Time: | 1~4working days |
|
Detail Information |
|||
| Key Words: | 7ft QSFP+ To 4 SFP+ DAC Direct Attach Cable | Length: | 2m |
|---|---|---|---|
| Cable Type: | DAC | Form Factor: | QSFP+ |
| Cable Color: | Black | Warranty: | 3-year Warranty |
| High Light: | 30/28 AWG Direct Attach Copper Cable,SFP+ DAC Direct Attach Copper Cable,40G 2M Direct Attach Copper Cable |
||
Product Description

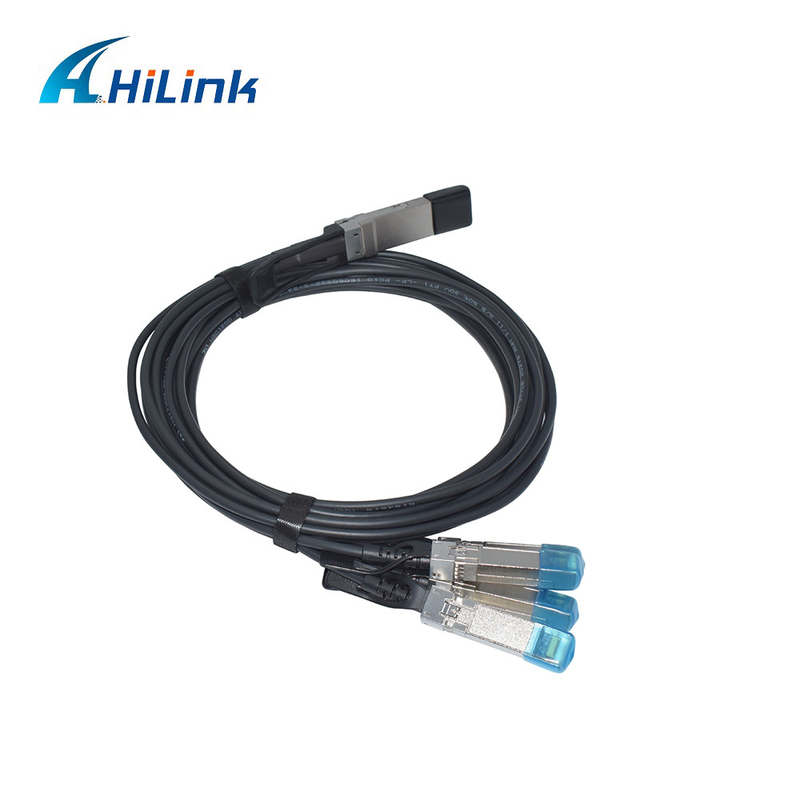

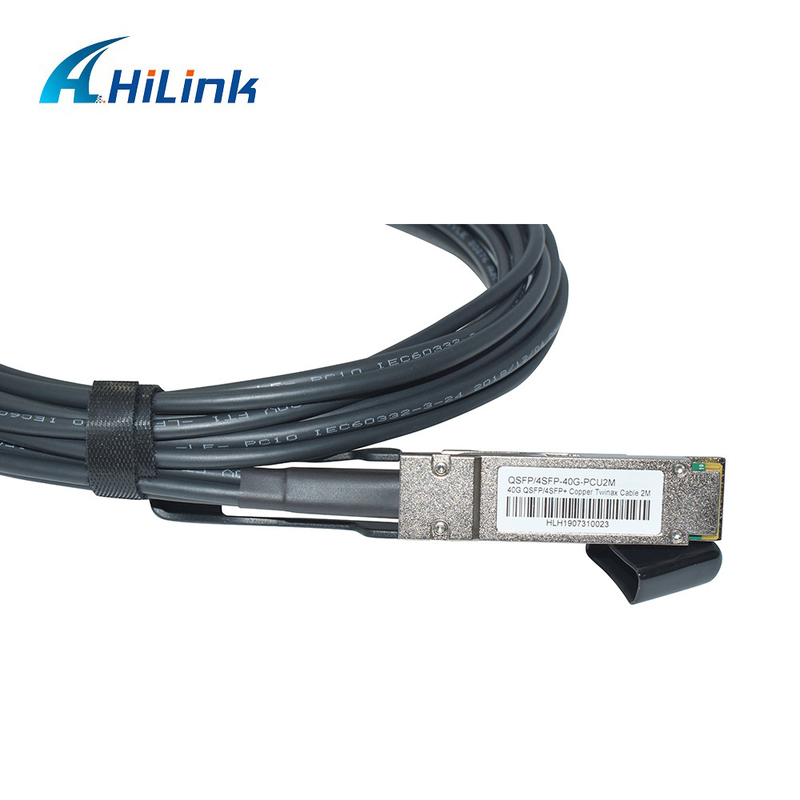

7ft QSFP+ to 4 SFP+ DAC Direct Attach Cable QSFP+ 40G Passive Copper Cable 2M
General Description
The Quad Small Form-factor Pluggable Plus (hereafter referred to as QSFP+) solution is designed for high-density applications. The hot-pluggable transceiver integrates 4 transmitting and 4 receiving channels. Hilink QSFP+ Direct Attach Cables are compliant with the SFF-8436 specifications. SFP+ Direct Attach Cables are compliant with the SFF-8431, SFF-8432 and SFF-8472 specifications. Various choices of wire gauge are available from 30 to 24 AWG with various choices of cable length (up to 7m).
| Length ( M ) | Cable ( AWG ) |
| 1 | 30/28 |
| 2 | 30/28 |
| 3 | 30/28 |
| 4 | 28 |
| 5 | 28/24 |
| 6 | 24 |
| 7 | 24 |
Features
• Connector 1: 40G QSFP+
• Connector 2: 4 x 10GSFP+
• Cable Type: DAC Cable
• Hybrid cable conforms to the Small Form Factor SFF-8436 and SFF-8431
• Support for multi-gigabit data rates :1.0 Gbps - 10.3125 Gbps (per channel)
• Maximum aggregate data rate: 41.25 Gbps (4 x 10.3125Gbit/s)
• Hybrid cable link length up to 5m (passive limiting)
• High-Density QSFP 38-PIN and 4x SFP 20-PIN Connector
• Power Supply :+3.3V
• Low power consumption: 0.02 W (typ.)
• Temperature Range: 0~ 70 °C
Applications
• 40G QSFP+ to 4×10SFP+
• 10G/40Gigabit Ethernet
• InfiniBand SDR, DDR, QDR
• Switches, Routers, and HBAs
• Data Centers
• Fibre Channel
Details Images
Hilink Advantages
1. Hilink ,a professional manufacturer established in 2007,Specialize in optical network communications with over 10 years experience.
2." Credit is the basis, quality is the first",all our products are new,we never use second-hand components.
3. Our optical transceivers are compatible with Cisco,Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, Dlink, Alcatel, Riverstone,
Enterasys, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.
4. We provide 3 years warranty for all our fiber optical products from the date of shipment.
5. All of our QSFP, QSFP28, QSFP56, QSFP-DD, CWDM/DWDM/Bidi SFP/SFP+/XFP, AOC/DAC products pass CE,ROHS,FCC.
6. We also provide DWDM CWDM WDM optical solutions.
FAQ
1. Can I have a sample order? What is your MOQ?
Sample order is supported for testing the quality of goods. 1 piece is the MOQ.
Mixed samples are acceptable.
2. What is the lead time?
1-3 days after receiving the payment for the regular goods we normally keeping in stock;
For large quantity, you'll get support and details from your sales representative of HilinkTech.
3. What is the shipping way and how long is the period?
DHL, UPS, FedEx or TNT will be taken according to your option. The arrival normally takes 3-5 days .
4. What is your warranty?
3-year warranty.You'll get technique support, replacement or refund.
