Shenzhen HiLink Technology Co.,Ltd.

10G BASE ZR XFP Transceiver STM-64 80KM LC 1550nm Single Mode DDM DOM

Product Details:
Place of Origin: China
Brand Name: HILINK
Certification: CE FCC Rohs
Model Number: XFP-10G-ZR-80KM
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Static bag, Plastic bag, Retail box or by required
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500/pcs/month
  • Detail Information
  • Product Description

Detail Information

Name: 10G 80km XFP SMF Wavelength: 1550nm
Connector: LC Warranty: 3 Years
Transmission Distance: 80km Operating Case Temperature: 0°C~+70°C
High Light:

Single Mode XFP Transceiver

,

STM-64 80KM XFP Transceiver

,

LC 1550nm XFP Transceiver

Product Description

10G BASE XFP ZR STM-64 80KM LC 1550nm Single Mode DDM DOM Transceiver





General:

        HILINK HLXP551XL-CD80, L Small Form Factor 10Gb/s (XFP) transceivers comply with the current XFP Multi-Source Agreement (MSA) Specification. They are a true multi-protocol transceiver complying with 80km SONET OC-192 and SDH STM-64 per ITU-T G.959.1, and also support 10GBASE-ZR/ZW 80km 10-Gigabit Ethernet, 10-Gigabit Fibre Channel, and all related ITU-T G.709 FEC (OTN) data rates. Digital diagnostics functions are available via a 2-wire serial interface, as specified in the XFP MSA.





Features:

Supports 9.95 to 11.3Gb/s bit rates

Duplex LC connector

Hot-pluggable XFP footprint

Cooled 1550nm EML laser ,APD photo-detector

Applicable for 80km SMF connection

Low power consumption, <3.5W

Digital Diagnostic Monitor Interface

XFI Loop-back Support

Operating case temperature:

Commerical:0 to 70 °C

Industrial:-5 to 80°C



Applications:

10GBASE-ZR/ZW 10G Ethernet

80km 10G Fibre Channel

SONET OC-192 / SDH STM-64, ITU-T G.959.1

Other optical link



Module Number Decription
XFP-10G-MM-SR XFP 10GB MMF 850nm 300M
XFP-10G-LR XFP 10GB SMF 1310nm 10KM
XFP-10G-ER XFP 10GB SMF 1550nm 40KM
XFP-10G-ZR80 XFP 10GB SMF 1550nm 80KM
XFP-10G-ZR100 XFP 10GB SMF 1550nm 100KM
XFP-10G-ZR120 XFP 10GB SMF 1550nm 120KM

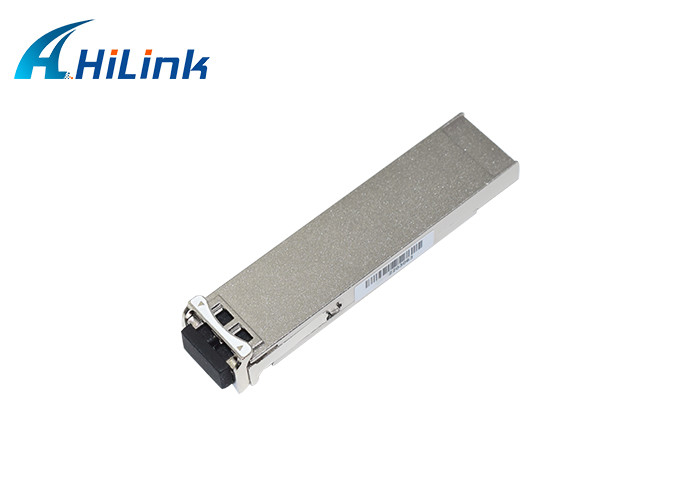

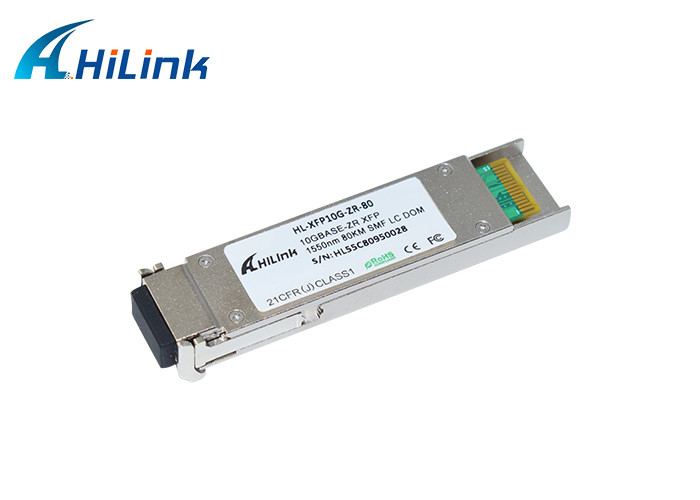

Product Show:

10G BASE ZR XFP Transceiver STM-64 80KM LC 1550nm Single Mode DDM DOM 010G BASE ZR XFP Transceiver STM-64 80KM LC 1550nm Single Mode DDM DOM 1



10G BASE ZR XFP Transceiver STM-64 80KM LC 1550nm Single Mode DDM DOM 2




Hilink Competitive advantages:



1. Excellent quality and 3 years warranty
2. Competitive pricing
3. Full compatible (CISCO/Ciena/Extreme/Juniper/H3C…)
4. OEM/ODM Customized label
5. Keep stocks,Fast delivery
