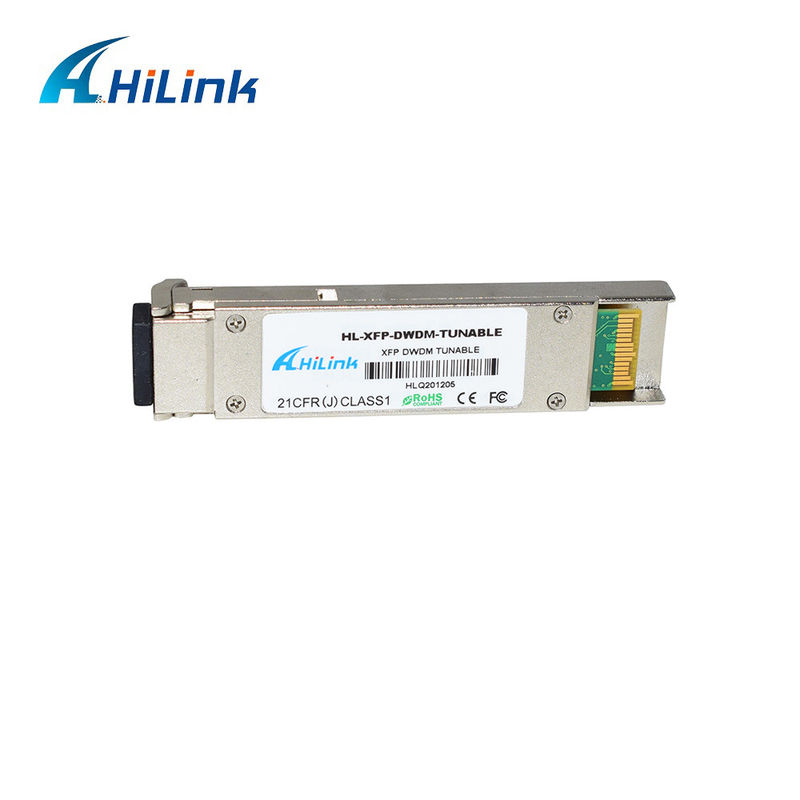

C Band Tunable 10GBASE DWDM XFP Optical Transceiver 80KM Optical Transceiver Module

Product Details:
Place of Origin: China
Brand Name: HILINK
Certification: CE FCC Rohs
Model Number: HL-DWTB-XFP-80
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: Blister Packaging
Delivery Time: 3-5 Working Days
Payment Terms: T/T, Western Union, MoneyGram,Paypal
Supply Ability: 100PCS Per Day
  • Detail Information
  • Product Description

Detail Information

Wavelength: C-band Wavelength Data: 1G~11.3Gbs
Distance: 80KM Package: XFP
Transmitter: C-band-tunable Laser Receiver: APD
High Light:

C Band XFP Optical Transceiver


Tunable 10GBASE XFP Optical Transceiver


XFP Optical Transceiver Module

Product Description


C-Band Tunable 10GBASE DWDM XFP 80KM Optical Transceiver Module


Hilink 50GHz Full C -band Tunable XFP transceivers are designed for use in 10Gb/s to 11.1Gb/s 50GHz DWDM links up to 80km of G.652 fiber. The SFP+ module supports 10GBASE-ZR and –ZW applications along with SONET OC-192 LR-2 and SDH STM-64 ITU-T G.959.1 P1L1-2D2


Item No. HL-DW-XFP-80-T Vendor Name Hilink
Form Type XFP Max Data Rate 11.3Gbps
Wavelength DWDM CH17-CH61 Max Cable Distance 80KM
Interface LC duplex Optical Components EML DWDM
Cable Type SMF DOM Support Yes
TX Power -1~3dBm Receiver Sensitivity <-24dBm
Commercial Temperature Range 0 to 70°C (32 to 158°F) HTS-Harmonized Code 8517706000




  • Hot-pluggable XFP footprint
  • Multi-Protocol,supports 9.95Gb/s to 11.3Gb/s bit rates
  • Monolithically integrated full C-band tunable transmitter
  • 50GHz ITU channel spacing with the integrated wavelength locker
  • C-band-tunable Laser and high-performance APD receiver
  • Maximum link length of 80km
  • Full Duplex LC connector
  • Supports Line-side and XFI loopback
  • No Reference Clock required
  • Digital diagnostic monitoring support
  • Standard bail release mechanism
  • Power dissipation <3.5W
  • Commercial operating temperature: 0°C to 70°C
  • RoHS compliant and lead-free





Hilink optical Transceiver 100% compatibility: Cisco, Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, D-link, Alcatel, Mikrotik, Finisar, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.


  • 10G Fiber Channel

  • Other optical links


  • DWDM Systems



DWDM Solution Example


C Band Tunable 10GBASE DWDM XFP Optical Transceiver 80KM Optical Transceiver Module 0

Details Photos

C Band Tunable 10GBASE DWDM XFP Optical Transceiver 80KM Optical Transceiver Module 1C Band Tunable 10GBASE DWDM XFP Optical Transceiver 80KM Optical Transceiver Module 2

Hilink Advantage


1. Hilink ,a professional manufacturer established in 2007,Specialize in optical network communications with over 10 years experience.
2." Credit is the basis, quality is the first",all our products are new,we never use second-hand components.
3. Our optical transceivers are compatible with Cisco,Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, Dlink, Alcatel, Riverstone,
Enterasys, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.
4. We provide 3 years warranty for all our fiber optical products from the date of shipment.
5. All of our QSFP, QSFP28, QSFP56, QSFP-DD, CWDM/DWDM/Bidi SFP/SFP+/XFP, AOC/DAC products pass CE,ROHS,FCC.
6. We also provide DWDM CWDM WDM optical solutions.



1. Can I have a sample order? What is your MOQ?
Sample order is supported for testing the quality of goods. 1 piece is the MOQ.
Mixed samples are acceptable.


2. What is the lead time?

1-3 days after receiving the payment for the regular goods we normally keeping in stock;
For large quantity, you'll get support and details from your sales representative of HilinkTech.

3. What is the shipping way and how long is the period?

DHL, UPS, FedEx or TNT will be taken according to your option. The arrival normally takes 3-5 days .

4. What is your warranty?

3-year warranty.You'll get technique support, replacement or refund.
