Shenzhen HiLink Technology Co.,Ltd.

SMF XFP BIDI Optical Module RoHS Compliant 10G 1270nm 1330nm 10~60KM

Product Details:
Place of Origin: China
Brand Name: HILINK
Certification: CE FCC Rohs
Model Number: HL-XFP-BXU/D-X
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: Blister Packaging
Delivery Time: 3-5 Working Days
Payment Terms: T/T, Western Union, MoneyGram,Paypal
Supply Ability: 100PCS Per Day
  • Detail Information
  • Product Description

Detail Information

Wavelength: 1270/1330nm Data: 10Gbs
Distance: 10~60KM Package: XFP
Tx Power: 0-5dB Receiver Sensitivity: ≤-20
High Light:

SMF XFP BIDI Optical Module Transceiver

,

10G 1270nm

,

60KM 10G XFP Optical Transceiver

Product Description

SMF XFP BIDI Optical Module RoHS Compliant 10G 1270nm 1330nm 10~60KM



Hilink’s HLXBxx1XL-CD-x transceivers are designed for 10G Ethernet 10G, and it can support data-rate from 9.953Gb/s to 11.3Gb/s.Digital diagnostics are avail-able via I2C interface as specified in the XFP MSA.The transceiver designs are optimized for high per-formance and cost effective to supply customers the best solutions for data-com and telecom applications.









Features

  •  Supports 9.95 to 11.3Gb/s bit rates

  •  Simplex LC Connector

  •  Hot-pluggable XFP footprint

  •  1270nm DFB transmitter, 1330nm PIN receiver

  •  1330nm DFB transmitter, 1330nm PIN receiver

  •  Distance up to 60km SMF connection

  •  Low power consumption

  •  Digital Diagnostic Monitor Interface

  •  Electrical interface compliant to SFF-8431

  •  Operating case temperature: Commerical:0 to 70 °C



Specifications


Item No. HL-XFP-BX-x Vendor Name Hilink
Form Type XFP Max Data Rate 11.3Gb/s
Wavelength 1270/1330nm Max Cable Distance 60KM
Interface LC Simplex Optical Components DFB + PIN
Cable Type SMF DOM Support Yes
Commercial Temperature Range 0 to 70°C (32 to 158°F) HTS-Harmonized Code 8517706000
Parameter Symbol Unit Min Typ Max
Transmitter
Center Wavelength λ nm 1260 1270 1280
  λ nm 1320 1330 1340
Average Output Power Pave dBm 0   5
Average Output Power of Off Transmitter Poff dBm -45
Extinction Ratio ER dB 3.5
Side Mode Suppression Ratio SMSR dB 30

RMS spectral width

Δλ

nm     1
Output Eye Mask Compliant with IEEE 802.3ae requirements
Receiver

Center Wavelength

λC nm 1320 1330 1340



λC nm 1260 1270 1280
Receiver Sensitivity PSEN1 dBm     -20
Receiver Overload  Pave dBm -6
LOS Assert

Pa

dBm -38
LOS De-Assert LOS

Pd

dBm     -21
LOS Hysteresis Pd-Pa dB 0.5   4





Hilink optical Transceiver 100% compatibility: Cisco, Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, D-link, Alcatel, Mikrotik, Finisar, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.

Applications



  •  10GBASE-BX 10.3125Gb/s Ethernet

  •  10GBASE-BX 9.953Gb/s Ethernet

  •  Switches & Routers

  •  SONET & SDH

  •  Other optical link

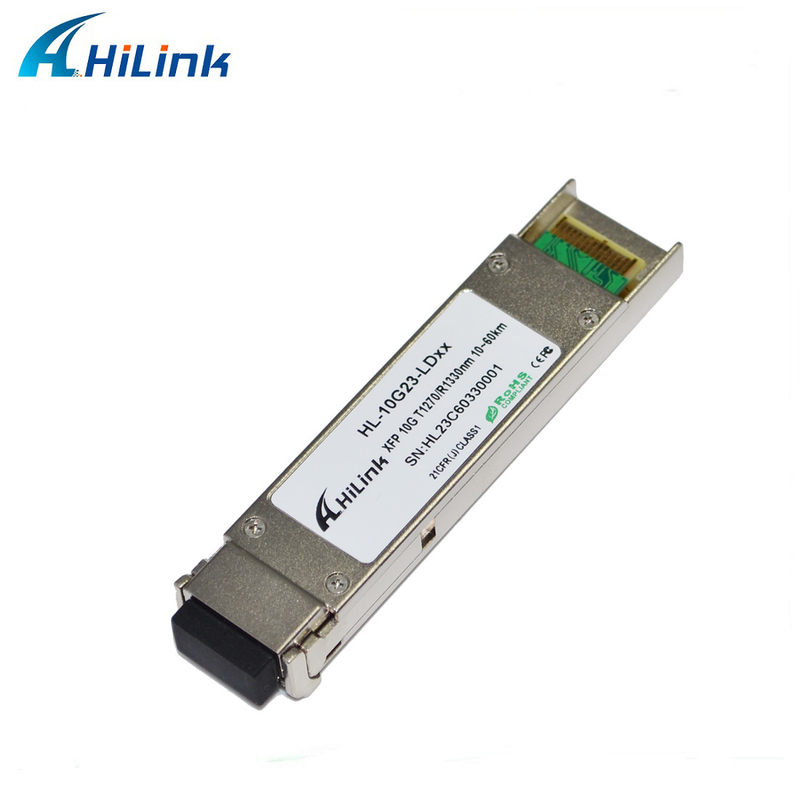

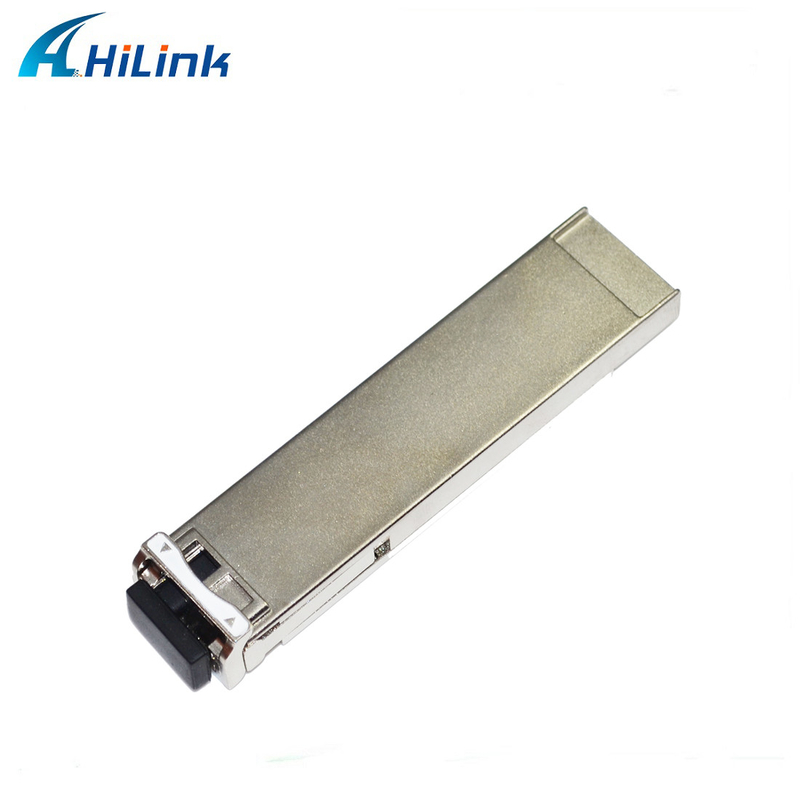

Details Photos





SMF XFP BIDI Optical Module RoHS Compliant 10G 1270nm 1330nm 10~60KM 0





Hilink Advantages



1. Hilink ,a professional manufacturer established in 2007,Specialize in optical network communications with over 10 years experience.
2." Credit is the basis, quality is the first",all our products are new,we never use second-hand components.
3. Our optical transceivers are compatible with Cisco,Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, Dlink, Alcatel, Riverstone,
Enterasys, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.
4. We provide 3 years warranty for all our fiber optical products from the date of shipment.
5. All of our QSFP, QSFP28, QSFP56, QSFP-DD, CWDM/DWDM/Bidi SFP/SFP+/XFP, AOC/DAC products pass CE,ROHS,FCC.
6. We also provide DWDM CWDM WDM optical solutions.



FAQ


1. Can I have a sample order? What is your MOQ?
Sample order is supported for testing the quality of goods. 1 piece is the MOQ.
Mixed samples are acceptable.



2. What is the lead time?

1-3 days after receiving the payment for the regular goods we normally keeping in stock;
For large quantity, you'll get support and details from your sales representative of HilinkTech.


3. What is the shipping way and how long is the period?

DHL, UPS, FedEx or TNT will be taken according to your option. The arrival normally takes 3-5 days .


4. What is your warranty?

3-year warranty.You'll get technique support, replacement or refund.
