Shenzhen HiLink Technology Co.,Ltd.

10GBASE XFP ZR XCVR DWDM CH17~61 80KM Optical Transceiver Module

Product Details:
Place of Origin: China
Brand Name: HILINK
Certification: CE FCC Rohs
Model Number: HL-DWTB-XFP-80
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Blister Packaging
Delivery Time: 3-5 Working Days
Payment Terms: T/T, Western Union, MoneyGram,Paypal
Supply Ability: 100PCS Per Day
  • Detail Information
  • Product Description

Detail Information

Wavelength: DWDM CH17~61 Data: 11.3Gbs Max
Distance: 80KM Package: XFP
Transmitter: DWDM EML Receiver: APD
High Light:

10GBASE Optical Transceiver Module

,

Optical Transceiver Module 80KM

,

XFP ZR Optical Transceiver Module

Product Description

10GBASE XFP ZR XCVR DWDM CH17~61 80KM Optical Transceiver Module



Hilink 10G DWDM XFP ZR optical transceivers are designed for use in 10-Gigabit Ethernet links up to 80km over Single Mode fiber.



Item No. HL-DW-XFP-80 Vendor Name Hilink
Form Type XFP Max Data Rate 11.3Gbps
Wavelength DWDM CH17-CH61 Max Cable Distance 80KM
Interface LC duplex Optical Components EML DWDM
Cable Type SMF DOM Support Yes
Commercial Temperature Range 0 to 70°C (32 to 158°F) HTS-Harmonized Code 8517706000


Features

  • Hot-pluggable XFP footprint
  • Multi-Protocol,supports 9.95Gb/s to 11.3Gb/s bit rates
  • Monolithically integrated full C-band tunable transmitter
  • Temperature-stabilized DWDM EMLtransmitter and APD receiver
  • Full Duplex LC connector
  • 100GHz ITU Grid, C-Band

  • Applicable for 80km SMF connectio

  • Digital diagnostic monitoring support
  • Power dissipation <3.5W
  • Commercial operating temperature: 0°C to 70°C
  • RoHS compliant and lead-free



Compatibility



Hilink optical Transceiver 100% compatibility: Cisco, Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, D-link, Alcatel, Mikrotik, Finisar, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.


Applications

  • DWDM 10G SONET/SDH

  • DWDM, IEEE 10GBASE-ZR based Ethernet

  • ITU G.709 / OTN FEC applications

  • Other optical link





DWDM Solution Example



10GBASE XFP ZR XCVR DWDM CH17~61 80KM Optical Transceiver Module 0

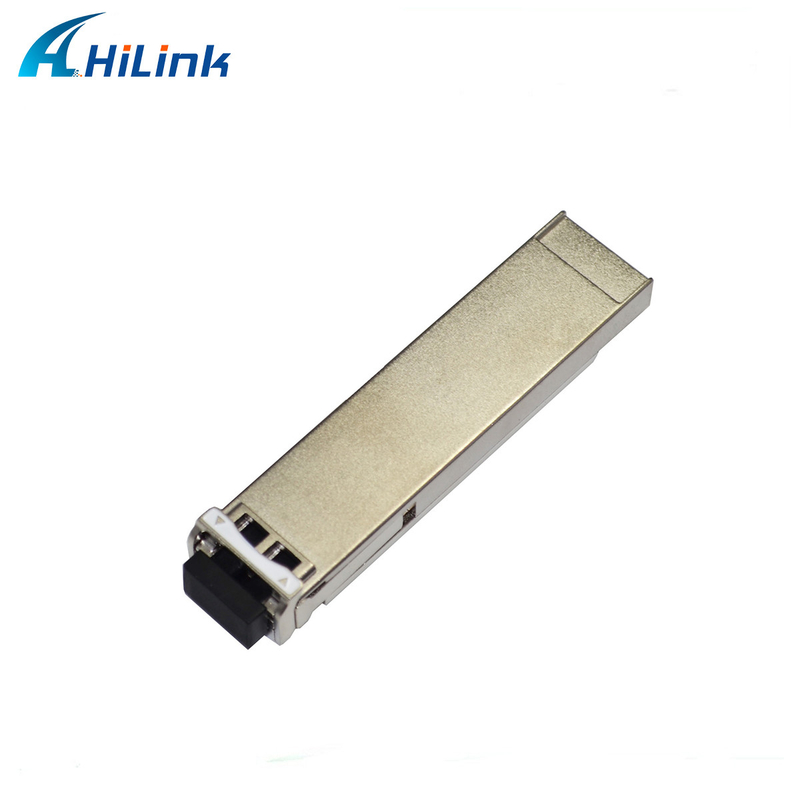

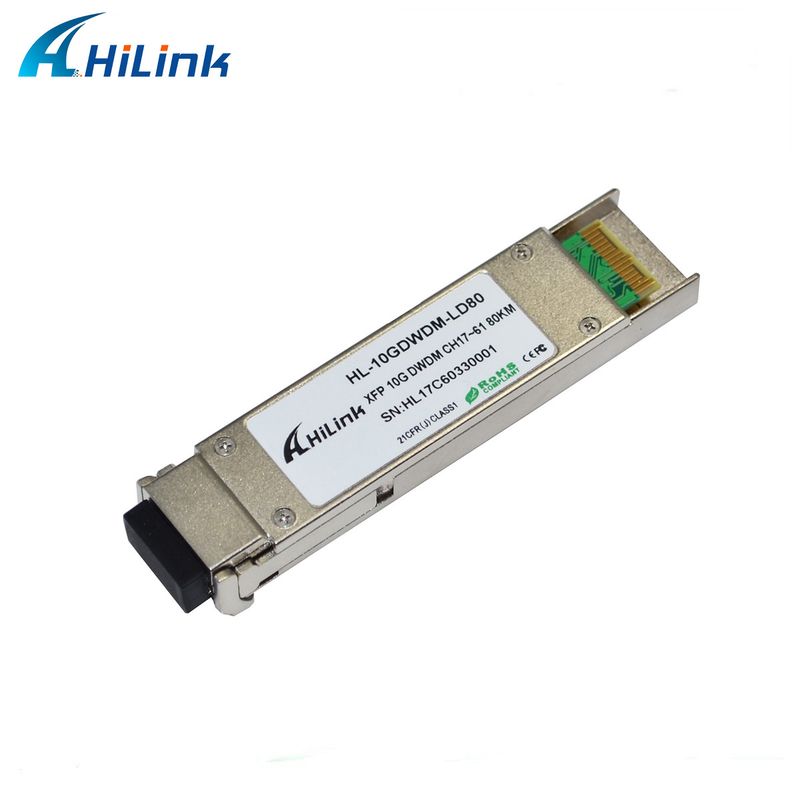

Details Photos

10GBASE XFP ZR XCVR DWDM CH17~61 80KM Optical Transceiver Module 110GBASE XFP ZR XCVR DWDM CH17~61 80KM Optical Transceiver Module 2

Hilink Advantage



1. Hilink ,a professional manufacturer established in 2007,Specialize in optical network communications with over 10 years experience.
2." Credit is the basis, quality is the first",all our products are new,we never use second-hand components.
3. Our optical transceivers are compatible with Cisco,Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, Dlink, Alcatel, Riverstone,
Enterasys, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.
4. We provide 3 years warranty for all our fiber optical products from the date of shipment.
5. All of our QSFP, QSFP28, QSFP56, QSFP-DD, CWDM/DWDM/Bidi SFP/SFP+/XFP, AOC/DAC products pass CE,ROHS,FCC.
6. We also provide DWDM CWDM WDM optical solutions.



FAQ


1. Can I have a sample order? What is your MOQ?
Sample order is supported for testing the quality of goods. 1 piece is the MOQ.
Mixed samples are acceptable.



2. What is the lead time?

1-3 days after receiving the payment for the regular goods we normally keeping in stock;
For large quantity, you'll get support and details from your sales representative of HilinkTech.


3. What is the shipping way and how long is the period?

DHL, UPS, FedEx or TNT will be taken according to your option. The arrival normally takes 3-5 days .


4. What is your warranty?

3-year warranty.You'll get technique support, replacement or refund.
