Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | Hilink |
| Certification: | CE FCC Rohs |
| Model Number: | HL-OTN-200G-Muxponder |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1pc |
| Price: | Negotiation |
| Packaging Details: | Plastic packaging, Carton |
| Payment Terms: | T/T, Western Union, MoneyGram,Paypal |
| Supply Ability: | 200PCS/month |
|
Detail Information |
|||
| Product Name: | 200G OTN/DWDM Muxponder | Data Rate: | 200G |
|---|---|---|---|
| Wavelength: | DWDM 1529.5~1565.50nm | Interface: | 1*200G CFP2, 2* 100G QSFP28 |
| Dimension: | 191 (W) X 253 (D) X 42 (H) Mm | Operating Temperature: | -10 To +60℃ |
| High Light: | OTN/DWDM Muxponder,QSFP Muxponder 2 x 100G,200G QSFP Muxponder |
||
Product Description

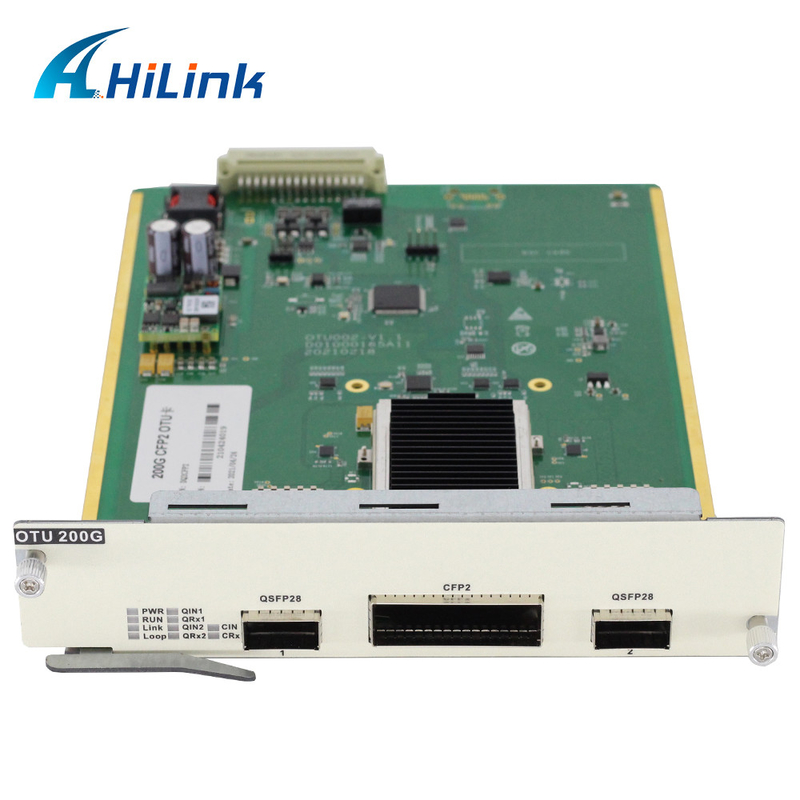

200G OTN/DWDM Muxponder with 2x100G QSFP Convergence to 200G CFP2
Hilink's 200G Muxponder Transmitter supports two QSFP28 client interface and one CFP2 line-side interface to support single-channel 200Gbps large-grain data transfers. The industry's most advanced coherent technology and FEC forward error correction coding technology enable high-capacity, long-distance high-performance transmission.
Features
* Support single channel 200Gbps
* Client Side:2x QSFP28 module
* Line Side: CFP2 200Gbps coherent module
* Ultra-long-distance transmission: FEC technology can be used to achieve 1500km transmission without regeneration
* Large dispersion tolerance: 4nm
* Support port loopback test
* Support 80 channel wavelength tunable
| Parameter | Technical Indicator | |
| Center Wavelength | DWDM 1529.5~1565.50nm | |
| Data Rate | 200Gbps | |
200G Interface |
Client Side | 2xQSFP28 module |
| Line Side | CFP2 200Gbps coherent module | |
|
FEC (Gain, Delay, BER Threshold) |
GFEC | 6.2dB, 1.2μs, 8.5e-2 |
| 100GE-SDFEC-LOW-LATENCY-SD2 | 10.6dB, 9.4μs, 1. 40e-2 | |
| 100GE-SDFEC-LH-SD2 | 9.4dB, 7.9μs, 1. 01e-2 | |
| 100GE-SDFEC-LOW-LATENCY-SD0 | 10.8dB, 9.4μs, 1.56e-2 | |
| NMS | TEL NET, SNMP, WEB | |
| Size | 191(W)x253(D)X42(H)mm. | |
| Environment | Operation Temperature | -10C ~ 60C |
| Storage Temperature | -40C~ 80C | |
| Relative Humidity | 5% ~ 95% Non-condensing | |
| Power Consumption | ≤50W | |
* Media conversion
* Signal repeating
* Lambda conversion
Hilink Advantages
1. Hilink ,a professional manufacturer established in 2007,Specialize in optical network communications with over 10 years experience.
2. " Credit is the basis, quality is the first",all our products are new,we never use second-hand components.
3. Our optical transceivers are compatible with Cisco,Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, Dlink, Alcatel, Riverstone,
Enterasys, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.
4. We provide 3 years warranty for all our fiber optical products from the date of shipment.
5. All of our QSFP, QSFP28, QSFP56, QSFP-DD, CWDM/DWDM/Bidi SFP/SFP+/XFP, AOC/DAC products pass CE,ROHS,FCC.
6. We also provide DWDM CWDM WDM optical solutions.
Sample order is supported for testing the quality of goods. 1 piece is the MOQ.
Mixed samples are acceptable.
1-3 days after receiving the payment for the regular goods we normally keeping in stock; For large quantity, you'll get support and details from your sales representative of HilinkTech.
DHL, UPS, FedEx or TNT will be taken according to your option. The arrival normally takes 3-5 days .
T/T, Western Union or Paypal.
3-year warranty.You'll get technique support, replacement or refund.
OEM service is provided.
