GLC-LX-SMD 1.25 G SFP Module 1310nm FP + PIN 20KM Duplex LC DDM Optic Transceiver Module

Product Details:
Place of Origin: China
Brand Name: HILINK
Certification: CE FCC Rohs
Model Number: GLC-LX-SMD
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: Blister Packaging
Delivery Time: 3-5 Working Days
Payment Terms: T/T, Western Union, MoneyGram,Paypal
Supply Ability: 100PCS Per Day
  • Detail Information
  • Product Description

Detail Information

Wavelength: 1310nm Data: 1.25Gbs
Distance: 20KM Package: SFP
Transmitter: FP Receiver: PIN
High Light:

Duplex LC 1.25 G SFP module

,

FP PIN 1.25 G SFP module

,

20KM DDM Optic Transceiver Module

Product Description



GLC-LX-SMD 1.25G 1310nm FP+PIN 20KM SFP Duplex LC DDM Optic Module



Hilink Small Form Factor Pluggable (SFP) transceivers are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA).

Hilink 1.25G LX SFP transceiver is designed to transmit and receive optical data over Single mode optical fiber for link length 20km.





Item No. GLC-LX-SMD Vendor Name Hilink
Form Type SFP Max Data Rate 1.25Gbps
Wavelength 1310nm Max Cable Distance 20KM
Interface LC duplex Optical Components FP
Cable Type SMF DOM Support Yes
TX Power -8~-4dBm Receiver Sensitivity <-25dBm
Commercial Temperature Range 0 to 70°C (32 to 158°F) HTS-Harmonized Code 8517706000



Hilink optical Transceiver 100% compatibility: Cisco, Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, D-link, Alcatel, Mikrotik, Finisar, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.





Features



  •  Up to 1.25Gb/s dual data links

  •  Hot-pluggable SFP footprint

  •  1310nm FP laser transmitter

  •  Duplex LC connector

  •  Up to 20km on 9/125µm SMF

  •  Metal enclosure for lower EMI

  •  Single +3.3V power supply

  •  Low power dissipation <700mW

  •  Commercial operating temperature range: 0 to +70℃

  •  Industrial operating temperature range: -40°C to +85°C





Applications



  •  1.25Gb/s 1000Base-LX Ethernet

  •  1.06Gb/s Fiber Channel

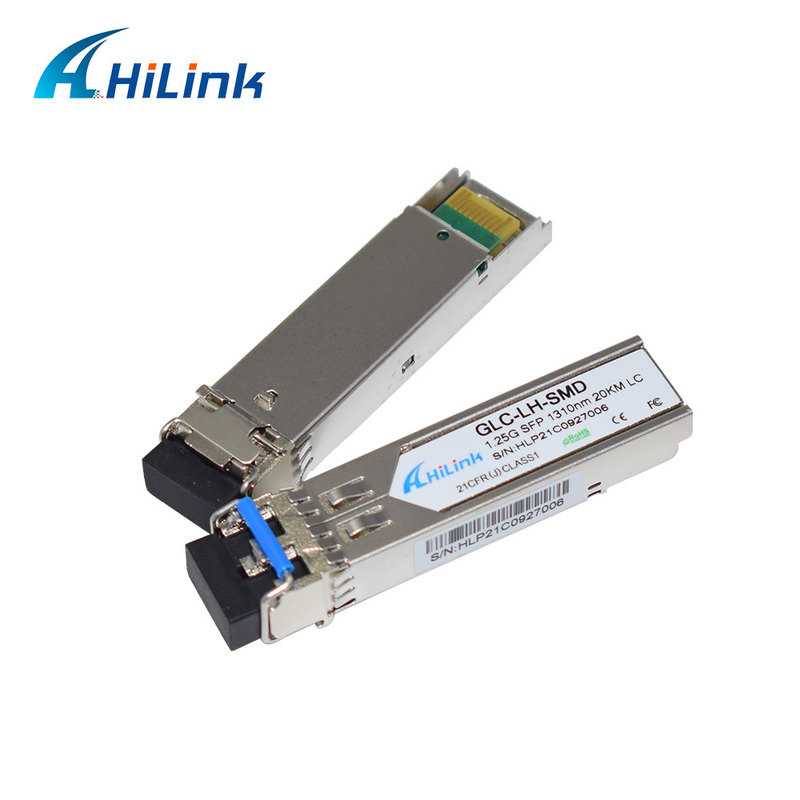

Details Photos





GLC-LX-SMD 1.25 G SFP Module 1310nm FP + PIN 20KM Duplex LC DDM Optic Transceiver Module 0GLC-LX-SMD 1.25 G SFP Module 1310nm FP + PIN 20KM Duplex LC DDM Optic Transceiver Module 1







Hilink Advantage

1. Hilink establish in 2007,Specialize in this field with around 10-year experience.
2." Credit is the basis, quality is the first",all our products are new,we never use second-hand components.
3. Our products are compatible with Cisco,Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, Dlink, Alcatel, Riverstone,
Enterasys, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.
4. We provide 3 years warranty for all our products from the date of shipment.
5. All of our products get through CE,ROHS,FCC.
6. We also provide DWDM CWDM WDM with optical solutions.




FAQ


1. Can I have a sample order? What is your MOQ?
Sample order is supported for testing the quality of goods. 1 piece is the MOQ.
Mixed samples are acceptable.


2. What is the lead time?

1-3 days after receiving the payment for the regular goods we normally keeping in stock;
For large quantity, you'll get support and details from your sales representative of HilinkTech.


3. What is the shipping way and how long is the period?

DHL, UPS, FedEx or TNT will be taken according to your option. The arrival normally takes 3-5 days .


4. What is your warranty?

3-year warranty.You'll get technique support, replacement or refund.
