Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | HILINK |
| Certification: | CE FCC Rohs |
| Model Number: | HL-10G-SFP-BXD-60KM |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1pcs |
| Price: | Negotiable |
| Packaging Details: | Carton box, Retail box, Or by required |
| Delivery Time: | 1-4 days |
| Payment Terms: | L/C, T/T, Western Union, Paypal |
| Supply Ability: | 3000 pairs per Week |
|
Detail Information |
|||
| Data Transfer Rate: | 10Gbps | Max Distance: | 60km |
|---|---|---|---|
| Wavelength 1: | 1270nm/1330nm | Wavelength 2: | 1330nm/1270nm |
| Interface: | Simplex LC | Warranty: | 3 Years |
| High Light: | 10G 60KM SFP+ Transceiver Module,SFP+ Transceiver Module 1270nm/1330nm,Simplex LC SFP+ Transceiver Module |
||
Product Description
10G SFP 60KM BIDI 60KM 10G-ER4-60KM SMF 1270nm/1330nm Compatible Brand
General
HLSBxx1XL-CD60 series single mode transceiver is small form factor pluggable module for optical data communications such as 10G Ethernet. It is with the SFP+ 20-pin connector to allow hot plug capability. The HLSBxx1XL-CD60 module is designed for single mode fiber and operates at a nominal wavelength of 1270nm or 1330nm; The transmitter section uses a multiple quantum well DFB, which is class 1 laser compliant according to International Safety Standard IEC-60825. The receiver section consists of a APD photodiode integrated with a TIA. The transceiver designs are optimized for high perform -ance and cost effective to supply customers the best solutions for telecommunication.
Features
Supports 9.95 to 10.3Gb/s bit rates
Simplex LC Connector
Hot pluggable SFP+ footprint
Uncooled 1270nm DFB transmitter, 1330nm APD photo-detector
Uncooled 1330nm DFB transmitter, 1270nm APD photo-detector
Applicable for 60km SMF connection
Low power consumption, < 1.5W
Digital Diagnostic Monitor Interface
Optical interface compliant to IEEE 802.3ae 10GBASE-ER
Electrical interface compliant to SFF-8431
Operating case temperature:
Commerical:0 to 70 °C Industrial:-40 to 80 °C
Application
10.3125Gbps Ethernet
Other Optical Links
BIDI(WDM) SFP Transceivers
| 10G SFP BiDi | SFP+ BiDi 1270 20km | SFP+ BiDi 20km Tx1270nm/Rx1330nm LC |
| SFP+ BiDi 1330 20km | SFP+ BiDi 20km Tx1330nm/Rx1270nm LC | |
| SFP+ BiDi 1270 40km | SFP+ BiDi 40km Tx1270nm/Rx1330nm LC | |
| SFP+ BiDi 1330 40km | SFP+ BiDi 20km Tx1330nm/Rx1270nm LC | |
| SFP+ BiDi 1270 60km | SFP+ BiDi 60km Tx1270nm/Rx1330nm LC | |
| SFP+ BiDi 1330 60km | SFP+ BiDi 60km Tx1330nm/Rx1270nm LC | |
| SFP+ BiDi 1490 80km | SFP+ BiDi 80km Tx1490nm/Rx1550nm LC | |
| SFP+ BiDi 1550 80km | SFP+ BiDi 80km Tx1550nm/Rx1490nm LC |

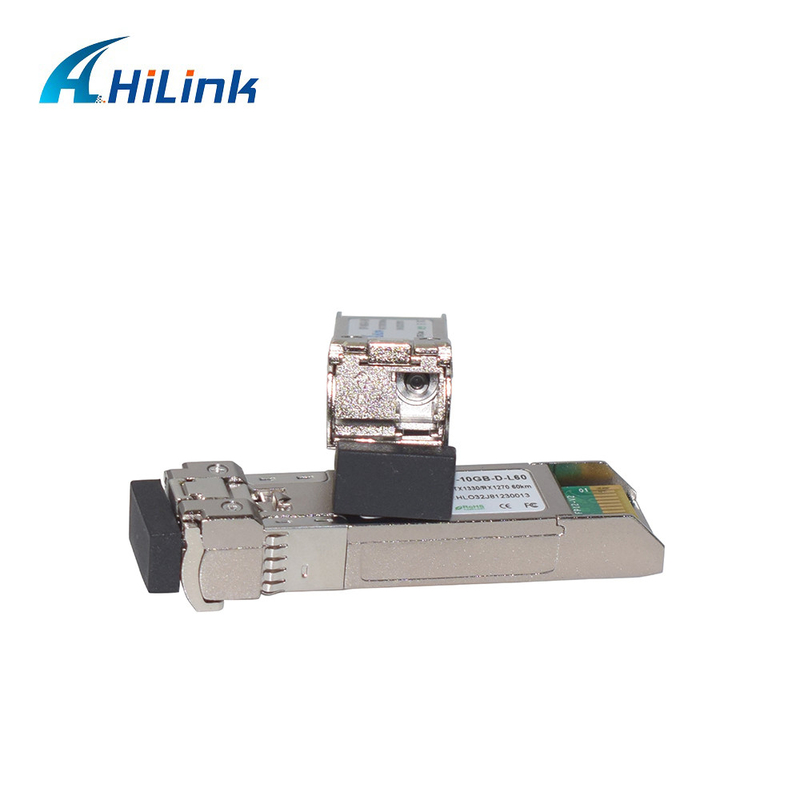

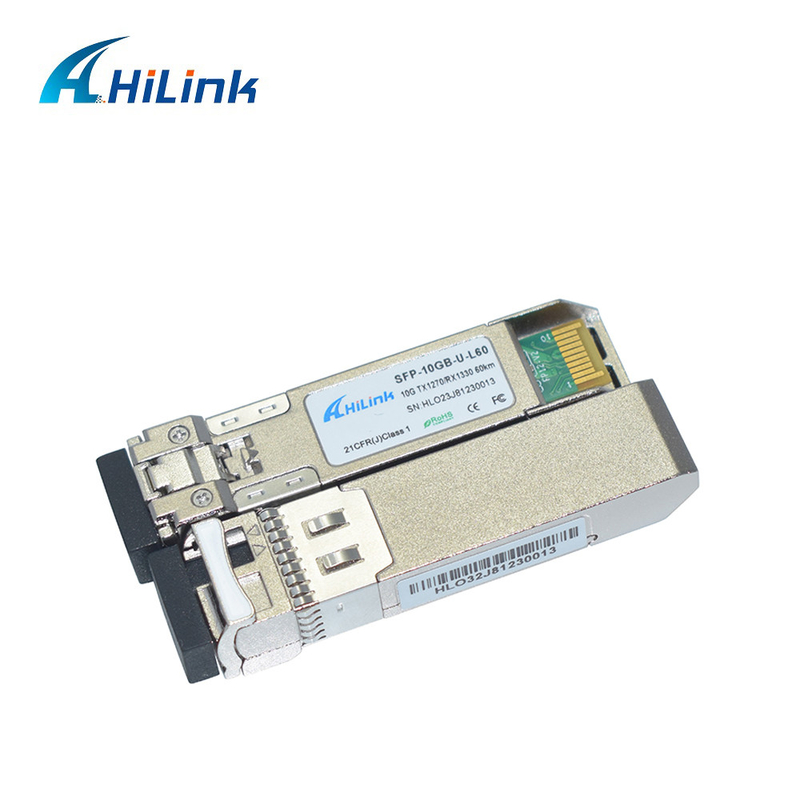

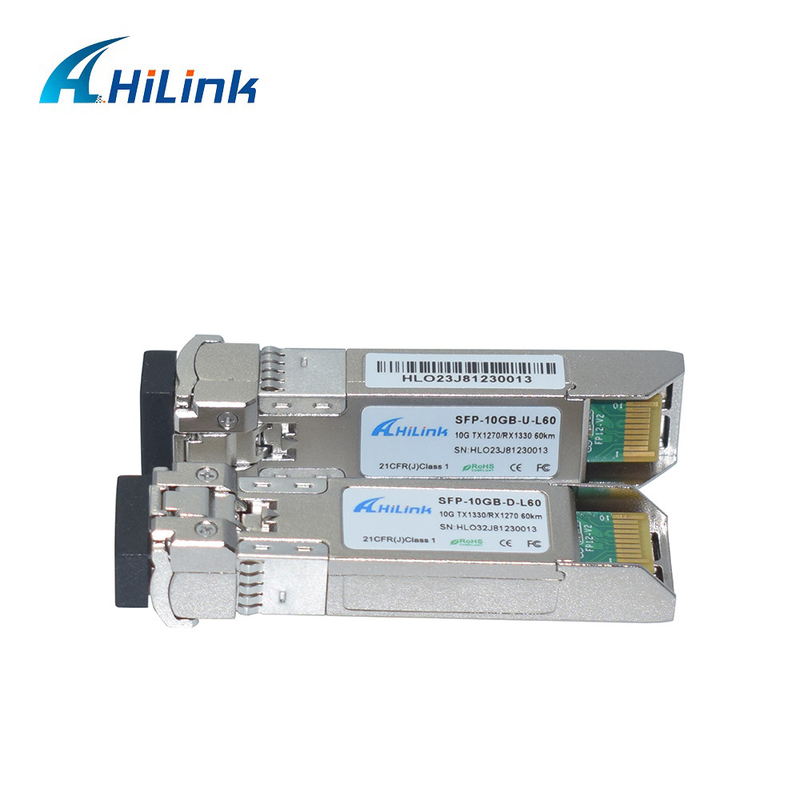

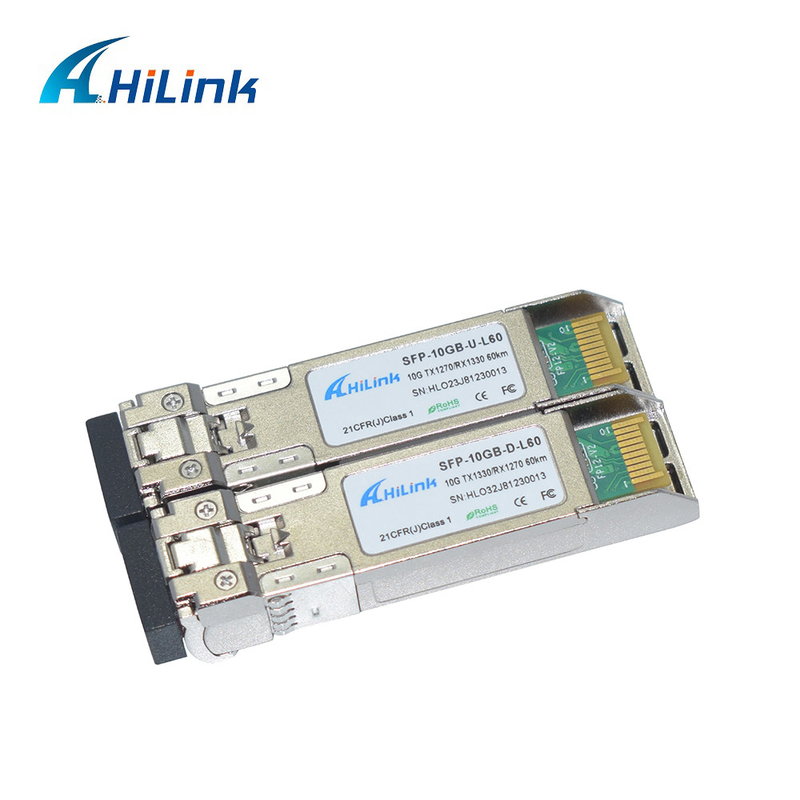

Product Picture
Optical Characteristics (TOP(C) = 0 to 70 ℃, TOP(I) =-40 to 80 ℃,VCC = 3.13 to 3.47 V)
| Parameter | Symbol | Min. | Typ | Max. | Unit | Note |
| Transmitter | ||||||
| Operating Wavelength | λ | 1260 | 1270 | 1280 | nm | |
| 1320 | 1330 | 1340 | ||||
| Ave. output power (Enabled) | PAVE | 1 | 5 | dBm | 1 | |
| Side-Mode Suppression Ratio | SMSR | 30 | dB | |||
| Extinction Ratio | ER | 5 | 6 | dB | ||
| RMS spectral width | Δλ | 1 | nm | |||
| Rise/Fall time (20%~80%) | Tr/Tf | 50 | ps | |||
| Dispersion penalty | TDP | 3.2 | dB | |||
| Relative Intensity Noise | RIN | -128 | dB/Hz | |||
| Output Optical Eye | Compliant with IEEE 0802.3ae | |||||
| Receiver | ||||||
| Operating Wavelength | λ | 1320 | 1330 | 1340 | nm | |
| 1260 | 1270 | 1280 | ||||
| Receiver Sensitivity | PSEN1 | -20 | dBm | 2 | ||
| Sensitivity over 60Km fiber | PSEN2 | -18 | dBm | 2 | ||
| Overload | PAVE | -7 | dBm | |||
| LOS Assert | Pa | -35 | dBm | |||
| LOS De-assert | Pd | -22 | dBm | |||
| LOS Hysteresis | Pd-Pa | 0.5 | dB | |||
Notes:
1. Average power figures are informative only, per IEEE 802.3ae.
2. Measured with worst ER; BER<10-12; 231 – 1 PRBS.
Electrical Characteristics (TOP(C) = 0 to 70 ℃, TOP(I) =-40 to 80 ℃,VCC = 3.13 to 3.47 V)
| Parameter | Symbol | Min. | Typ | Max. | Unit | Note |
| Transmitter | ||||||
| Differential data input swing | VIN,PP | 180 | 700 | mVpp | 1 | |
| Transmit Disable Voltage | VD | VCC-0.8 | Vcc | V | ||
| Transmit Enable Voltage | VEN | Vee | Vee+0.8 | |||
| Input differential impedance | Rin | 100 | Ω | |||
| Receiver | ||||||
| Differential data output swing | Vout,pp | 300 | 850 | mVpp | 2 | |
| Output rise time and fall time | Tr, Tf | 28 | Ps | 3 | ||
| LOS asserted | VLOS_F | VCC-0.8 | Vcc | V | 4 | |
| LOS de-asserted | VLOS_N | Vee | Vee+0.8 | V | 4 | |
Notes:
1. Connected directly to TX data input pins. AC coupling from pins into laser driver IC.
2. Into 100Ω differential termination.
3. 20 – 80%. Measured with Module Compliance Test Board and OMA test pattern. Use of four 1’s and four 0’s sequence in the PRBS 9 is an acceptable alternative.
4. LOS is an open collector output. Should be pulled up with 4.7kΩ – 10kΩ on the host board. Normal operation is logic 0; loss of signal is logic 1.
Package Dimensions
Ordering Information
| Part Number | Description |
| HLSBxx1XL-CD60 | SFP+Bidi,9.95 to 10.3Gb/s, 1270/1330nm,60km, 0~70℃, with DDM |
| HLSB321XL-CD60 | SFP+Bidi,9.95 to 10.3Gb/s, 1330/1270nm, 60km, 0~70℃, with DDM |
| HLSB231XL-ID60 | SFP+Bidi,9.95 to 10.3Gb/s, 1270/1330nm, 60km, -40~80℃, with DDM |
| HLSB321XL-ID60 | SFP+Bidi,9.95 to 10.3Gb/s, 1330/1270nm, 60km, -40~80℃, with DDM |
