Single Fiber SFP Transceiver 1.25G 1310/1490nm 40KM SC/LC Simplex WDM Modules

Product Details:
Place of Origin: China
Brand Name: HILINK
Certification: CE FCC Rohs
Model Number: WDM-SFPXX-40
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Blister Packaging
Delivery Time: 3-5 Working Days
Payment Terms: T/T, Western Union, MoneyGram,Paypal
Supply Ability: 1000PCS Per Day
  • Detail Information
  • Product Description

Detail Information

Wavelength: 1310/1490nm Data: 1.25Gbs
Distance: 40KM Package: SFP
Transmitter: DFB Receiver: FP
High Light:

SC/LC Simplex WDM Modules

,

Single Fiber SFP Transceiver Modules

,

1310/1490nm SFP Transceiver Modules

Product Description



Single Fiber SFP Transceiver 1.25G 1310/1490nm 40KM SC/LC Simplex WDM Modules



Hilink Small Form Factor Pluggable (SFP) transceivers are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA). They simultaneously comply with Gigabit Ethernet as specified in IEEE STD 802.3 and 1x Fibre Channel as defined in FC-PI-2 Rev. 10.0 .They are RoHS compliant and lead-free.





Features



  • Hot-pluggable SFP footprint

  • Wavelengths :   34/43 : Tx1310nm/Rx1490nm ; Tx1490nm/Rx1310nm

  •                                  35/53 : Tx1310nm/Rx1550nm ; Tx1550nm/Rx1310nm (Optional)

  • Single LC/SC receptacle optical interface compliant

  • 1310nm FP laser transmitter;1490nm DFB laser transmitter

  • RoHS compliant and Lead Free

  • Up to 40km on 9/125um SMF

  • Metal enclosure for lower EMI

  • Single 3.3V power supply

  • Low power dissipation <600MW

  • Commercial operating temperature range: 0°C to 70°C





Details



Item No. WDM-SFPXX-20 Vendor Name Hilink
Form Type SFP Max Data Rate 1.25Gbps
Wavelength 1310/1490nm Max Cable Distance 40KM
Interface LC/SC simplex Optical Components DFB
Cable Type SMF DOM Support Yes
TX Power -3~2dBm Receiver Sensitivity <-25dBm
Commercial Temperature Range 0 to 70°C (32 to 158°F) HTS-Harmonized Code 8517706000



Optical Characteristics (TOP=25°C, Vcc=3.3 Volts)



Single Fiber SFP Transceiver 1.25G 1310/1490nm 40KM SC/LC Simplex WDM Modules 0



* Hilink optical Transceiver 100% compatibility: Cisco, Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, D-link, Alcatel, Mikrotik, Finisar, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.





Applications



  • Gigabit Ethernet

  • 1.06 Gb/s Fibre Channel

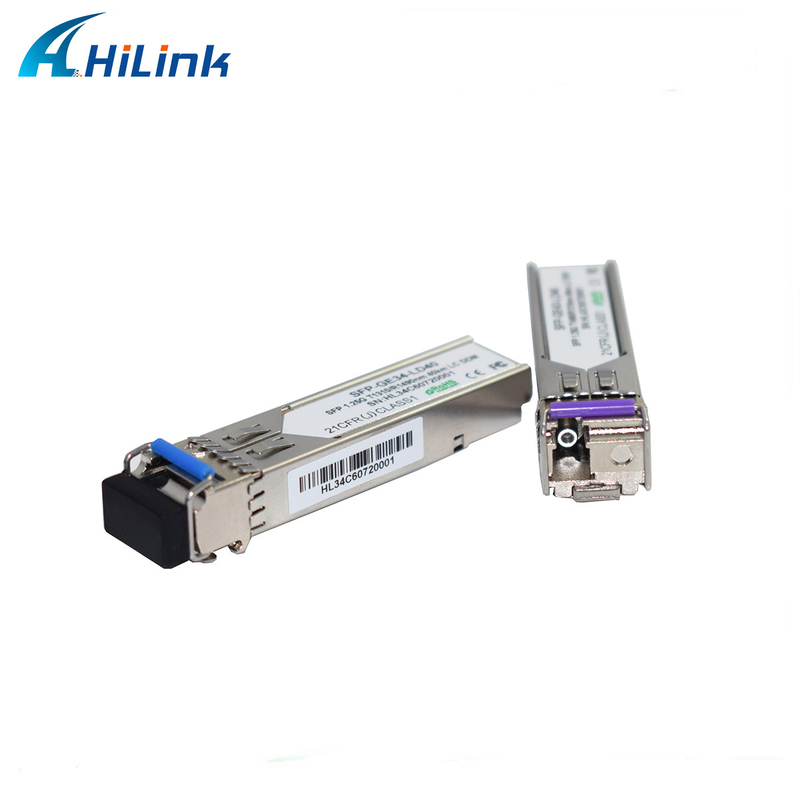

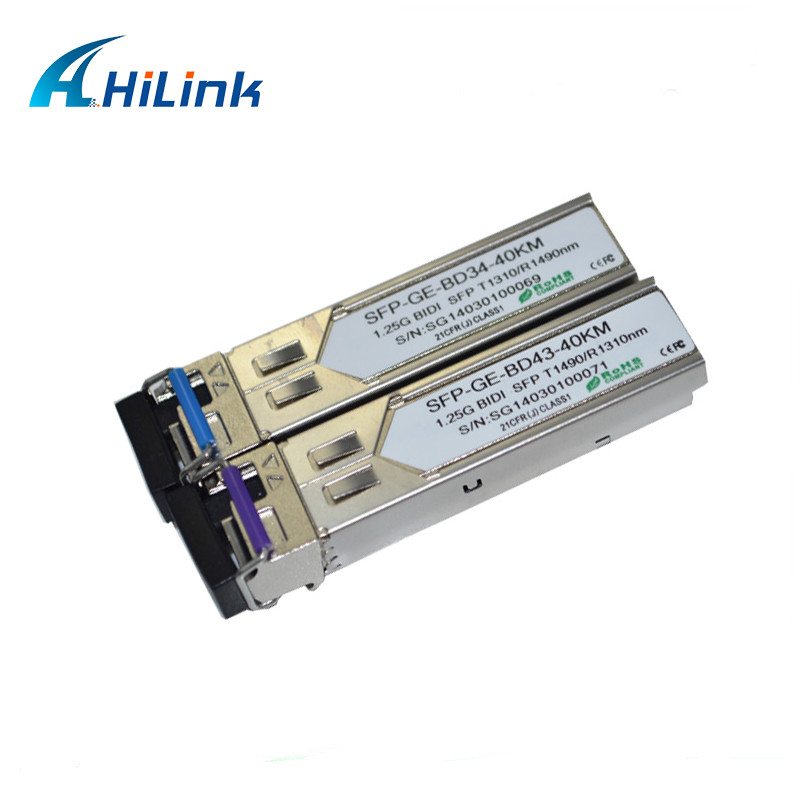

Details Photos



Single Fiber SFP Transceiver 1.25G 1310/1490nm 40KM SC/LC Simplex WDM Modules 1Single Fiber SFP Transceiver 1.25G 1310/1490nm 40KM SC/LC Simplex WDM Modules 2Single Fiber SFP Transceiver 1.25G 1310/1490nm 40KM SC/LC Simplex WDM Modules 3Single Fiber SFP Transceiver 1.25G 1310/1490nm 40KM SC/LC Simplex WDM Modules 4

Single Fiber SFP Transceiver 1.25G 1310/1490nm 40KM SC/LC Simplex WDM Modules 5







Hilink Advantage



1. Hilink establish in 2007,Specialize in this field with around 10-year experience.
2." Credit is the basis, quality is the first",all our products are new,we never use second-hand components.
3. Our products are compatible with Cisco,Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, Dlink, Alcatel, Riverstone,
Enterasys, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.
4. We provide 3 years warranty for all our products from the date of shipment.
5. All of our products get through CE,ROHS,FCC.
6. We also provide DWDM CWDM WDM with optical solutions.




FAQ


1. Can I have a sample order? What is your MOQ?
Sample order is supported for testing the quality of goods. 1 piece is the MOQ.
Mixed samples are acceptable.



2. What is the lead time?

1-3 days after receiving the payment for the regular goods we normally keeping in stock;
For large quantity, you'll get support and details from your sales representative of HilinkTech.


3. What is the shipping way and how long is the period?

DHL, UPS, FedEx or TNT will be taken according to your option. The arrival normally takes 3-5 days .


4. What is your warranty?

3-year warranty.You'll get technique support, replacement or refund.
