Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | HILINK |
| Model Number: | HL-10G-SFP-BXD-100KM |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1pcs |
| Price: | Negotiable |
| Packaging Details: | Carton box, Retail box, Or by required |
| Delivery Time: | 1-4 days |
| Payment Terms: | L/C, T/T, Western Union, Paypal |
| Supply Ability: | 3000 pairs per Week |
|
Detail Information |
|||
| Certification: | CE/FCC/RoHS | Data Transfer Rate: | 10Gbps |
|---|---|---|---|
| Max Distance: | 100km | Wavelength 1: | 1490nm/1550nm |
| Wavelength 2: | 1550nm/1490nm | Interface: | LC Connector |
| Warranty: | 3 Years | ||
| High Light: | 100KM BiDi SFP+ Transceiver,Single Module SFP+ Transceiver,LC SFP+ Transceiver Module |
||
Product Description
10Gb/s 100KM BiDi SFP+ Transceiver 1490/1550nm Single Module LC connector DOM
General
HL-10G-BXD100KM is a very compact 10Gb/s optical transceiver module for serial optical communication applications at 10Gb/s. The TSBLXG80D-45&54 converts a 10Gb/s serial electrical data stream to 10Gb/s optical output signal and a 10Gb/s optical input signal to 10Gb/s serial electrical data streams. The high speed 10Gb/s electrical interface is fully compliant with SFI specification.
The high performance 1490/1550nm 1550/1490nm cooled EML transmitter and high sensitivity APD receiver provide superior performance for Ethernet applications at up to 100km links.
The SFP+ Module compliants with SFF-8431, SFF-8432 and IEEE 802.3ae 10GBASE-ZR. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472.
The fully SFP compliant form factor provides hot plug-ability, easy optical port upgrades and low EMI emission.
Features
Supports 9.95 to 11.3Gb/s bit rates
Hot-Pluggable
Single LC for Bi-directional Transmission
cooled EML transmitter, APD photo-detector
SMF links up to 80km
2-wire interface for management specifications compliant with SFF 8472 digital diagnostic monitoring interface
Power Supply :+3.3V
Power consumption<3W
Temperature Range: 0~ 70°C
RoHS compliant
Application
10GBASE-ZR at 10.3125Gbps
10GBASE-ZW at 9.953Gbps
SONET OC-192/SDH
10G Fiber Channel
Other Optical Links
BIDI(WDM) SFP Transceivers
| 10G SFP BiDi | SFP+ BiDi 1270 20km | SFP+ BiDi 20km Tx1270nm/Rx1330nm LC |
| SFP+ BiDi 1330 20km | SFP+ BiDi 20km Tx1330nm/Rx1270nm LC | |
| SFP+ BiDi 1270 40km | SFP+ BiDi 40km Tx1270nm/Rx1330nm LC | |
| SFP+ BiDi 1330 40km | SFP+ BiDi 20km Tx1330nm/Rx1270nm LC | |
| SFP+ BiDi 1270 60km | SFP+ BiDi 60km Tx1270nm/Rx1330nm LC | |
| SFP+ BiDi 1330 60km | SFP+ BiDi 60km Tx1330nm/Rx1270nm LC | |
| SFP+ BiDi 1490 80km | SFP+ BiDi 80km Tx1490nm/Rx1550nm LC | |
| SFP+ BiDi 1550 80km | SFP+ BiDi 80km Tx1550nm/Rx1490nm LC |

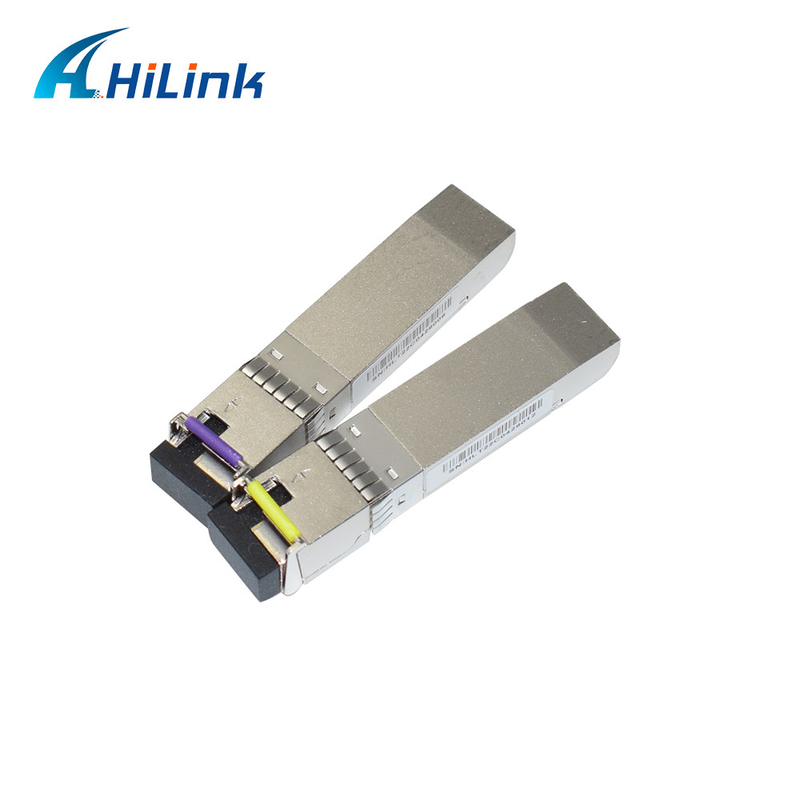

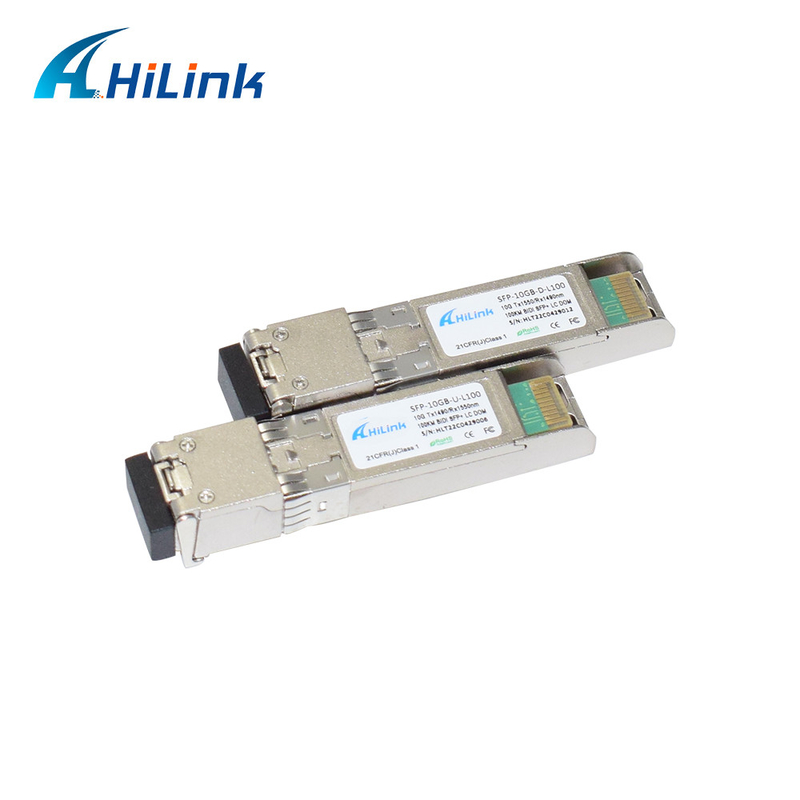

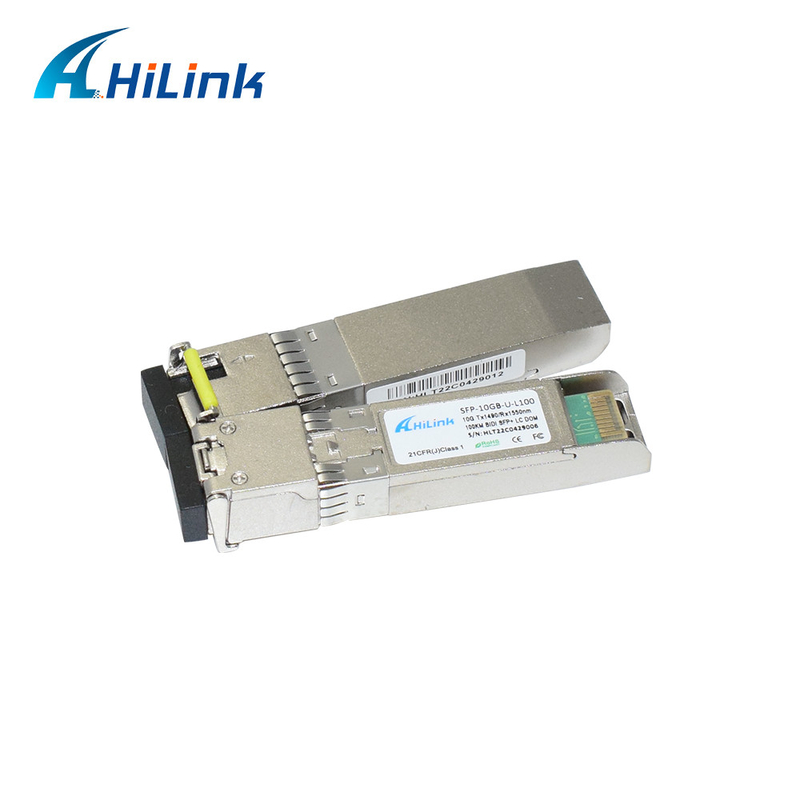

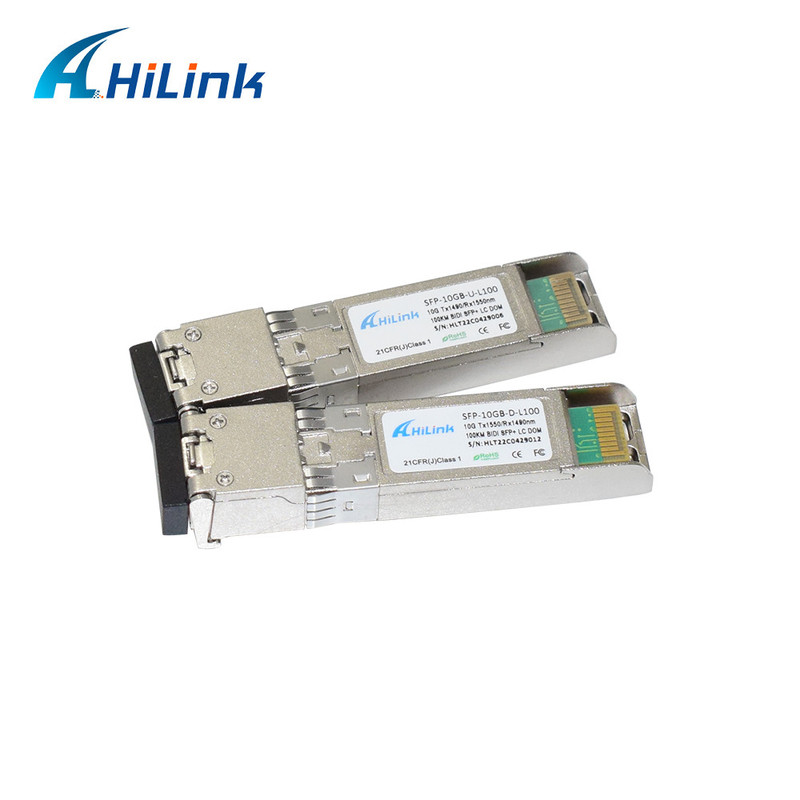

Product Picture
Optical Characteristics (TOP(C) = 0 to 70 ℃, TOP(I) =-40 to 80 ℃,VCC = 3.13 to 3.47 V)
| Parameter | Symbol | Min. | Typical | Max. | Unit | Note | ||
| Transmitter Section: | ||||||||
| Center Wavelength | TSBLXGA0D-45 | λt | 1470 | 1490 | 1510 | nm | ||
| TSBLXG80D-54 | λt | 1530 | 1550 | 1570 | nm | |||
| spectral width | △λ | 0.3 | nm | |||||
| Average Optical Power | Pavg | 0 | +5 | dBm | 1 | |||
| Optical Power OMA | Poma | -2.1 | dBm | |||||
| Laser Off Power | Poff | -30 | dBm | |||||
| Extinction Ratio | ER | 8.2 | dB | |||||
| Transmitter Dispersion Penalty | TDP | 3.0 | dB | 2 | ||||
| Relative Intensity Noise | Rin | -128 | dB/Hz | 3 | ||||
| Optical Return Loss Tolerance | 21 | dB | ||||||
| Receiver Section: | ||||||||
| Center Wavelength | TSBLXGA0D-45 | λr | 1530 | 1550 | 1570 | nm | ||
| TSBLXG80D-54 | λr | 1470 | 1490 | 1510 | nm | |||
| Receiver Sensitivity | Sen | -25 | dBm | 4 | ||||
| Los Assert | LOSA | -36 | - | dBm | ||||
| Los Dessert | LOSD | -26 | dBm | |||||
| Los Hysteresis | LOSH | 0.5 | dB | |||||
| Overload | Sat | -7 | dBm | 5 | ||||
| Receiver Reflectance | Rrx | -26 | dB | |||||
Notes:
1. Average power figures are informative only, per IEEE802.3ae.
2. TWDP figure requires the host board to be SFF-8431compliant. TWDP is calculated using the Matlab code provided in clause 68.6.6.2 of IEEE802.3ae.
3. 12dB reflection.
4. Conditions of stressed receiver tests per IEEE802.3ae. CSRS testing requires the host board to be SFF-8431 compliant.
5. Receiver overload specified in OMA and under the worst comprehensive stressed condition.
Package Dimensions
