Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | HILINK |
| Model Number: | HL-10G-SFP-ZR-100KM |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1pcs |
| Price: | Negotiable |
| Packaging Details: | Carton box, Retail box, Or by required |
| Delivery Time: | 1-4 days |
| Payment Terms: | L/C, T/T, Western Union, Paypal |
| Supply Ability: | 3000 pairs per Week |
|
Detail Information |
|||
| Certification: | CE/FCC/RoHS | Data Transfer Rate: | 10Gbps |
|---|---|---|---|
| Max Distance: | 100km | Wavelength 1: | 1550nm |
| Interface: | DualLC Connector | Type: | SMF |
| High Light: | ZR SFP+ Transceiver Module,100KM 10G SFP+ Transceiver Module,SMF Optic Transceiver |
||
Product Description
SFP+ ZR 100KM 10G ZR SFP Single Mode 100KM 1550nm SMF Transceiver Optica
General
HILINK HLSP551XL-C(I)DH1 transceivers are Enhanced Small Form Factor Pluggable SFP+ transceivers designed for use in 10-Gigabit multi-rate links up to 80km of G.652 single mode fiber. They are compliant with SFF-8431, SFF-8432 and support 10G Ethernet ZR and 10G Fibre Channel.Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472. The transceiver designs are optimized for high performance and cost effective to supply customers the best solutions for telecommunication and datacom.
Features
Supports 9.95 to 11.3Gb/s bit rates with Dual CDR
Duplex LC connector
Hot pluggable SFP+ footprint
Cooled 1550nm EML transmitter, APD receiver
Applicable for 100km SMF connection
Low power consumption, < 1.5W
Digital Diagnostic Monitor Interface
Optical interface compliant to IEEE 802.3ae 10GBASE-ZR
Electrical interface compliant to SFF-8431,SFF-8432
Operating case temperature:
Commerical:0 to 70 °C Industrial:-5 to 80 °C
Application
10GBASE-ZR at 10.3125Gbps
OTN G.709 OTU1e/2/2e
4x, 8x and 10x 10G Fiber Channel
Other optical links
SFP+ Transceivers
| 10G SFP Module | SFP-10G-SR | SFP 10G 850nm 300M LC DOM |
| SFP-10G-LR | SFP 10G 1310nm 10KM LC DOM | |
| SFP-10G-ER | SFP 10G 1310nm 40KM LC DOM | |
| SFP-10G-ER | SFP 10G 1550nm 40KM LC DOM | |
| SFP-10G-ZR | SFP 10G 1550nm 80KM LC DOM | |
| SFP-10G-ZR-100 | SFP 10G 1550nm 100KM LC DOM | |
| SFP-10G-ZR-120 | SFP 10G 1550nm 120KM LC DOM |

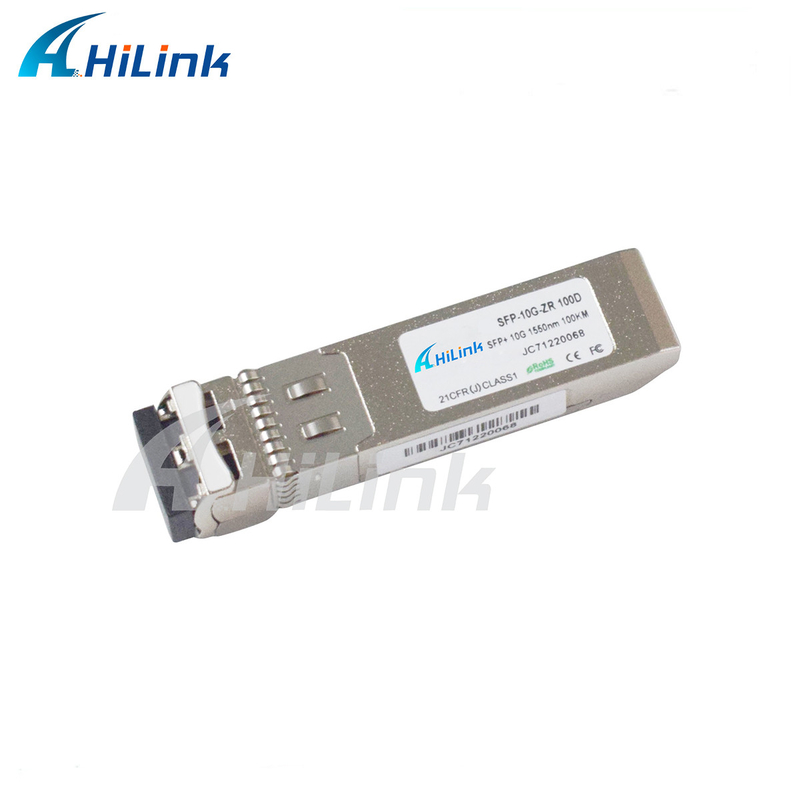

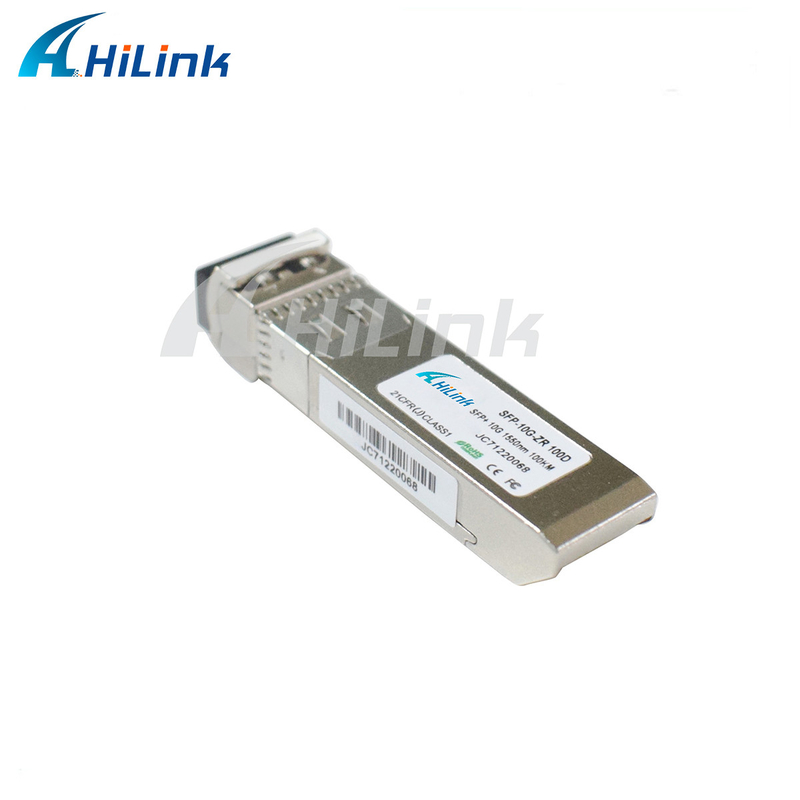

Product Picture
Optical Characteristics (TOP(C) = 0 to 70 ℃, TOP(I) =-40 to 80 ℃,VCC = 3.13 to 3.47 V)
| Parameter | Symbol | Min. | Typ | Max. | Unit | Note |
| Transmitter | ||||||
| Operating Wavelength | λ | 1530 | 1565 | nm | ||
| Ave. output power (Enabled) | PAVE | 0 | 5 | dBm | 1 | |
| Side-Mode Suppression Ratio | SMSR | 30 | dB | |||
| Extinction Ratio | ER | 9 | dB | |||
| RMS spectral width | Δλ | 1 | nm | |||
| Relative Intensity Noise | RIN | -128 | dB/Hz | |||
| Output Optical Eye | Compliant with IEEE 0802.3ae | |||||
| Receiver | ||||||
| Operating Wavelength | λ | 1260 | 1600 | nm | ||
| Receiver Sensitivity | PSEN1 | -25 | dBm | 2 | ||
| Recevier Reflectance | Rrx | -27 | dB | |||
| Overload | PAVE | -7 | dBm | |||
| LOS Assert | Pa | -37 | dBm | |||
| LOS De-assert | Pd | -28 | dBm | |||
| LOS Hysteresis | Pd-Pa | 0.5 | dB | |||
Notes:
1. Measured with worst ER=9dB
2. PRBS 231 – 1 and BER<10-12@10.3125G
Package Dimensions
.
Ordering Information
| Part Number | Description |
| HLSP551XL-C(I)DH1 | SFP+,9.95 to 11.3Gb/s, 1550nm EML,100km, 0~70℃, with DDM |
| HLSP551XL-C(I)DH1 | SFP+,9.95 to 11.3Gb/s, 1550nm EML, 100km, -5~80℃, with DDM |
FAQ
Q:Do you sell second-hand products?
A:No.All our products are brand new,we never use secont-hand components.
Q:What payment terms do you accept?
A:T/T,Paypal,Western Union are acceptable.
Q:What are the shipping ways can you offer?
A:Our usual shipping ways are DHL,FedEX,TNT,UPS,EMS etc.It will take 3-7days.
Q:Do your products come with warranty?
A:Yes,We provide 3 years warranty for all our products from the date of shipment.
Q:How to place an order?
A:1>Order details confirmed,please tell us the model and quantity you need.
2>Proforma Invoice confirmed, the order will be arranged upon receipt of your payment.
3>Confirm and ship the goods, then tracking number will be sent to you promptly.
4>We will help to track your goods until you receive them safely.
As we have various kinds of products,if you can't find the correct item you need,please send us inquiry.We will reply shortly.
