| Connector: | FC/APC Or SC/APC | Product Name: | MINI 1550NM CATV EDFA |
|---|---|---|---|
| External Power: | DC +5V | Operating Wavelength: | 1530~1565nm |
| Input Power: | -5 ~ +10 DBm | Output Power: | 13-24 Dbm |
| High Light: | FTTB Network Mini EDFA,Mini 1550nm CATV EDFA,CATV Mini EDFA |
||
Product Description

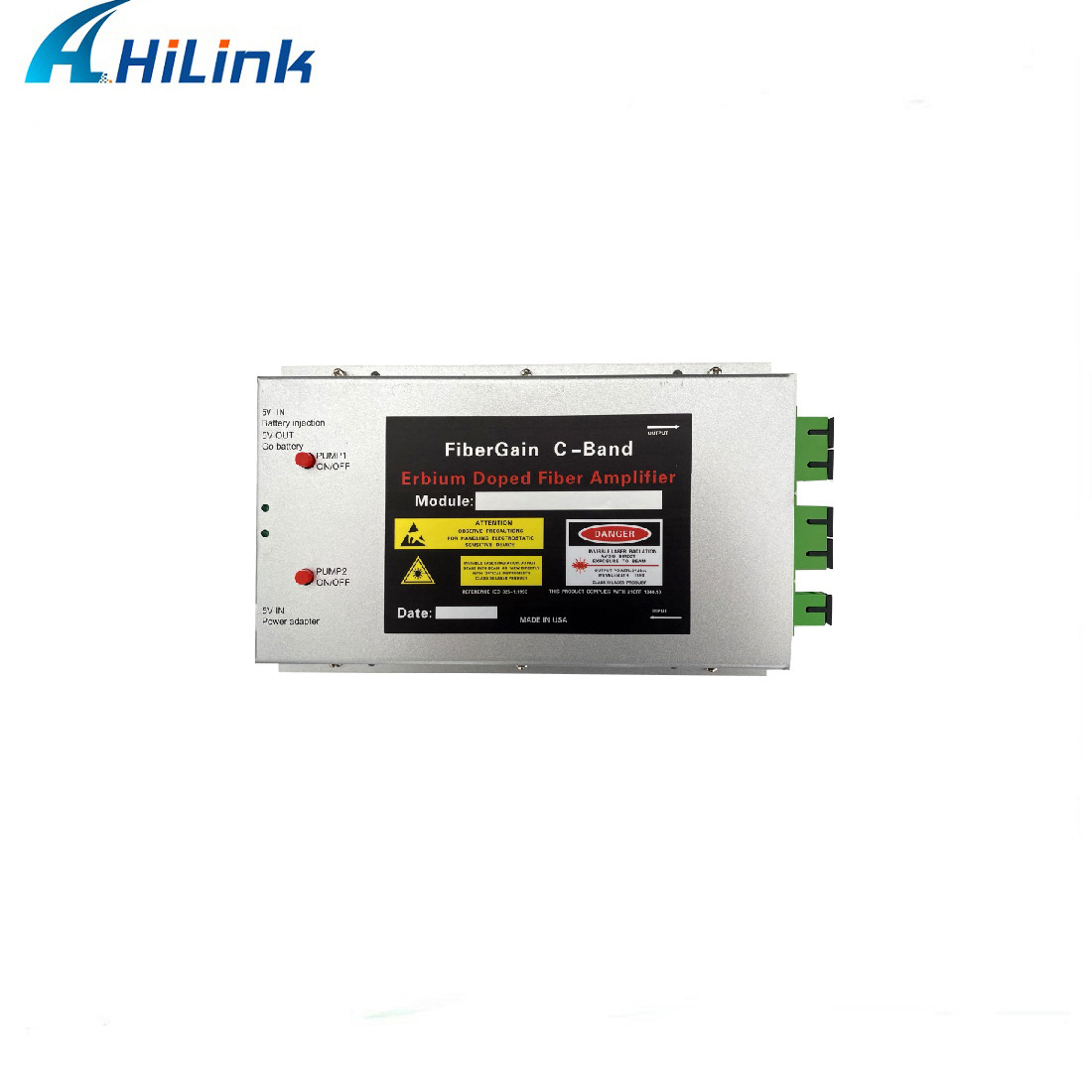

MINI EDFA 1550nm CATV EDFA Optical Line Amplifier Optical Amplifier
MINI EDFA 1550nm building optical amplifiers are mainly used in CATV FTTB network.
Schematic diagram of
Features
Ø DC +5V external power supply,5W low consumption.
Ø Optical Input Power Range: -5 ~ +10 dBm
Ø Optical Input Wavelength Range: 1530~1565nm
Ø Optical power receiving range -10dBm ~ +10dBm,optical power output 13~24dBm.
Ø Optical Output Port 1~4 port &Every output power: 13~18dBm
Ø With output optical power control ON/OFF
Ø Output Power Stability: ±0.1dBm
Ø Noise Figure: ≤ 5dB @0dBm
Ø C/N:≥ 50dB;C/CTB:≥ 63dB;C/CSO:≥ 63dB
Ø Operating Temperature: -5 ~ +55℃
Technical data sheet
| Project | Unit | Technical parameters | Notes | |
| Bandwidth | Nm | 1530-1565 | ||
| Input power range | dBm | -5-+10 | Recommended input optical power 0-+5dBm | |
| Output optical power | dBm | 13-24 | ||
| Output power stability | dBm | ±0.1 | ||
| Noise figure | dB | ≤5.0&INPUT 0dBm | ||
| Reflection loss | dB | ≥45 | Input terminal | |
| dB | ≥45 | Output terminal | ||
| Pump leak power | dBm | ≤-30 | Input terminal | |
| dBm | ≤-30 | Output terminal | ||
| CNR | dB |
≥52 |
||
| C/CTB | dB | ≥63 | ||
| C/CSO | dB | ≥63 | ||
| Optical connector type | FC/APC or SC/APC | |||
| Power adapter voltage | V | Input:AC160V-250V(50~60Hz) output:DC5V | ||
| EDFA Operating Voltage: | DC +5V | |||
| EDFA Consumption: | W | ≤ 5W | ||
| Operating temperature | ℃ | -5 - +55 | ||
| Maximum operating relative humidity | % | Max 95% no condensation | ||
| Storage temperature | ℃ | -30 - +70 | ||
| Maximum storage relative humidity | % | Max 95% no condensation | ||
Real Picture
