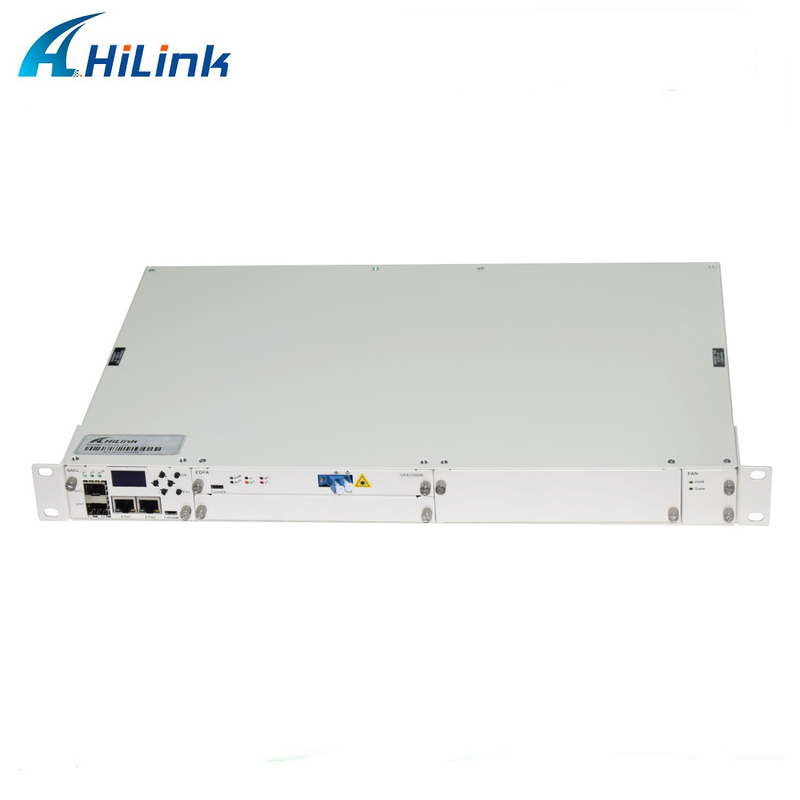

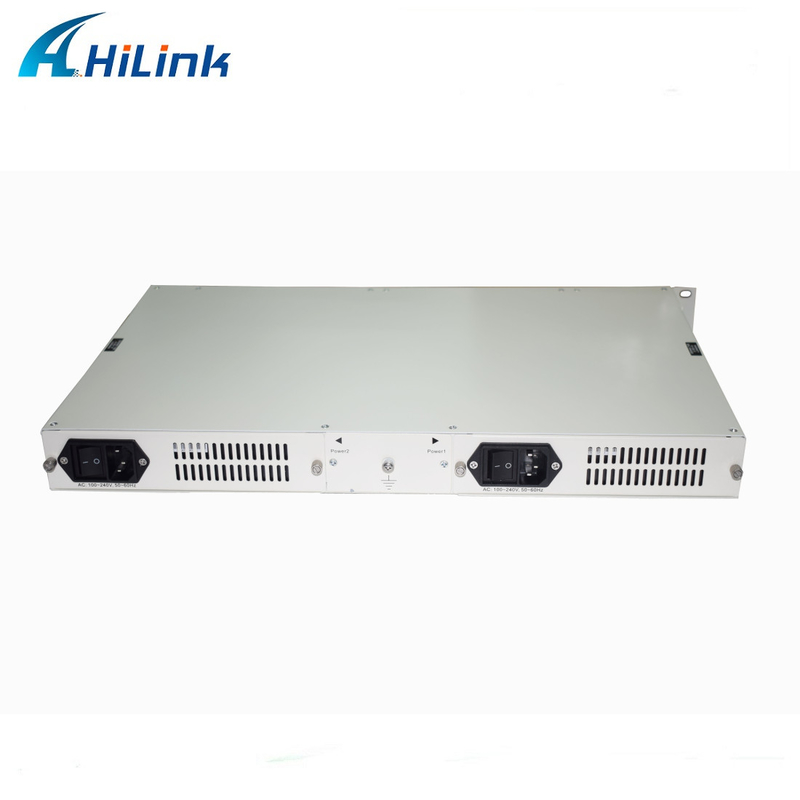

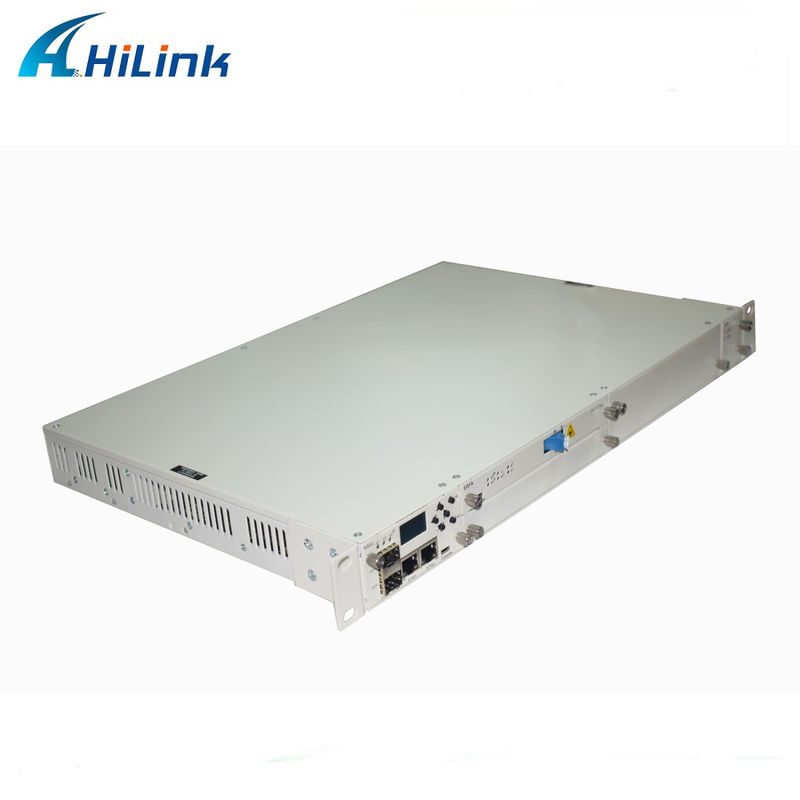

C-band Optical Fiber Amplifier 1U Integrated Multi Channels DWDM System DWDM EDFA BA PA

Name: C Band Optical Fiber Amplifier 1U Integrated Multi Channels DWDM EDFA BA PA
Brand: Hilink
SKU: HL-EDFA
Rating: 4.5 (181 reviews)

Product Description

The product is multi-channel EDFA of support dispersion compensation modules insertion, high flattening and high stable output.The product can amplify of before and after by double-pumped, offset the insertion loss dispersion compensation module and has the better transmission performance index than unipolar amplification of high gain. The kernel component of the product is high availability pump laser and high-performance gain flattening filters. The product has high stable output, high gain flatness and high reliability by using unique APC (automatic power control) and ATC (automatic temperature control). The system’s flatness and noise can achieve the best optimization by the gain flattening filters of professional design. The system is convenient to regulation and display, reliable, intelligent by using high stable and high precision MPU.

Features

* Low-noise high flatness design
* Adjustable output power
* High precision ATC keep system stableoperation
* Precision AGC / APC circuit keeps the output Power stability
* Card design highly integrated, space-saving cabinet
* Expansion is very convenient
* Strict accordance with Bellcore GR-1312-CORE
* Requirement for design

OPA:

Project		Unit	Technical parameters	Notes
Work wavelength range(λ)		nm	1546.12~1561.42nm	ITU16CH
Work wavelength range(λ)		nm	1535.04~1562.23nm	ITU32CH
Work wavelength range(λ)		nm	1529.55~1563.86nm	ITU44CH
No. of Working channel		ch	1~44
Input power range		dBm	-35~-10
Output power range		dBm	-10~17
Gain			14~33
Variable Output Power Range		dBm	0~-20
Output power stability		dBm	±0.5
Noise figure		dB	≤5.0
Gain flatness		dB	0.6~1.5	Peak to Peak
Reflection loss	Input terminal	dB	>=45
Reflection loss	Output terminal	dB	>=45
Pump leak power	Input terminal	dBm	≤30
Pump leak power	Output terminal	dBm	≤30
Optical connector type			FC/APC or SC/APC or LC/APC FC/UPC or SC/UPC or LC/UPC
Power supply voltage		V	AC160V-250V (50Hz) or DC-48V
Operating temperature range		℃	-5 ~ +55
Maximum operating relative humidity		%	Max 95% no condensation
Storage temperature range		℃	-30 - +70
Maximum storage relative humidity		%	Max 95% no condensation

OBA:

Project		Unit	Technical parameters	Notes
Work wavelength range(λ)		nm	1546.12~1561.42nm	ITU16CH
Work wavelength range(λ)		nm	1535.04~1562.23nm	ITU32CH
Work wavelength range(λ)		nm	1529.55~1563.86nm	ITU44CH
No. of Working channel		ch	1~44	Recommended input optical power -3-+6dBm
Input power range		dBm	-10 ~ +6	Optional scope: 10~17 10~20 11~21
Output power range		dBm	10~ 21
Gain			14~33
Variable Output Power Range		dBm	0~-20
Output power stability		dBm	±0.5
Noise figure		dB	≤5.0
Gain flatness		dB	0.6~1.5
Reflection loss	Input terminal	dB	>=45
Reflection loss	Output terminal	dB	>=45
Pump leak power	Input terminal	dBm	≤-30
Pump leak power	Output terminal	dBm	≤-30
Optical connector type			FC/APC or SC/APC or LC/APC FC/UPC or SC/UPC or LC/UPC
Power supply voltage		V	AC160V-250V(50Hz)orDC-48V
Operating temperature range		℃	-5 ~ +55
Maximum operating relative humidity		%	Max 95% no condensation
Storage temperature range		℃	-30 ~ +70
Maximum storage relative humidity		%	Max 95% no condensation

Applications

* C-band 40/80CH DWDM

* Other optical system
