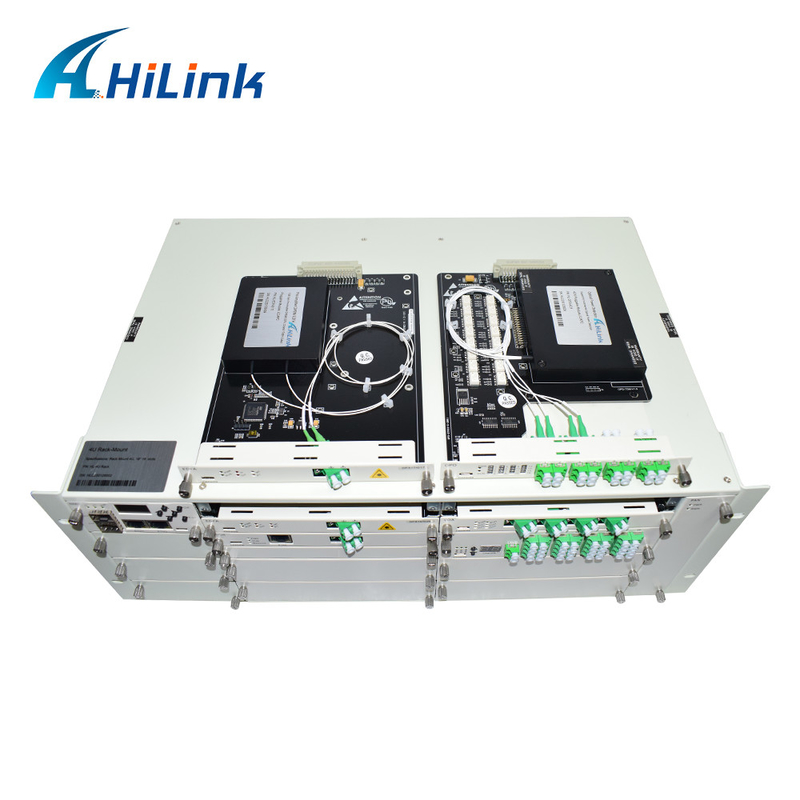

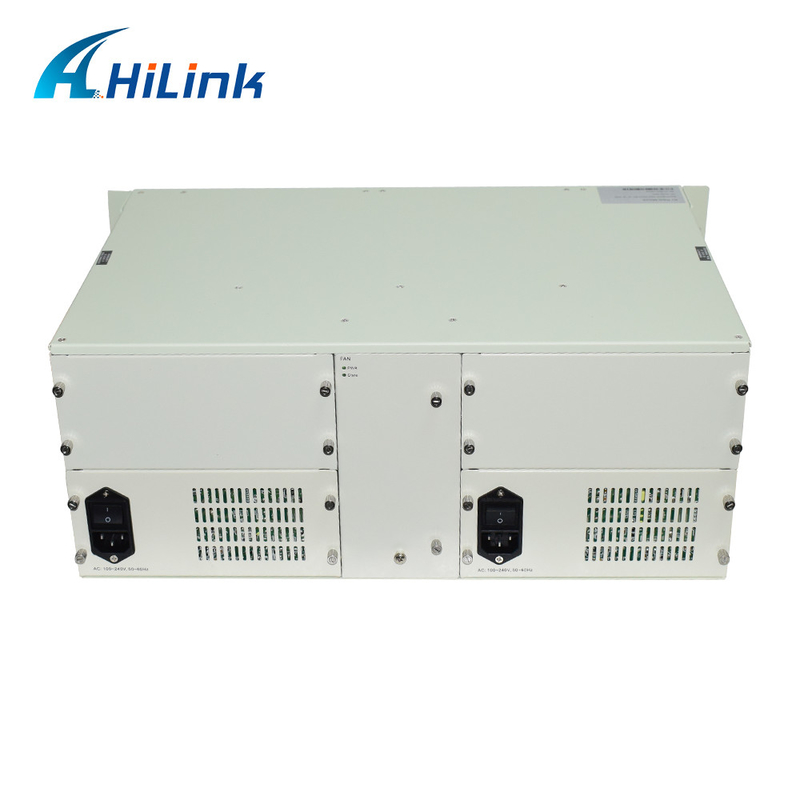

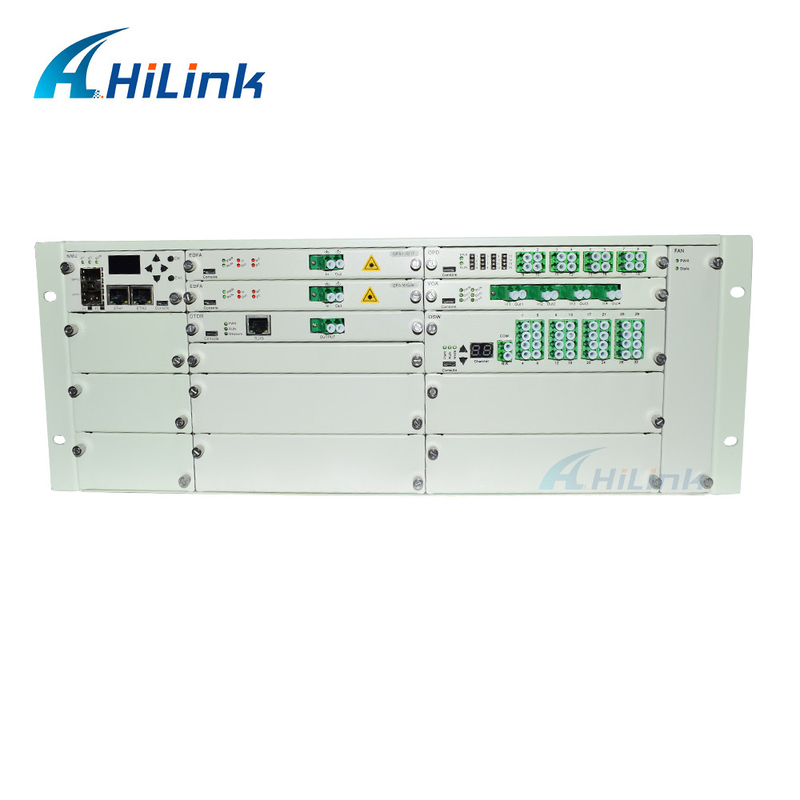

4U Rack Mount With EDFA / VOA / OSW Fiber Optic Equipment Chassis Amplifier Optica

Product Description

4U Rack Mount with EDFA/OTDR/OPD/VOA/OSW Fiber Optic Equipment Chassis Amplifier Optica





Multi-channel EDFA Card





General:

The product is multi-channel EDFA of high flattening and high stable output. The kernel component of the product is high availability pump laser and high-performance gain flattening filters. The product has high stable output, high gain flatness and high reliability by using unique APC (automatic power control) and ATC (automatic temperature control). The system’s flatness and noise can achieve the best optimization by the gain flattening filters of professional design. The system is convenient to regulation and display, reliable, intelligent by using high stable and high precision MPU.



Features:

Low-noise high flatness design

Adjustable output power

High precision ATC keep system stable operation

Precision AGC / APC circuit keeps the output

Power stability

Card design highly integrated, space-saving cabinet

Expansion is very convenient

Strict accordance with Bellcore GR-1312-CORE

requirement for design



Application:

C-band 40/80CH DWDM

Other optical systems



OPD Card



General:

       OPD Optical power detection is a kind of optical power monitoring equipment. Which can carry on the high precision optical power detection. Detecting wavelength can be customized, Support online sampling or offline.



Features:

High optical power monitoring accuracy

Wide optical power monitoring scope

Application:

DWDM system

Optical cable fiber monitoring system



OSW Card

4/8 channels:

16/32 channels:

General:

       OSW Optical switches is a kind of optical path control equipment, with automatic scanning optical path and manual switch optical path, it is mainly used in optical communication, such as: Optical fiber cable monitoring routing switch, the data link light gathering routing switch, etc.



Features:

Low insertion loss, fast switching

Work channel digital display, intuitive

Can be set automatically scan, switching time interval from 1 second to 99 hours 59 minutes and 59 seconds

Can be set to scan the "initial channel" and the “ended channel”

Can be manual switch and configure parameters by the main control card with LCD screen or web



Appliction:

DWDM system

Optical cable fiber monitoring system



OTDR Card

General:

       OTDR optical time domain reflector, which can measure fiber length, optical fiber transmission attenuation, splice attenuation and fault location, etc. It can be applied to optical fiber cable monitoring, fiber optic cable construction and maintenance.



Features:

The measuring distance is 10~120km

Short dead zone

Coordinate with electronic map for positioning display



Appliction:



DWDM system

Optical cable fiber monitoring system



VOA Card



General:

       Variable optical attenuator is an online attenuation amount adjustment device. It is applied to the situation of optical power required strict control in network, which the most common is cooperation with EDFA.



Features:

Wide operating wavelength range 0~15dB

Ultra wide adjustable range

Regulation accuracy is 0.5dB

High multi channel attenuation stability

Single card supports signal attenuation of 1~4 channel

Online attenuation adjustment makes business is more safer

Automatically attenuation adjustment makes the network is intelligent



Appliction:

DWDM Network

Other Network
