1U Rack Mount DWDM Mux Demux Module 40CH Single / Dual Fiber LC / UPC Connector
1U Rack Mount DWDM Mux Demux Module 40CH Single / Dual Fiber LC / UPC Connector 1U Rack Mount DWDM Mux Demux Module 40CH Single / Dual Fiber LC / UPC Connector 1U Rack Mount DWDM Mux Demux Module 40CH Single / Dual Fiber LC / UPC Connector

1U Rack Mount DWDM Mux Demux Module 40CH Single / Dual Fiber LC / UPC Connector

Product Details:
Place of Origin: China
Brand Name: HILINK
Certification: CE FCC Rohs
Model Number: HL-AWG -40CH
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Box & carton or customized package
Delivery Time: 1-6working days
Payment Terms: T/T, Western Union, MoneyGram,Paypal
Supply Ability: 5000pcs/month
Contact Now
  • Detail Information
  • Product Description

Detail Information
Product Name: 40CH AAWG Channel: 40CH
Channel Spacing: 100GHZ Connector: LC/UPC
RoHS: Compliant Warranty: 1 Year
High Light:

DWDM Mux Demux Module

,

1U Rack Mount DWDM Mux Demux

,

100GHZ LC/UPC DWDM Mux Demux

Product Description

1U Rack Mount 40CH Single / Dual Fiber DWDM Mux Demux Module LC/UPC Connector



1. Features:

High Channel Isolation
Low Insertion Loss
Optical Path Epoxy Free
Telcordia 1221 Compliant
Ultra Low TDL
Compact Design
DWDM MUX is based on the use of the wavelength ITU grid
C Band
Channel spacing: 0.8nm(100GHz Grid)
Protocol transparent (10Mbps to 100Gbps)
Compliant to G.657A1 standard
ISO 9001 manufacturing facility
Wide Operating Temperature: -40~+85℃



2. Applications
Dense WDM System
PON Networks
CATV Links
Telecommunication
Fiber optical amplifier
Metro/Access/FTTH

3.Wavelength Plan


Ch. No.Freq (THz)WL (nm)Ch. No.Freq (THz)WL (nm)
1C60196.001529.55321C40194.001545.322
2C59195.901530.33422C39193.901546.119
3C58195.801531.11623C38193.801546.917
4C57195.701531.89824C37193.701547.715
5C56195.601532.68125C36193.601548.515
6C55195.501533.46526C35193.501549.315
7C54195.401534.25027C34193.401550.116
8C53195.301535.03628C33193.301550.918
9C52195.201535.82229C32193.201551.721
10C51195.101536.60930C31193.101552.524
11C50195.001537.39731C30193.001553.329
12C49194.901538.18632C29192.901554.134
13C48194.801538.97633C28192.801554.940
14C47194.701539.76634C27192.701555.747
15C46194.601540.55735C26192.601556.555
16C45194.501541.34936C25192.501557.363
17C44194.401542.14237C24192.401558.173
18C43194.301542.93638C23192.301558.983
19C42194.201543.73039C22192.201559.794
20C41194.101544.52640C21192.101560.606

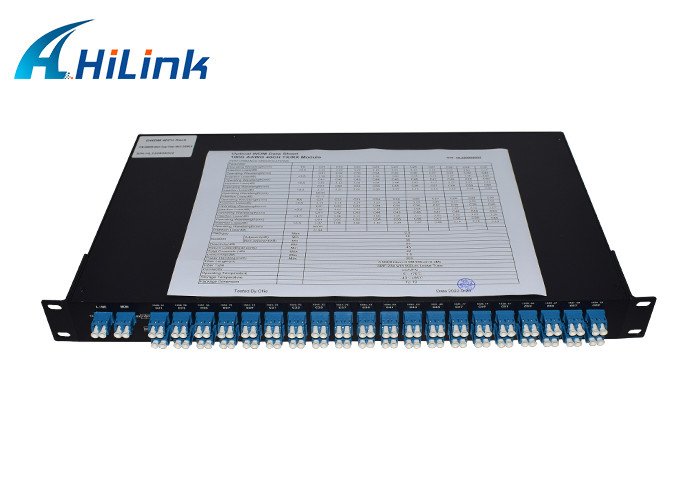

1U Rack Mount DWDM Mux Demux Module 40CH Single / Dual Fiber LC / UPC Connector 0

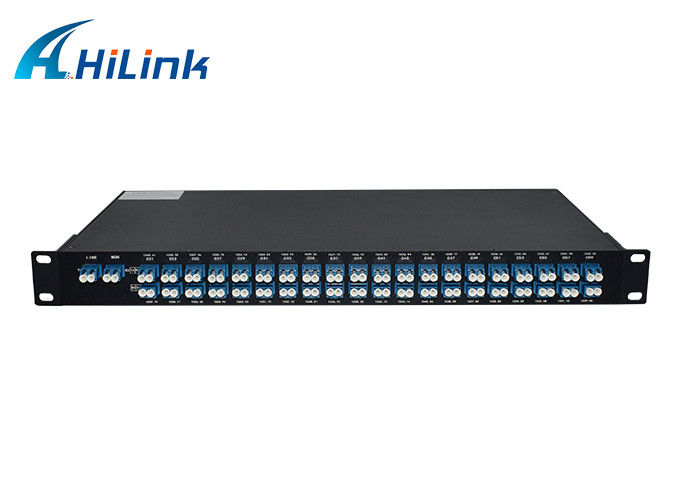

1U Rack Mount DWDM Mux Demux Module 40CH Single / Dual Fiber LC / UPC Connector 11U Rack Mount DWDM Mux Demux Module 40CH Single / Dual Fiber LC / UPC Connector 2

The test report will be  provided when the products are delivered.
Following characteristic test data should be included.

  • Insertion loss (room temperature)

Represents the worst case over ±0.10nm around the ITU wavelength with connector.

  • PDL (room temperature)

Measured on average polarization over±0.10nm around the ITU wavelength with connector.

  • Fiber length﹑Fiber type and Pigtail type etc
  • PN,SN/PN﹑SN bar code
