Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | HILINK |
| Certification: | CE FCC Rohs |
| Model Number: | HL-SFP-1.25G-200KM |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1pcs |
| Price: | Negotiable |
| Packaging Details: | Blister Packaging 10pcs/tray |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 500/week |
|
Detail Information |
|||
| Data Rate: | 1.25G | Distance: | 200KM |
|---|---|---|---|
| Connector: | Dual LC/UPC | Wavelengh: | 1550nm |
| Fiber: | SMF | CE FCC: | Support |
| High Light: | Gigabit Ethernet SFP Transceiver DOM Module,1000BASE 200KM SFP Transceiver DOM Module,GLC-ZX-SM 1550nm SFP Transceiver DOM Module |
||
Product Description
Gigabit Ethernet GLC-ZX-SM 1550nm 1000BASE 200KM SFP Transceiver DOM Module
General:
HILINK GLC-ZX-SM Transceiver is a high performance, cost effective module which have a duplex LC optics interface. Standard AC coupled CML for high speed signal and LVTTL control and monitor signals. The receiver section uses an APD receiver and the transmitter uses a 1550 nm DFB laser, up to 42dB link budge ensure this module 1000Base Ethernet 200km application.
Features:
Up to 1.25Gb/s Data Links
Hot-Pluggable
Duplex LC connector
Up to 200km on 9/125μm SMF
1550nm COOLED DFB laser transmitter
APD Receiver
Single +3.3V Power Supply
Monitoring Interface Compliant with SFF-8472
Maximum Power<1.5W
Operating temperature range:Commercial: 0°C to 70°C,Industrial: -40°C to +85°C
RoHS compliant and Lead Free
Applications:
Gigabit Ethernet
1.06 Gb/s Fibre Channel
Metro/Access Networks
1.25 Gb/s 1000Base-EZX Ethernet
1×Fibre Channel
Other Optical Links
1000Base Transceiver Series:
| GLC-SX | 100BASE-SX SFP 850nm LC 550M |
| GLC-LX/LH | 100BASE-LH SFP 1310nm LC 10KM |
| GLC-EX-1310 | 100BASE-EX SFP 1310nm LC 40KM |
| GLC-EX-1550 | 100BASE-EX SFP 1510nm LC 40KM |
| GLC-ZX | 100BASE-ZX SFP 1550nm LC 80KM |
| GLC-ZX-120 | 100BASE-ZX SFP 1510nm LC 120KM |
| GLC-ZX-160 | 100BASE-ZX SFP 1550nm LC 160KM |
| GLC-ZX-200 | 100BASE-ZX SFP 1510nm LC 200KM |

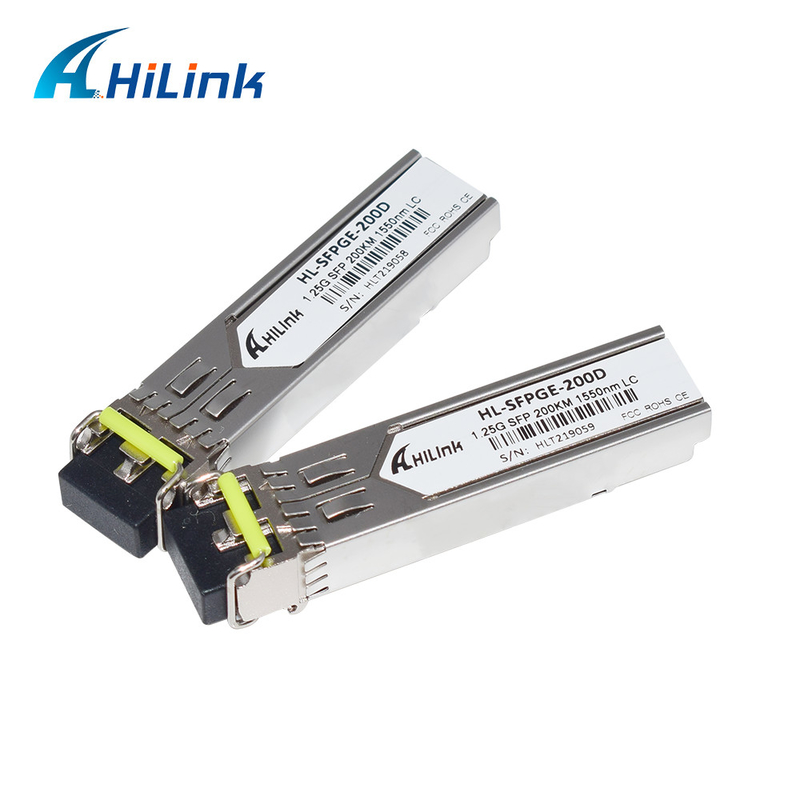

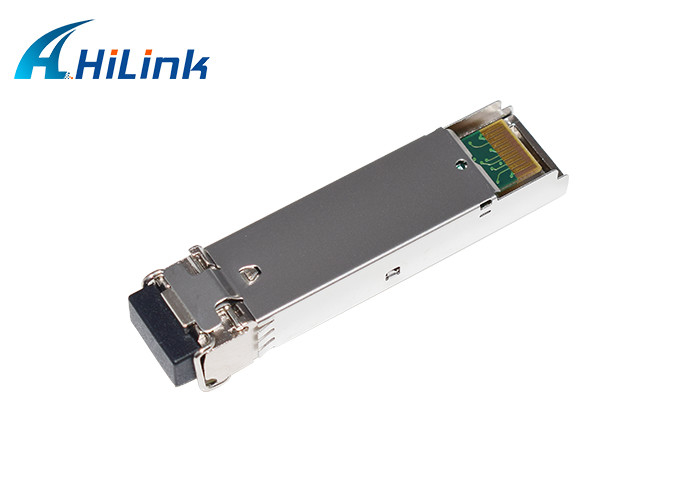

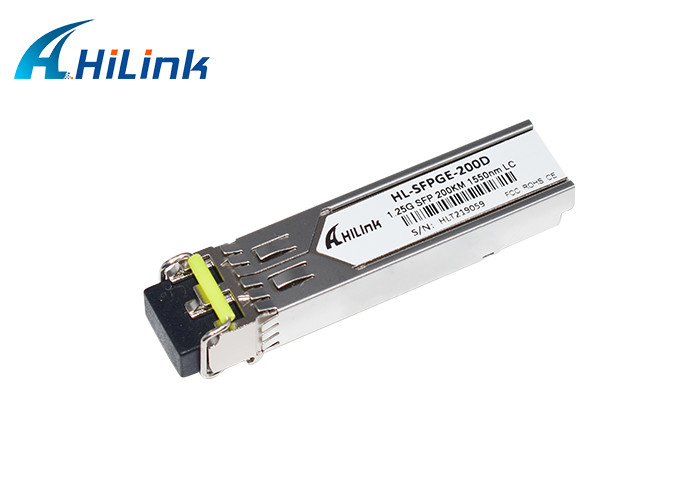

Product Picture:
Optical Characteristics (TOP=25°C, Vcc=3.3 Volts)Os
|
Parameter |
Symbol |
Min. |
Typical |
Max. |
Unit |
Note |
|
Transmitter Section: |
||||||
|
Center Wavelength |
λc |
1530 |
1550 |
1570 |
nm |
|
|
Spectral Width |
σ |
|
|
1 |
nm |
|
|
Side Mode Suppression Ratio |
SMSR |
30 |
|
|
dB |
|
|
Optical Output Power |
Pout |
+3 |
|
+7 |
dBm |
1 |
|
Extinction Ratio |
ER |
9 |
|
|
dB |
|
|
Optical Rise/Fall Time |
tr / tf |
|
|
260 |
ps |
2 |
|
Relative Intensity Noise |
RIN |
|
|
-120 |
dB/Hz |
|
|
Output Eye Mask |
Compliant with IEEE802.3 z (class 1 laser safety) |
|
||||
|
Receiver Section: |
|
|||||
|
Optical Input Wavelength |
λc |
1270 |
|
1610 |
nm |
|
|
Receiver Overload |
Pol |
-7 |
|
|
dBm |
4 |
|
RX Sensitivity |
Sen |
|
|
-37 |
dBm |
4 |
|
RX_LOS Assert |
LOS A |
-46 |
|
|
dBm |
|
|
RX_LOS De-assert |
LOS D |
|
|
-39 |
dBm |
|
|
RX_LOS Hysteresis |
LOS H |
0.5 |
|
|
dB |
|
|
General Specifications: |
||||||
|
Data Rate |
BR |
|
1.25 |
|
Gb/s |
|
|
Bit Error Rate |
BER |
|
|
10-12 |
|
|
|
Max. Supported Link Length on 9/125μm SMF@1.25Gb/s |
LMAX |
|
|
200 |
km |
|
|
Total System Budget |
LB |
40 |
|
|
dB |
|
Note:
1. The optical power is launched into SMF.
2. 20-80%.
3. Jitter measurements taken using Agilent OMNIBERT 718 in accordance with GR-253.
4. Measured with PRBS 27-1 at 10-12 BER
Mechanical Specifications:
FAQ:
Q:Do you sell second-hand products?
A:No.All our products are brand new,we never use secont-hand components.
Q:What payment terms do you accept?
A:T/T,Paypal,Western Union are acceptable.
Q:What are the shipping ways can you offer?
A:Our usual shipping ways are DHL,FedEX,TNT,UPS,EMS etc.It will take 3-7days.
Q:Do your products come with warranty?
A:Yes,We provide 3 years warranty for all our products from the date of shipment.
Q:How to place an order?
A:1>Order details confirmed,please tell us the model and quantity you need.
2>Proforma Invoice confirmed, the order will be arranged upon receipt of your payment.
3>Confirm and ship the goods, then tracking number will be sent to you promptly.
4>We will help to track your goods until you receive them safely.
As we have various kinds of products,if you can't find the correct item you need,please send us inquiry.We will follow up shortly.
