Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | HILINK |
| Certification: | CE FCC Rohs |
| Model Number: | HL-GPON-SFP-C++ |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1pcs |
| Price: | Negotiable |
| Packaging Details: | Blister Packaging |
| Delivery Time: | 3-5 Working Days |
| Payment Terms: | T/T, Western Union, MoneyGram,Paypal |
| Supply Ability: | 100PCS Per Day |
|
Detail Information |
|||
| Wavelength: | 1490/1310nm | Data: | 1.25Gbs |
|---|---|---|---|
| Distance: | 20KM | Package: | SFP |
| Transmitter: | DFB LD | Receiver: | APD |
| High Light: | Hilink GPON SFP Transceiver Module,C++ 7dB Tx1490nm SFP Transceiver Module,2.5G Rx1310nm SFP Transceiver Module |
||
Product Description
Hilink GPON SFP C++ 7dB Tx1490nm 2.5G Rx1310nm 1.25G SC/UPC 20KM Transceiver
Hilink’s GPON OLT SFP C++, 20km primarily enables bandwidth 2.5G optical links over single-mode fiber terminated with SC/UPC simplex connectors and can be used in commercial temperature environment for interoperability with 1000BASE-BX interfaces.
Features
Support ITU-T G.984.2 GPON OLT C++ application
Single fiber bi-directional data links with symmetric 2.488Gbps Tx and 1.244Gbps Rx
1490nm continuous-mode transmitter with DFB LD
1310nm burst-mode receiver with APD-TIA
2-wire interface for integrated digital diagnostic Monitoring
Receiver RESET, Signal Detect, RSSI function indication (RESET, RX_SD, RSSI)
SFP package with SC/UPC receptacle optical interface
Single +3.3V power supply
Operation case temperature 0~70°C
RoHS6 compliance
Optical Characteristics
| Parameter | Symbol | Min | Typ | Max | Unit | |||
| Transmitter | ||||||||
| Center Wavelength | λ | 1480 | 1490 | 1510 | nm | |||
| Spectral Width (-20dB) | Δλ | 1 | nm | |||||
| Side Mode Suppression Ratio | SMSR | 30 | dB | |||||
| Mean Launched Power | 4.5 | 8 | dBm | |||||
| Mean Launched Power (Tx Off) | -45 | dBm | ||||||
| Extinction ratio | ER | 8.2 | dB | |||||
| Optical Return Loss Tolerance | -15 | dB | ||||||
| Transmitter and dispersion Penalty | TDP | 1 | dB | |||||
| Transmitter Mask (PRBS2²³-1 @2.488G) | Compliant With ITU-T G.984.2 | |||||||
| Receiver | ||||||||
| Center Wavelength | λ | 1290 | 1310 | 1330 | nm | |||
| Sensitivity (PRBS223-1@1.244G,ER=10,BER<10-10) |
-30 | dBm | ||||||
| Overload (PRBS223-1@1.244G,ER=10,BER<10-10) |
-12 | dBm | ||||||
| Receiver Burst Mode Dynamic Range | 15 | dB | ||||||
| Damage Threshold for Receiver | 5 | dBm | ||||||
| SD Assert Level | -33 | dBm | ||||||
| SD De-assert Level | -45 | dBm | ||||||
| SD Hysteresis | 0.5 | 6 | dB | |||||
| WDM Filter isolation to 1550nm | 38 | dB | ||||||
| WDM Filter isolation to 1650nm | 35 | dB | ||||||
Compatibility
Hilink optical Transceiver 100% compatibility: Cisco, Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, D-link, Alcatel, Mikrotik, Finisar, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.
Applications
FTTX Application

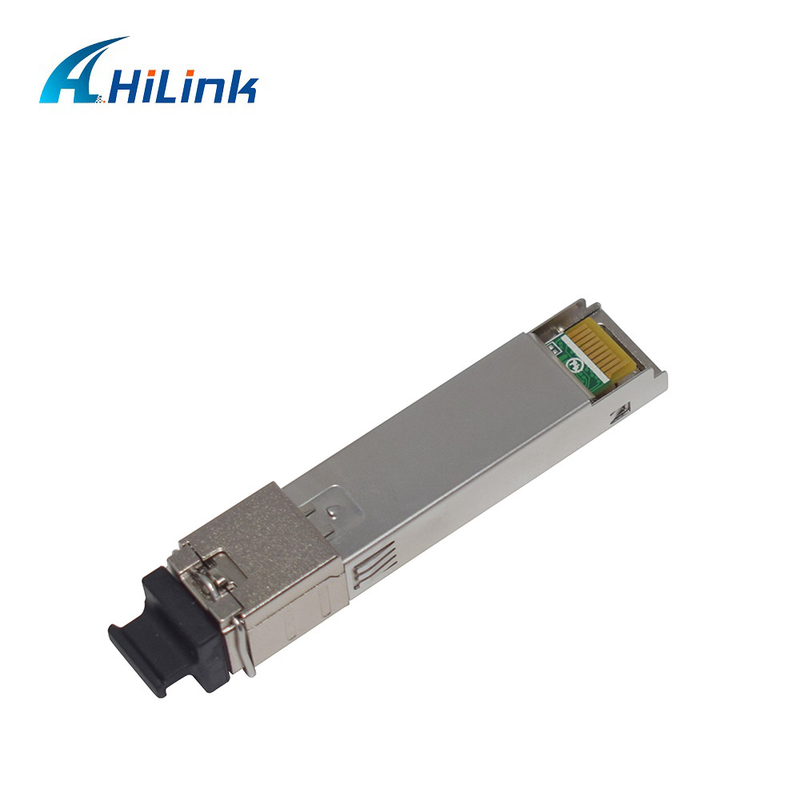

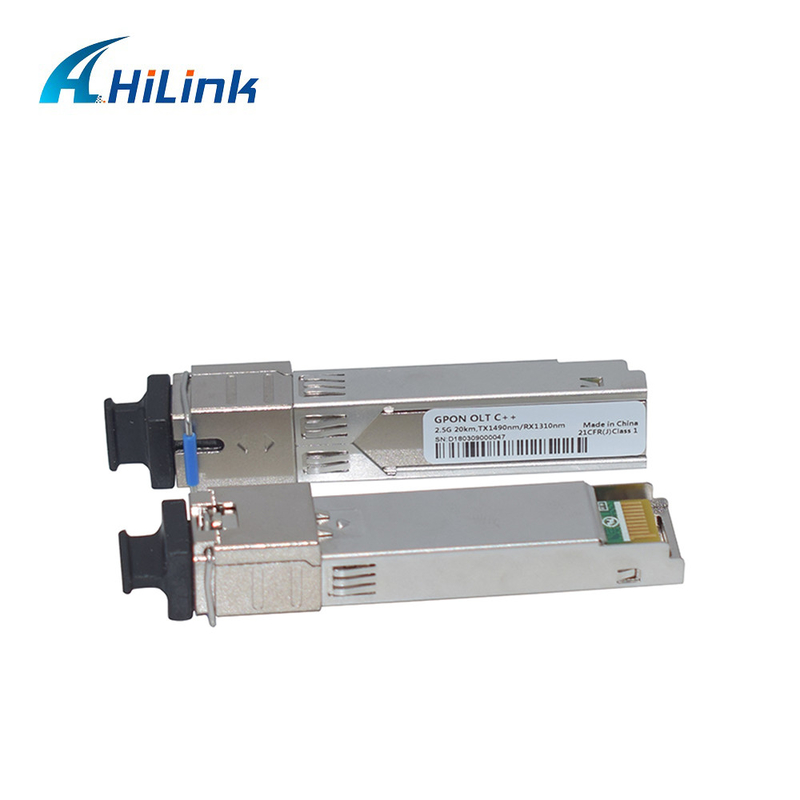

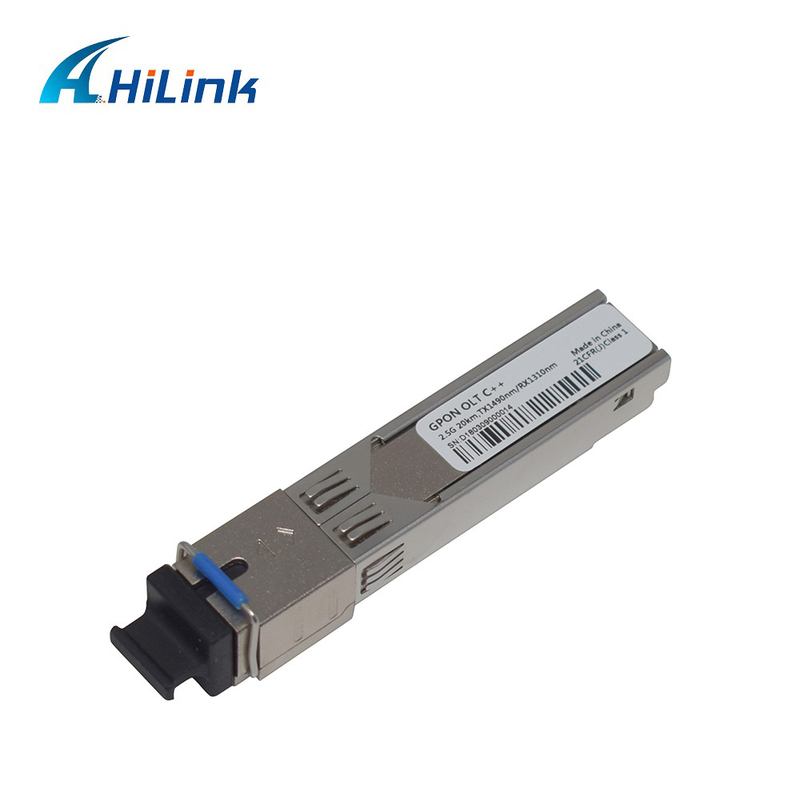

Details Photos
Hilink Advantages
1. Hilink ,a professional manufacturer established in 2007,Specialize in optical network communications with over 10 years experience.
2." Credit is the basis, quality is the first",all our products are new,we never use second-hand components.
3. Our optical transceivers are compatible with Cisco,Huawei, Ciena, H3C, HP, Extreme, Foundry, Brocade, Dlink, Alcatel, Riverstone,
Enterasys, Netgear, Nortel, Juniper, Ruijie, Zyxel, etc.
4. We provide 3 years warranty for all our fiber optical products from the date of shipment.
5. All of our QSFP, QSFP28, QSFP56, QSFP-DD, CWDM/DWDM/Bidi SFP/SFP+/XFP, AOC/DAC products pass CE,ROHS,FCC.
6. We also provide DWDM CWDM WDM optical solutions.
FAQ
1. Can I have a sample order? What is your MOQ?
Sample order is supported for testing the quality of goods. 1 piece is the MOQ.
Mixed samples are acceptable.
2. What is the lead time?
1-3 days after receiving the payment for the regular goods we normally keeping in stock;
For large quantity, you'll get support and details from your sales representative of HilinkTech.
3. What is the shipping way and how long is the period?
DHL, UPS, FedEx or TNT will be taken according to your option. The arrival normally takes 3-5 days .
4. What is your warranty?
3-year warranty.You'll get technique support, replacement or refund.
