Shenzhen HiLink Technology Co.,Ltd.

Deplex LC SM Fiber 100G Optical Fiber Module Long Distance 100KM With DDM

Product Details:
Place of Origin: China
Brand Name: Hilink
Certification: CE Rohs
Model Number: HL-QSFP-100G-eZR4
Payment & Shipping Terms:
Minimum Order Quantity: 1 pieces
Price: Send Inquiry know latest price
Packaging Details: Plastic box+Carton
Delivery Time: 5-8 working day
Payment Terms: T/T, Western Union,Alipay, Paypal/Wechat/Trade Assurance
Supply Ability: 2000 Pieces/Week
  • Detail Information
  • Product Description

Detail Information

Product Name: HL-QSFP-100G-eZR4 Data Rate: 100G
Reach: 100KM Use: Datacom
Maximum Power: 6w Certificates: CE/ROHS
High Light:

DDM Optical Fiber Module

,

100G Optical Fiber Module

,

SM Fiber 100G Transceiver Module

Product Description

Deplex LC SM Fiber 100G Optical Fiber Module Long Distance 100KM With DDM



Hilink Latest Product Deplex LC SM Fiber Long Distance 100G QSFP28 EZR4 100KM With DDM Fiber Optic Module



This 100G QSFP28 eZR4 is designed for 100km optical communication applications. This module contains 4-lane optical transmitter, 4-lane optical receiver and module management block including 2 wire serial inter-face. The optical signals are multiplexed to a single-mode fiber through an industry standard LC connector.



Recommended Operating conditions

Parameter

Symbol

Min.

Typical

Max.

Unit

Notes

Operating Case Temperature

TC

0



+70

°C



Power Supply Voltage

VCC

3.13

3.3

3.47

V



Power Supply Current

ICC





1.82

A



Maximum Power Dissipation

PD





6

W



Aggregate Bit Rate

BRAVE



103.125



Gb/s



Lane Bit Rate

BRLANE



25.78125



Gb/s



Transmission Distance

TD





100

km



Coupled fiber

Single mode fiber

9/125um SMF

Applications

  • Compliant with QSFP28 MSA

  • 4 cooled 25Gb/s channels LAN WDM EML TOSA

  • 4 channels SOA PIN photo detector

  • Single +3.3V power supply

  • Class 1 laser safety certified

  • Commercial operating temperature: 0oC to +70oC

  • Up to 100km on SMF with FEC

  • Duplex LC connector

  • RoHS 6/6 Compliant

Features

  • 100GBASE-ZR4 Ethernet links

  • Data center



Product Description

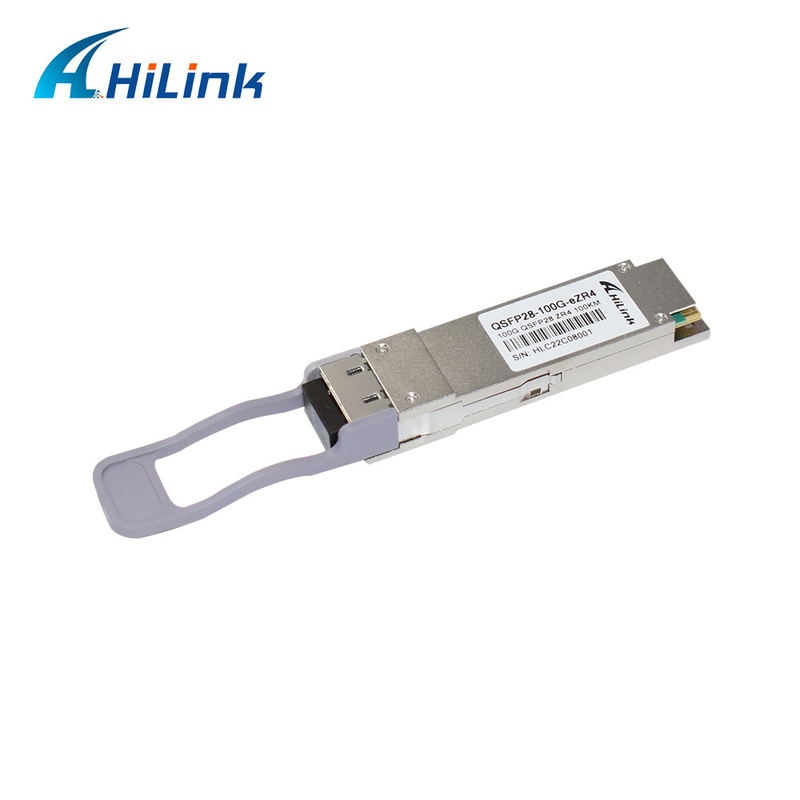

Real Picture

Deplex LC SM Fiber 100G Optical Fiber Module Long Distance 100KM With DDM 0





Order details

2~44Channels available. ​Com port: simplex or duplex. ​Fiber connector: LC/SC or other



Package: ABS plastic box, LGX metal cassette box, 19inch rack mount. ​DWDM Solutions and DWDM SFP/XFP.

Shipment & Payment ​1. International Express: DHL, Fedex, UPS, EMS, UPS, TNT and etc. ​2. Payment: T/T, Western Union, Paypal and so on.



Guarantee:

›& Brand new.

›& OEM/ODM is available. ​›& 100% through quality test and aging test. ​›& 3 years warranty (From the date of shipment).





Our Service

OEM/ODM order is available

We promise all the advertised optical modules are brand new and absolutely never use old and refurbished materials. All the optical modules have been through functional test and aging test. We provide 3 years warranty for all the optical transceivers from the date of shipment.
