1U HLDCI1600 WDM Solution Muxponde Optical Service Conversion Subsystem

Product Details:
Place of Origin: China
Brand Name: Hilink
Certification: CE FCC Rohs
Model Number: HL-DCI1600
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiation
Packaging Details: Plastic packaging, Carton
Payment Terms: L/C, T/T, Western Union, MoneyGram,Paypal
Supply Ability: 200PCS/month
  • Detail Information
  • Product Description

Detail Information

NameHL-DCI1600: DCI1600 Optical Service Conversion Subsystem Line Side Rate: 100/200/400G
Power Supply Voltage: AC100V~240V,50~60hz Or DC 36V~72V Working Temperature:: -10~60℃
Power Consumption: <350(Max) CE FCC: Support
High Light:

HLDCI1600 WDM Solution

,

WDM Solution Conversion Subsystem

,

Muxponde Optical Service

Product Description

1U HLDCI1600 WDM Solution Muxponde Optical Service Conversion Subsystem



1U HLDCI1600 100G/200G/400G CFP2 200G 2*200G 400G Muxponde Optical Service Conversion Subsystem



General

         HLDCI1600 optical service conversion subsystem is a service platform customized for data center interconnection (DCI) applications. It can achieve a maximum transmission capacity of 1.6Tbps. The line side has 8x200G CFP2 coherent optical paths, and the client side can access 16x100G QSFP28. Its powerful transmission capacity is very suitable for the using in data center computer rooms. At the same time, the platform adopts front and rear heat dissipation design, and is equipped with multiple sets of high-speed fans to ensure excellent heat dissipation performance.

Feature

1U chassis can reach the data transmission capacity up to 1.6T

Support 16x100G QSFP28 ports of client side

Support 100G/200G/400G CFP2 line interface

Support Web and SNMP management

Support OSC out-of-band management



Application

DWDM Network

Other Network

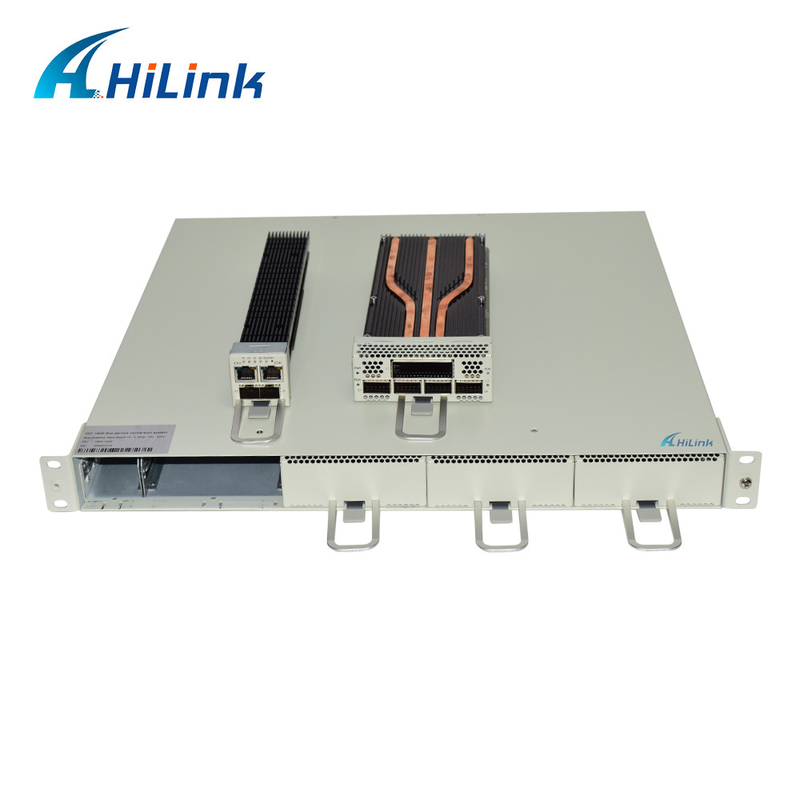

Modules for system configuration (changeable)

1U HLDCI1600 WDM Solution Muxponde Optical Service Conversion Subsystem 0

Performance Parameter:

Parameter Unit Performance Index
Max Transmission Capacity Tbps 1.6
Service Access Rate Gbps 100GE/100G OTU4
Line Side Rate Gbps 100/200/400
Coherent Modulation Technology   QPSK/8QAM/16QAM
Sourrounding Parameter Working Temperature -10~ 60℃
Storage Temperarure -40℃~ 85℃
Relative Moisture   5% ~ 95% (No condensation)
Size 1U mm 482.6W×400D×44.5H
Power Supply AC V 100~240,50~60hz
DC V 36~72
Power Consumption 1U W <350(Max)

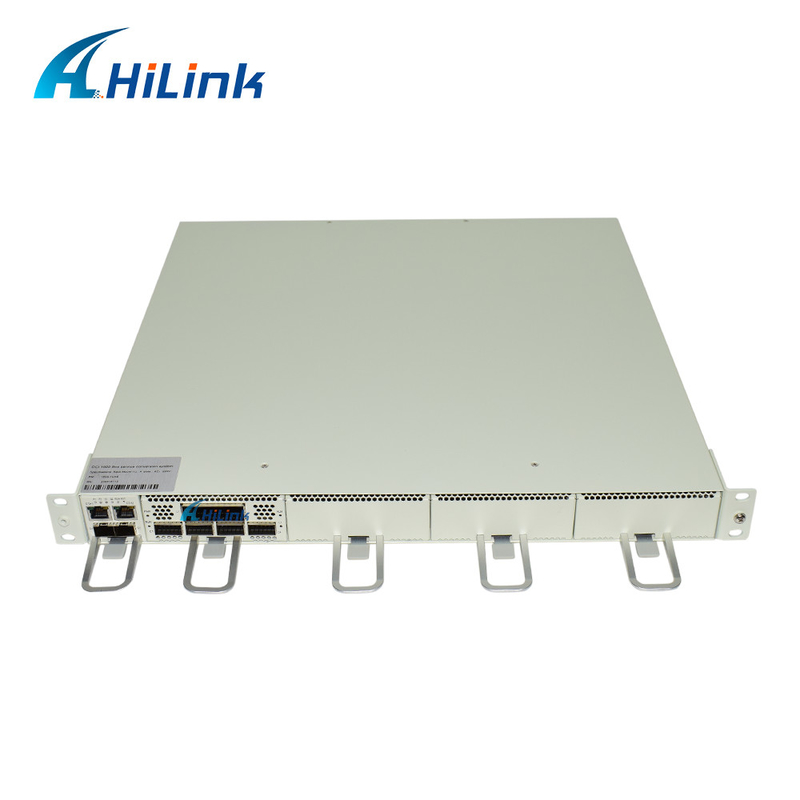

Product picture

1U HLDCI1600 WDM Solution Muxponde Optical Service Conversion Subsystem 1

1U HLDCI1600 WDM Solution Muxponde Optical Service Conversion Subsystem 21U HLDCI1600 WDM Solution Muxponde Optical Service Conversion Subsystem 31U HLDCI1600 WDM Solution Muxponde Optical Service Conversion Subsystem 4
