Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | Hilink |
| Certification: | CE FCC Rohs |
| Model Number: | HL-BOX1500P |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1pcs |
| Price: | Negotiation |
| Packaging Details: | box & carton or customized package for 40ch AAWG DWDM Module . |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 500/pcs/month |
|
Detail Information |
|||
| Key Words: | HLBOX1500P Box Type DWDM System | Transmission Capacity: | 8*100G |
|---|---|---|---|
| Optical Fiber Type: | G.652(SMF-28) | Operating Temperature: | -10~ 60℃ |
| Storage Temperature: | -40℃~ 85℃ | Power Supply: | AC 100~240,50~60hz |
| Application: | WDM Solution | Warranty: | 1 Year |
| High Light: | Box Type DWDM System,120KM DWDM Solution,DWDM 1U Solution |
||
Product Description
1U HLBOX1500P Box Type DWDM System 120KM 8X100Gbps 1U 19' DWDM
General:
HLBOX1500P Box Type DWDM System is an integrated WDM transmission platform, which meets the application scenarios of 8*100G service 0~120KM point-to-point transmission without middle repeater stations, adopts PAM4 DWDM transmission technology, supports automatic adjustment of line side dispersion, OLP protection, out-of-band OSC management and stack expansion; the appearance conforms to the network switch form, suitable for customers in the data industry, reducing the difficulty of system fiber connection, and facilitating service opening and daily maintenance.
Features:
Support 8*100GE/OTU4 service access
Support dual / single fiber core transmission
Support automatic adjustment of dispersion
Support 1+1 OLP protection of line side
Support 0~120KM point-to-point transmission without middle repeater stations
Support stack expansion>1.6T
Support out-of-band OSC management
Support Web/SNMP/CLI management
Applications:
Dense WDM System
PON Networks
CATV Links
Performance Parameter:
| Parameter | Unit | Performance Index | |
| Optical Fiber Type | G.652(SMF-28) | ||
| Service Access Type | 100GE/OTU4 | ||
| Transmission Capacity | Gpbs | 8*100G | |
| Link Power Margin(point-to-point without middle repeater station) | dB | ≤23dB(with BA+PA optical amplifiers) | |
| Sourroundings Parameter | Working Temperature | ℃ | -10~ 60℃ |
| Storage Temperature | ℃ | -40℃~ 85℃ | |
| Relative Moisture | 5% ~ 95% (no condensation) | ||
| Size | 1U | mm | 486W×492D×44.5H( including mounting ears and infront & rear pull tabs) |
| Power Supply | AC | V | 100~240,50~60hz |
| Power Consumption | 1U | W | ＜350(Max) |

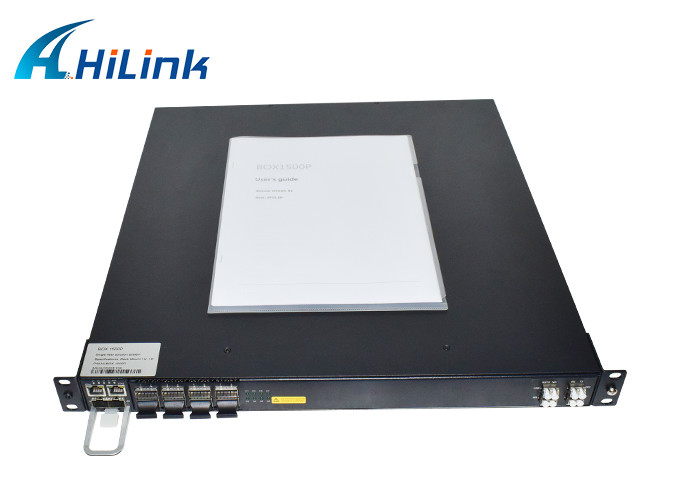

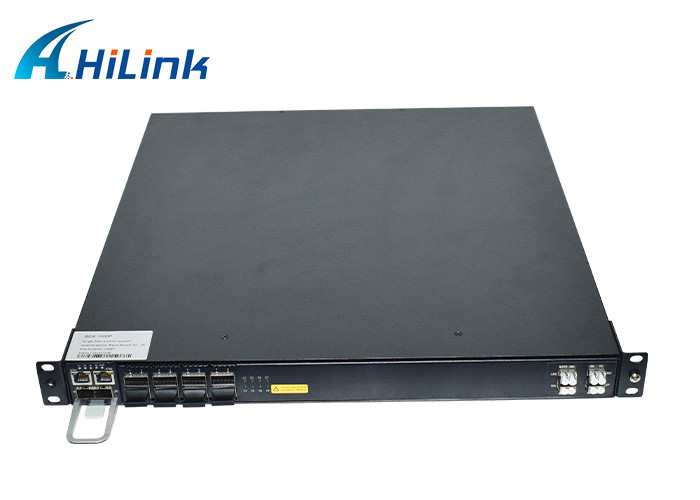

Product picture show
Solution:
Company Information:
FAQ:
Q: Do you sell second-hand products?
A: No.All our products are brand new,we never use secont-hand components.
Q: Do your products come with warranty?
A: Yes,We provide 3 years warranty for all our products from the date of shipment.
Q: How to place an order?
A:1> Order details confirmed,please tell us the model and quantity you need.
2> Proforma Invoice confirmed, the order will be arranged upon receipt of your payment.
3> Confirm and ship the goods, then tracking number will be sent to you promptly.
4> We will help to track your goods until you receive them safely.
As we have various kinds of products,if you can't find the correct item you need,please send us inquiry.We will follow up shortly.
