Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | HILINK |
| Model Number: | HL-XFP-10G-ZR4-120KM |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1pcs |
| Price: | Negotiable |
| Packaging Details: | Static bag, Plastic bag, Retail box or by required |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 500/pcs/month |
|
Detail Information |
|||
| Certification: | CE RoHS FCC | Name: | XFP 10G 120km SMF 1550nm |
|---|---|---|---|
| Wavelength: | 1550nm | Connector: | Dual LC/UPC Connector |
| Warranty: | 3 Years | Transmission Distance: | 120km |
| High Light: | 10Gbps XFP Optical Transceiver,120KM XFP Optical Transceiver,1550nm XFP Transceiver Module |
||
Product Description
10Gbps XFP Optical Transceiver 120km Reach 120KM 1550nm SFP DOM
General:
Hilink 120km XFP Transceiver is designed for 10G SDH/SONET and 10G Fiber Channel applications. The transmitter section incorporates a colded EML laser, and the receiver section consists of a APD photodiode integrated with a TIA, Integrated low power dual CDR with Electronic Dispersion Compensation(EDC).
This module can be used to compensate channel impairments caused by either single mode fiber up to 120 km .All modules satisfy class I laser safety requirements. Haili XFP transceiver provides an enhanced monitoring interface, which allows real-time access to device operating parameters such as transceiver temperature, laser bias current, transmitted optical power, received optical power and transceiver supply voltage.
Features:
XFP MSA Rev 4.5 Compliant
Data rate from 9.95Gbps to 11.3Gbps
Cooled EML with isolator
APD receiver
link length up to 120km (with amplifier)
Low Power Dissipation 3.5W Maximum
XFI and lineside loopback Mode Supported
-5ºC to 70ºC Operating Case Temperature
Diagnostic Performance Monitoring of module temperature,
Supply Voltages, laser bias current, transmit optical power, and receive optical power
RoHS compliant (lead free)
Applications:
SONET OC-192&SDH STM 64
Ethernet (10GBASE and 10GBASE with FEC)
Fiber Channel (10G and 10G with FEC)
| Module Number | Decription |
| XFP-10G-MM-SR | XFP 10GB MMF 850nm 300M |
| XFP-10G-LR | XFP 10GB SMF 1310nm 10KM |
| XFP-10G-ER | XFP 10GB SMF 1550nm 40KM |
| XFP-10G-ZR80 | XFP 10GB SMF 1550nm 80KM |
| XFP-10G-ZR100 | XFP 10GB SMF 1550nm 100KM |
| XFP-10G-ZR120 | XFP 10GB SMF 1550nm 120KM |

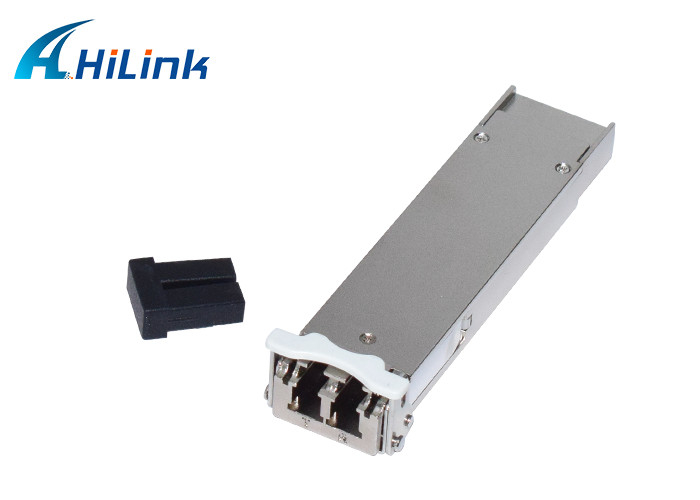

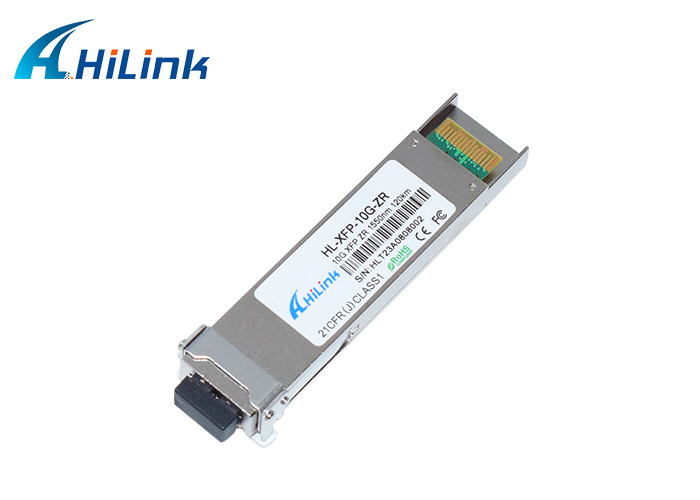

Product Show:
Hilink Competitive advantages:
1. Excellent quality and 3 years warranty
2. Competitive pricing
3. Full compatible (CISCO/Ciena/Extreme/Juniper/H3C…)
4. OEM/ODM Customized label
5. Keep stocks,Fast delivery
Company Informations:
Shenzhen Haili Link Technology Co., Ltd. which is specialized in manufacturing and marketing fiber optic products, was founded in 2007.
RoHS, ISO&CE cerificated, we are golden supplier which specializes in this field 10 years with superior quality, competitive price and good solution.
Our core competencies are fiber optics of CFP2, QSFP28, QSFP SR4&LR4, CWDM SFP/XFP/X2, DWDM SFP/XFP/X2, solutions of DWDM, CWDM, WDM, MPO, AAWG, etc.
We have an independent Research&Development Department with 8 skillful engineers, with some advanced equipments and devices, such as cisco switch and routers, for further detailed test and procedure.
We also have related optical products and good solutions to satisfy customers' requirements.
FAQ:
Q:Do you sell second-hand products?
A:No.All our products are brand new,we never use secont-hand components.
Q:What payment terms do you accept?
A:T/T,Paypal,Western Union are acceptable.
Q:What are the shipping ways can you offer?
A:Our usual shipping ways are DHL,FedEX,TNT,UPS,EMS etc.It will take 3-7days.
Q:Do your products come with warranty?
A:Yes,We provide 3 years warranty for all our products from the date of shipment.
Q:How to place an order?
A:1>Order details confirmed,please tell us the model and quantity you need.
2>Proforma Invoice confirmed, the order will be arranged upon receipt of your payment.
3>Confirm and ship the goods, then tracking number will be sent to you promptly.
4>We will help to track your goods until you receive them safely.
As we have various kinds of products,if you can't find the correct item you need,please send us inquiry.We will follow up shortly.
