Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | HILINK |
| Certification: | CE FCC Rohs |
| Model Number: | HL-QSFP200G-SR4 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1pcs |
| Price: | Negotiable |
| Packaging Details: | Carton box, Retail box, Or by required |
| Delivery Time: | 1-4 days |
| Payment Terms: | L/C, T/T, Western Union, Paypal |
| Supply Ability: | 3000 pairs per Week |
|
Detail Information |
|||
| Data Transfer Rate: | 200Gbps | Wavelength 1: | 850nm |
|---|---|---|---|
| Max Distance: | 100M | Interface: | MPO Connector |
| CE FCC: | Support | Warranty: | 3 Years |
| High Light: | 850nm 200GBASE SFP Transceiver,SR4 200GBASE SFP Transceiver,QSFP56 200GBASE SFP Transceiver |
||
Product Description
200G QSFP56 SR4 PAM4 200GBASE SFP Transceiver 850nm 100M MPO
General
The HiLink 200G QSFP56 SR4 is a 4×50Gbps multi mode fiber, hot pluggable optical transceiver. The module integrates four parallel lanes with baud rate at 26.5625GBd each lane. It can transmit up to 70 m on fiber OM3 fiber or 100 m on OM4 fiber with FEC.
Features
Compliant with IEEE Std 802.3bs, IEEE Std 802.3cm
Compliant with 200G-SR4 optical specifications
Compliant with SFF-8679
Compliant with CMIS4.0 Management interface specifications
4x53.125Gb/s electrical interface (200GAUI-4)
Reach up to 70m on MMF(OM3)
Reach up to 100m on MMF(OM4)
Single +3.3V power supply
Case temperature range: 0 ~ +70℃
Maximum power consumption 5W
Single MPO12 connector
RoHS complaint
Application
200GBASE-SR4 Ethernet links
Data centers
| Fiber Type | Multi Mode | Connector Type | MPO |
| Model Number | HL-QSFP56-200G-SR1 | Brand Name | Hilink |
| Origin | Mainland China | Certification | CE,FCC,RoHS |
| Place of origin | Guangdong,China | Data transfer rate | 200G |
| Wavelength | 8500nm | Distance | 100M |
| Fiber Connector | MPO | Fiber Mode | MMF |
| power consumption | < 1.8W | CE RoHS | Compliant |
| Warranty | 3 years | Application | FTTX |

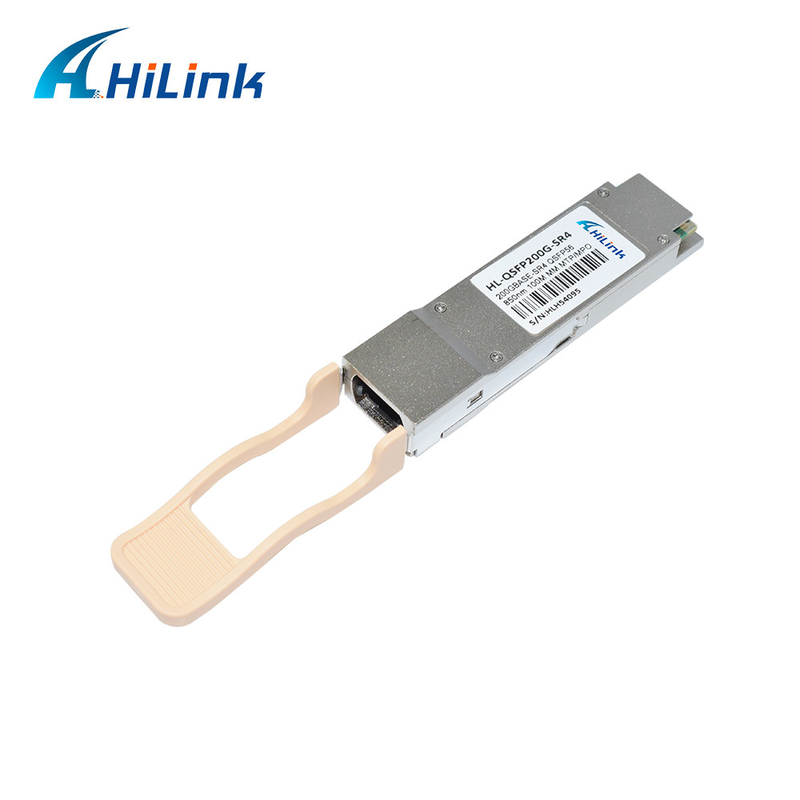

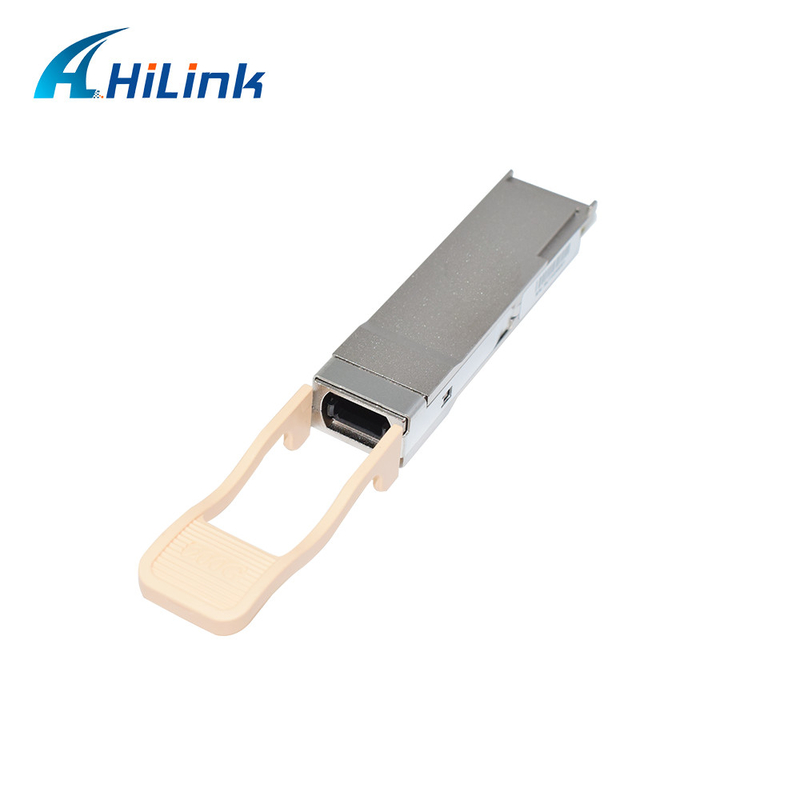

Product picture shows
Package Dimensions
.
FAQ
Q:Do you sell second-hand products?
A:No.All our products are brand new,we never use secont-hand components.
Q:What payment terms do you accept?
A:T/T,Paypal,Western Union are acceptable.
Q:What are the shipping ways can you offer?
A:Our usual shipping ways are DHL,FedEX,TNT,UPS,EMS etc.It will take 3-7days.
Q:Do your products come with warranty?
A:Yes,We provide 3 years warranty for all our products from the date of shipment.
Q:How to place an order?
A:1>Order details confirmed,please tell us the model and quantity you need.
2>Proforma Invoice confirmed, the order will be arranged upon receipt of your payment.
3>Confirm and ship the goods, then tracking number will be sent to you promptly.
4>We will help to track your goods until you receive them safely.
As we have various kinds of products,if you can't find the correct item you need,please send us inquiry.We will reply shortly.
