Name: HL-SFP-T 1000BASE-T and 10/100/1000BASE-T Copper SFP Transceiver
Brand: Shenzhen HiLink Technology Co.,Ltd.
SKU: HL-GLC-T
Price: 130.00 USD
Availability: InStock

Home > products > Optical Transceiver Module >

HL-SFP-T 1000BASE-T and 10/100/1000BASE-T Copper SFP Transceiver

Place of Origin:

Guangdong, China

Brand Name:

Hilink

Certification:

CE Rohs

Model Number:

HL-GLC-T

Request A Quote

HL-SFP-T 1000BASE-T and 10/100/1000BASE-T Copper SFP Transceiver

Product Details

Product Name:

1000BASE-T And 10/100/1000BASE-T Copper SFP Transceiver

Data Rate:

1000BASE-T And 10/100/1000BASE-T

Reach:

100m

Fiber Connector:

RJ45 Copper

Operating Temperature:

0 To 70℃

Brand Name:

Hilink

Payment & Shipping Terms

Minimum Order Quantity

1 pieces

Price

Send Inquiry know latest price

Packaging Details

Plastic box+Carton

Delivery Time

5-8 working day

Payment Terms

T/T,Western Union,Alipay,Paypal/Wechat/Trade Assurance

Supply Ability

2000 Pieces/Week

400G QSFPDD 850nm 100m SR4 MPO Generic Compatible 400GBASE-SR8 OSFP PAM4 850nm 100m With FEC DDM MPO-16 MMF Optical Transceiver Module

Get Best Price

High Quality 10G Ethernet WDM BIDI ER 40KM 1270/1330 XFP Optical Module Fiber Optic Equipment

Get Best Price

Hilink 10GB SFP+ 10G-LRS Transceiver with 3 Years Warranty 1310nm Dual LC Connector 1.4KM SMF Communication & Networking Product

Get Best Price

Brand New Compatible GPON OLT Class C++ SFP Modules 1.25G 2.5G GPON OLT Class C++

Get Best Price

+86 15917174650

sales05@hilinktech.com

86-755-8317-6243

Contact Now

Product Description

HL-SFP-T 1000BASE-T and 10/100/1000BASE-T Copper SFP Transceiver

Description:

HL-SFP-Tx Copper Small Form Pluggable (SFP)transceivers is high performance, cost effective module compliant with the Gigabit Ethernet and 1000BASE-T standards as specified in IEEE 802. 3-2002 and IEEE 802.3ab, which supp- orting 1000Mbps data- rate up to 100 meters reach over unshielded twisted-pair category 5 cable. The module supports1000 Mbps full duplex data-links with 5-level Pulse Amplitude Modulation (PAM) signals. All four pairs in the cable are used with symbol rate at 250Mbps on each pair. The module provides standard serial ID information compliant with SFP MSA, which can be accessed with address of A0h via the 2wire serial CMOS EEPROM protocol. The physical IC can also be accessed via 2wire serial bus at address ACh.

Features:

¨ Up to 1.25Gb/s bi-directional data links

¨ Hot-pluggable SFP footprint

¨ TX Disable and RX Los/without Los function

¨ Fully metallic enclosure for low EMI

¨ +3.3V single power supply

¨ Low power dissipation (1.05 W typical)

¨ Compact RJ-45 connector assembly

¨ Access to physical layer IC via 2-wire serial bus

¨ 1000 BASE-T operation in host systems with SERDES interface

¨ 10/100/1000Mbps compliant in host systems with SGMII interface

Operating case temperature range of

Standard : 0 to +70°C

Industrial : -40 to +85°C

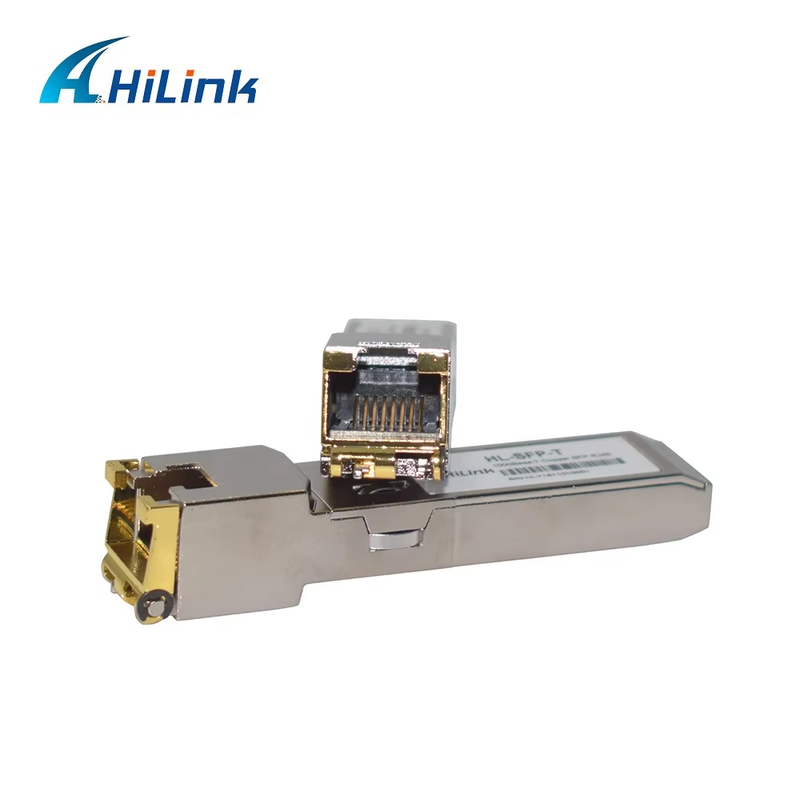

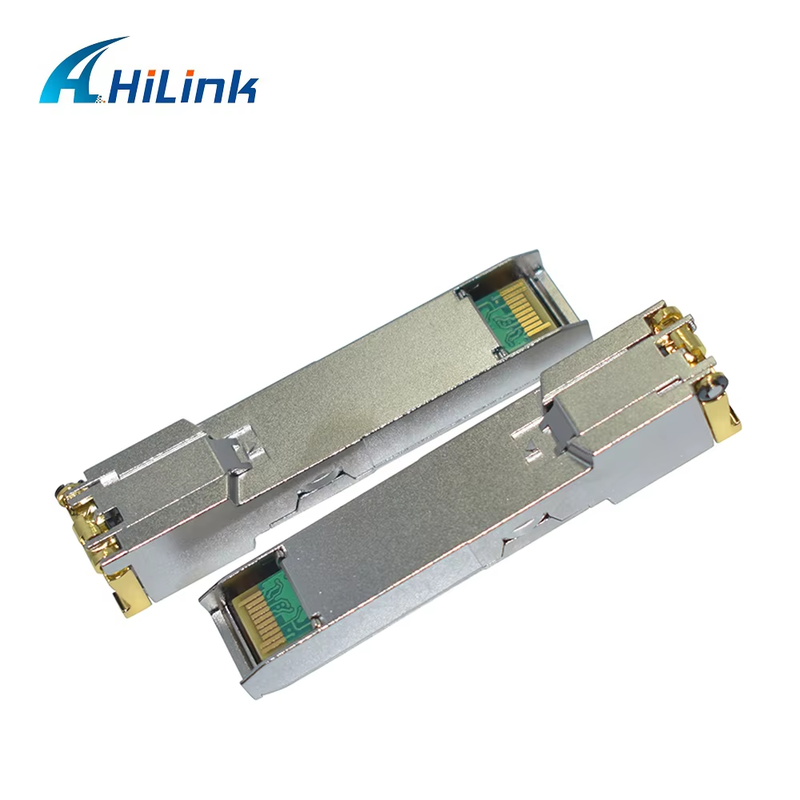

Real Photo Show:

Our Service

OEM/ODM order is available

We promise all the advertised optical modules are brand new and absolutely never use old and refurbished materials. All the optical modules have been through functional test and aging test. We provide 3 years warranty for all the optical transceivers from the date of shipment.
