Name: 25Gb/s SFP28 BIDI 60km 1295/1309nm LC DDM Transceiver
Brand: Shenzhen HiLink Technology Co.,Ltd.
SKU: HL-SFP28-BIDI-60KM
Price: 893.00 USD
Availability: InStock

Home > Products > SFP+ Transceiver Module >

25Gb/s SFP28 BIDI 60km 1295/1309nm LC DDM Transceiver

25Gb/s SFP28 BIDI transceiver 60km

SFP28 BIDI transceiver LC DDM

SFP+ transceiver module 1295/1309nm

Place of Origin:

Guangdong, China

Brand Name:

HILINK

Certification:

CE FCC Rohs

Model Number:

HL-SFP28-BIDI-60KM

Request A Quote

Product Details

Data Transfer Rate:

25G

Max Distance:

600km

Wavelength 1:

1295nm/1309nm

Connector:

LC SIimplex

Warranty:

3 Years

CE FCC Rohs:

Support

Payment & Shipping Terms

Minimum Order Quantity

1pcs

Price

Negotiable

Packaging Details

Carton box, Retail box, Or by required

Delivery Time

1-4 days

Payment Terms

L/C, T/T, Western Union, Paypal

Supply Ability

3000 pairs per Week

25Gb/s SFP28 BIDI 60km 1295/1309nm LC DDM Transceiver

Get Best Price

Video

10G-ZR4-80KM 10G BIDI Transceiver Module 80KM 1490nm/1550nm SFP+ STM-64 WDM 8SFP+ SMF

Get Best Price

HL-SFP-BX-10KM 10G SFP+ Transceiver Module BIDI 20km 1270nm 1330nm LC Connector RoHS

Get Best Price

BIDI 10G WDM SMF Optical Transceiver SFP+ 100KM Tx1490nm/Rx1550nm with LC Fiber Optic Transceivers for FTTH Networks

Get Best Price

+86 17677464632

sales02@hilinktech.com

86-755-8317-6243

Contact Now

Product Description

25Gb/s SFP28 BIDI 60km 1295/1309nm LC DDM Transceiver

Product Specifications

Attribute	Value
Data transfer rate	25G
Max Distance	600km
Wavelength 1	1295nm/1309nm
Connector	LC Simplex
Warranty	3 Years
CE FCC Rohs	Support

Product Description

The SFP28-25G-UD-60 series single mode transceiver is small form factor pluggable module for duplex optical data communications. The SFP28-25G-UD-60 module is designed for single mode fiber and operates at a nominal wavelength of 1295.56nm or 1309.14nm; the transmitter section uses a multiple quantum well EML, which is class 1 laser compliant according to International Safety Standard IEC-60825.

The SFP28 60km module electrical interface is compliant to SFI electrical specifications. The transmitter input and receiver output impedance is 100 Ohms differential. Data lines are internally AC coupled. The module provides differential termination and reduce differential to common mode conversion for quality signal termination and low EMI.

Features

Support data rate up to 25.78125Gb/s
Hot-Pluggable SFP Footprint and Single LC Connector
Up to 60km reach for G.652 SMF
EML TX and Integrated APD RX
Temperature Range:
- Commercial: 0°C ~70°C
- Industrial: -40°C ~85°C
Power consumption
- Commercial: 1.5W
- Industrial: 1.8W
RoHS 6 compliance
Compliant to IEEE 802.3cc, SFF-8472 and SFF-8419
Complies with EU Directive 2015/863/EU

Applications

25GE BASE-LR Ethernet

CPRI Option 10/eCPRI

25G SFP Transceivers

25G SFP	Description
SFP28-25G-SR	SFP28 25Gbps 850nm 100M LC DOM
SFP28-25G-LR	SFP28 25Gbps 1310nm 10KM LC DOM
SFP28-25G-ER	SFP28 25Gbps 1310nm 40KM LC DOM
SFP28-25G-BIDI-10KM	SFP28 25Gbps BIDI1270/1310nm 10KM LC DOM
SFP28-25G-BIDI-40KM	SFP28 25Gbps BIDI1270/1310nm 40KM LC DOM
SFP28-25G-BIDI-50KM	SFP28 25Gbps BIDI1270/1310nm 50KM LC DOM

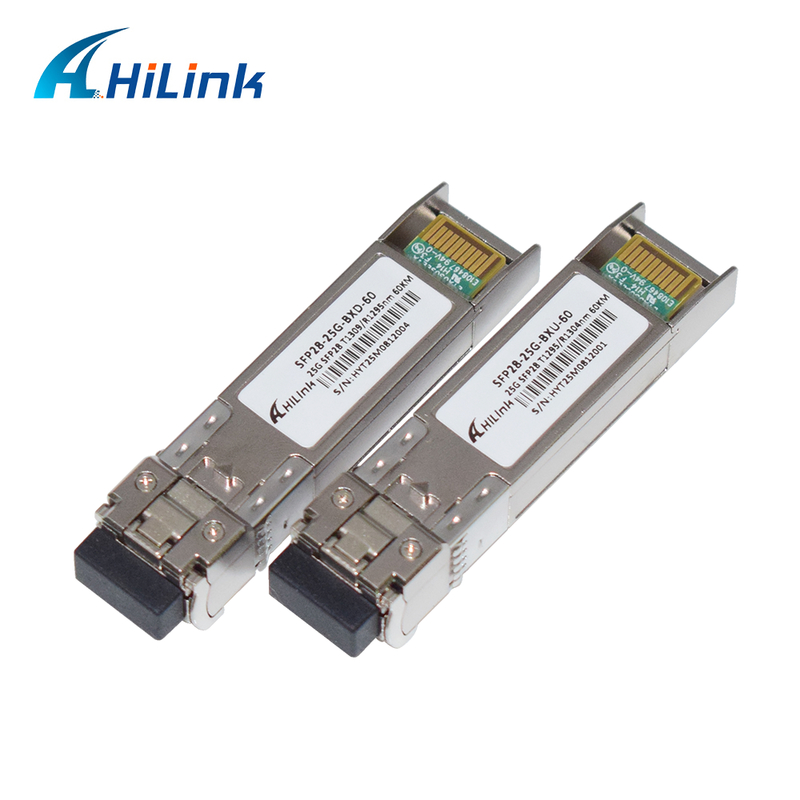

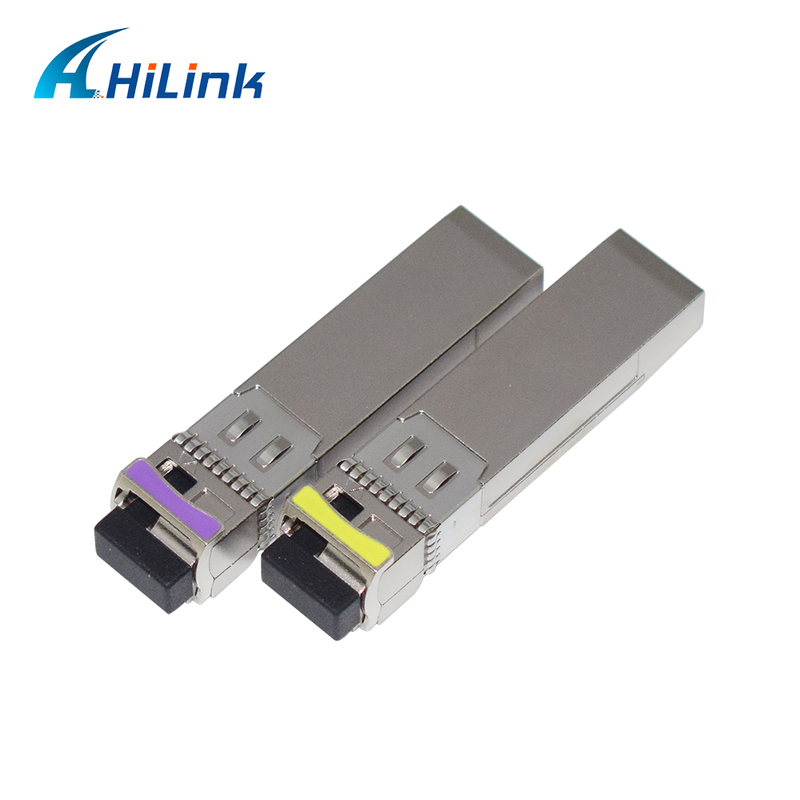

Product Images

Mechanical Dimensions
