Name: 40G 100G Dual Fiber to Single Fiber CVR LC Connector 1310nm
Brand: Shenzhen HiLink Technology Co.,Ltd.
SKU: HL-DF-SF-CVR
Price: 130.00 USD
Availability: InStock

Home > products > WDM Solution >

40G 100G Dual Fiber to Single Fiber CVR LC Connector 1310nm

40G 100G dual fiber CVR LC connector

single fiber CVR LC 1310nm

WDM solution LC connector with warranty

Place of Origin:

China

Brand Name:

Hilink

Certification:

CE Rohs

Model Number:

HL-DF-SF-CVR

Request A Quote

Product Details

Product Name:

Dual Fiber To Single Fiber CVR

Condition:

Brand New

Compliant:

CE RoHS

Operating Wavelength:

1310nm

Connector:

Payment & Shipping Terms

Minimum Order Quantity

1 pieces

Price

Need to negotiate

Packaging Details

Plastic box+Carton

Delivery Time

5-8 working day

Payment Terms

T/T,Western Union,Alipay,Paypal/Wechat/Trade Assurance

Supply Ability

2000 Pieces/Week

Accept Customize Hilink 100GHz 16 Channel DWDM MUX/DEMUX Dense Wavelength Division Multiplexing

Get Best Price

Optical Line Protector OLP BIDI With A&B Terminals LC/UPC

Get Best Price

Video

8CH DWDM MUX DEMUX 100GHz 8 Channel HL-DW-MUX-8CH LC/APC LC/UPC

Get Best Price

Video

CWDM 1*8CH 8Channel CWDM MUX/DEMUX 8CH 19 inch 1U CWDM Devices System

Get Best Price

+86 15917174650

sales05@hilinktech.com

86-755-8317-6243

Contact Now

Product Description

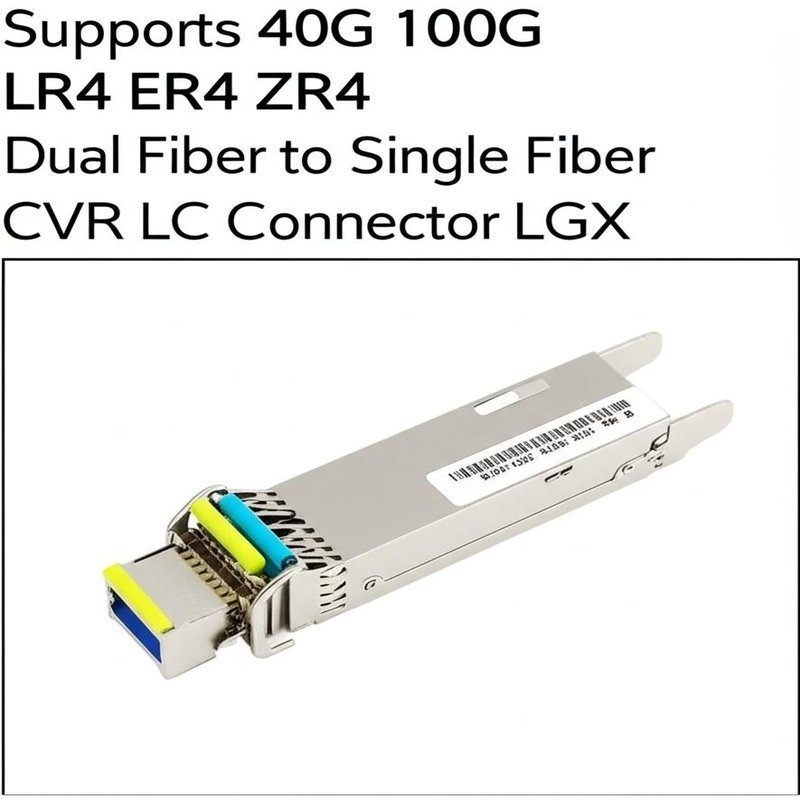

40G/100G LR4 ER4 ZR4 Dual Fiber to Single Fiber CVR LC Connector LGX

With the increasing demand for 100G data transmission and large bandwidth, fiber optic resources between data centers are becoming scarce. Our 100G dual-port to single-port converter enables bidirectional transmission of 100G LR4/ER4 optical modules over a single fiber core, allowing multiple 100G services to utilize existing dual-core fiber infrastructure - delivering significant cost savings for enterprises.

Key Features

Supports 40G/100G LR4, ER4, ZR4 dual fiber to single fiber conversion
Operating wavelength: 1310nm
LC connector compatibility
Passive device with low insertion loss

Applications

Performance Specifications

Wavelength	1310nm	Rate	40G/100G
Insertion Loss	≤ 1dB	Technology	TFF (Thin Film Filter)
Insertion Loss	≤ 2.7dB	Isolation	≥35dB
Polarization Dependent Loss	≤ 0.1ps	Return Loss	≥ 45dB
TDL (dB)	≤0.15dB	PMD (ps)	≤0.055nm
Return Loss	≥ 45dB	Directivity	≥ 45dB
Power handling	≤500mW	Fiber Type	SMF-28e
Connector	LC, SC, FC (UPC/APC)	Temperature	Operating: -40 to 85°C Storage: -40 to 85°C
Net Weight	LGX BOX: 0.5KG 4Slot 1u Rack: 2.5KG	Dimensions (HxWxD)	LGX BOX: 214.515020mm 4Slot 1u Rack: 44440160mm

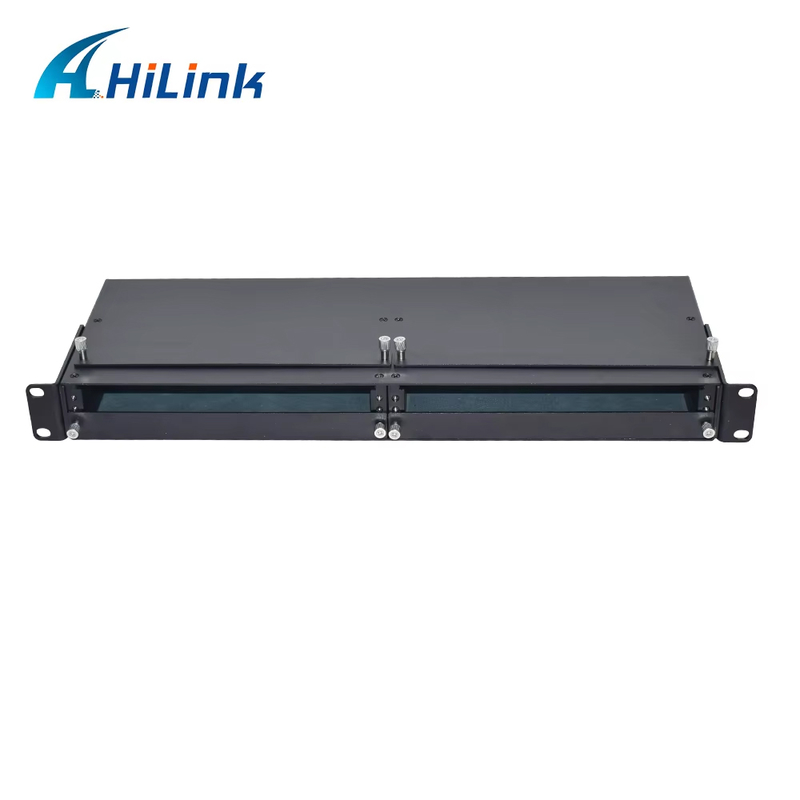

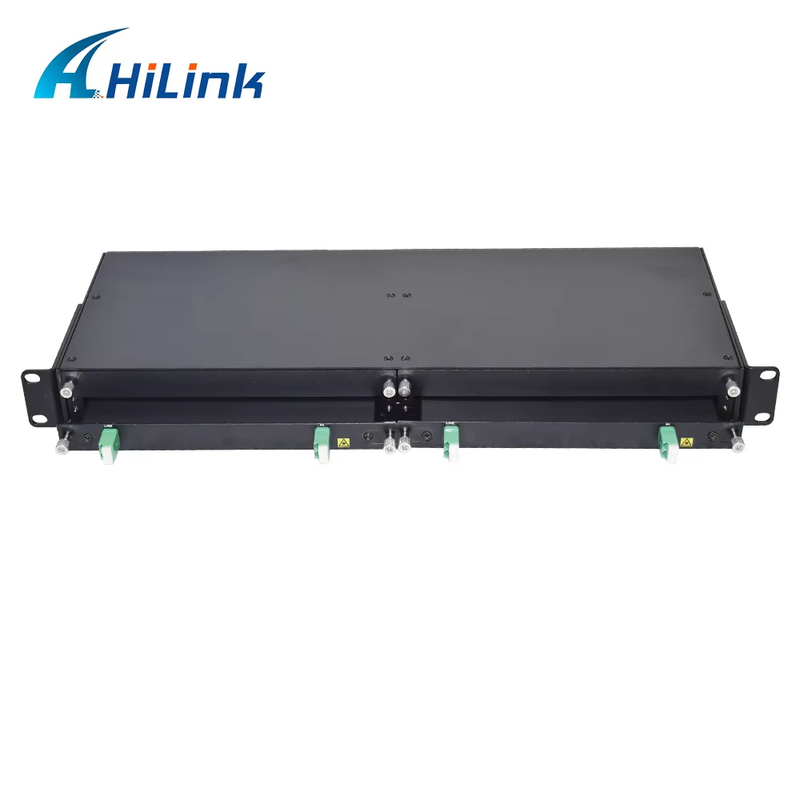

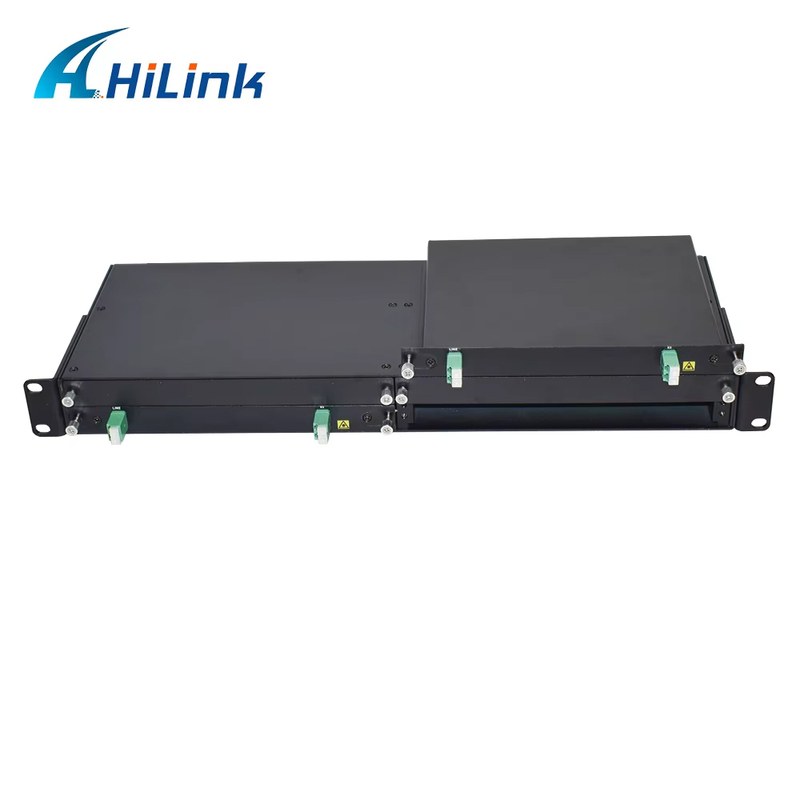

Product Images

Packaging & Shipping

Packaging: Plastic box + carton (custom packaging available upon request)
Delivery Time: 2-5 working days
Shipping Methods: DHL, FedEx, EMS, TNT, UPS (1-5 days delivery)

Our Service

OEM/ODM: Custom orders available
Quality Assurance: All modules are brand new with no refurbished materials
Testing: Each module undergoes functional and aging tests
Warranty: 3 years from shipment date
