High-power 1550nm Mini EDFA Fiber Amplifier with Built-in Optical Switch for CATV and FTTB Networks

High-power 1550nm Mini EDFA Fiber Amplifier with Built-in Optical Switch for CATV and FTTB Networks

1550nm Fiber Amplifier

High-power EDFA

Built-in Optical Switch Mini EDFA

Place of Origin:

Guangdong, China

Brand Name:

HILINK

Certification:

CE FCC Rohs

Model Number:

HL-MINI 1550NM EDFA CATV

Contact Us
Request A Quote
High-power 1550nm Mini EDFA Fiber Amplifier with Built-in Optical Switch for CATV and FTTB Networks High-power 1550nm Mini EDFA Fiber Amplifier with Built-in Optical Switch for CATV and FTTB Networks High-power 1550nm Mini EDFA Fiber Amplifier with Built-in Optical Switch for CATV and FTTB Networks
Product Details
Connector:
FC/APC Or SC/APC
Product Name:
MINI 1550NM CATV EDFA
Operating Wavelength:
1529.16~1563.86nm
Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
Just contact me to know latest price
RELATED PRODUCTS
Good price Mini 1550nm CATV EDFA Optical Line Amplifier Optical Amplifier online Video

Mini 1550nm CATV EDFA Optical Line Amplifier Optical Amplifier

Get Best Price
Good price 8CH DWDM Module Pluggable LGX Box Package DWDM Mux Demux Dual Fiber With LC UPC online

8CH DWDM Module Pluggable LGX Box Package DWDM Mux Demux Dual Fiber With LC UPC

Get Best Price
Good price 1U Rack Mount 8CH DWDM Mux Demux Dual Fiber ITU Grid With LC UPC online

1U Rack Mount 8CH DWDM Mux Demux Dual Fiber ITU Grid With LC UPC

Get Best Price
Good price 8CH WDM Equipment 100GHZ DWDM MUX Demux Dual Fiber Duplex LC UPC C Band ABS Box online

8CH WDM Equipment 100GHZ DWDM MUX Demux Dual Fiber Duplex LC UPC C Band ABS Box

Get Best Price
Contact Us
+86 15917174650
sales05@hilinktech.com
86-755-8317-6243
Contact Now
Product Description
Mini-High-power 1550nm Fiber Amplifier MINI EDFA
MINI EDFA 1550nm building optical amplifiers are mainly used in CATV FTTB network.
Applications
  • Single-mode fiber 1550nm amplification network
  • FTTH network
  • CATV network
  • Long distance trunk network.FTTx PON, max working wavelength: 1529.16~1563.86nm
  • All kinds of SDH/PDH transmission systems
Performance Characteristics
  • Built-in optical switch and backup optical source
  • Built-in optical fwdm, it can transmit broadband network and CATV together
  • Built-in 1550nm optical Transmitter for local CATV signal insertion
  • Adopts Er/Yb Codoped double-clad fiber technology
  • Dual CATV optical input ports: 2 optional
  • Olt input ports: 4-16 optional
  • Com Output ports: 4-16 optional
  • Optical output power: total output up to 5W(37dBm)
  • Low noise figure: <6dB when input is 0dBm
  • Intelligent temperature control system make the power consumption lower

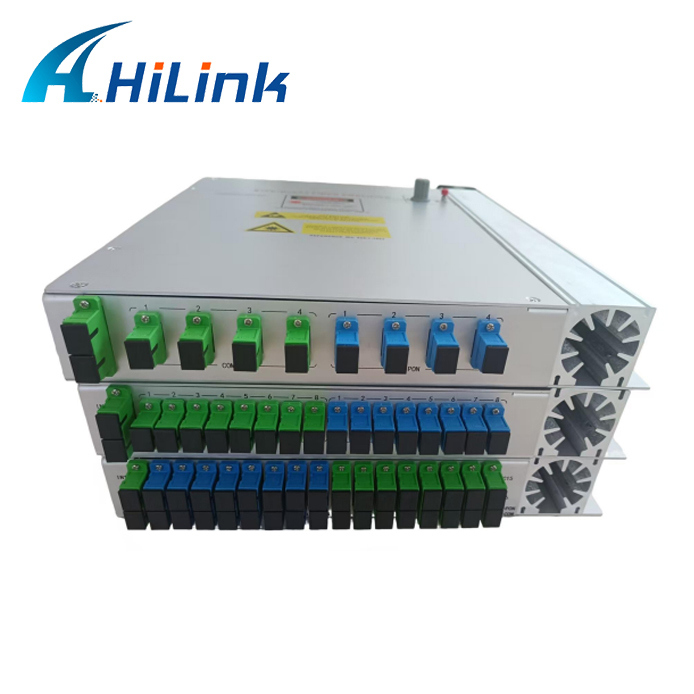

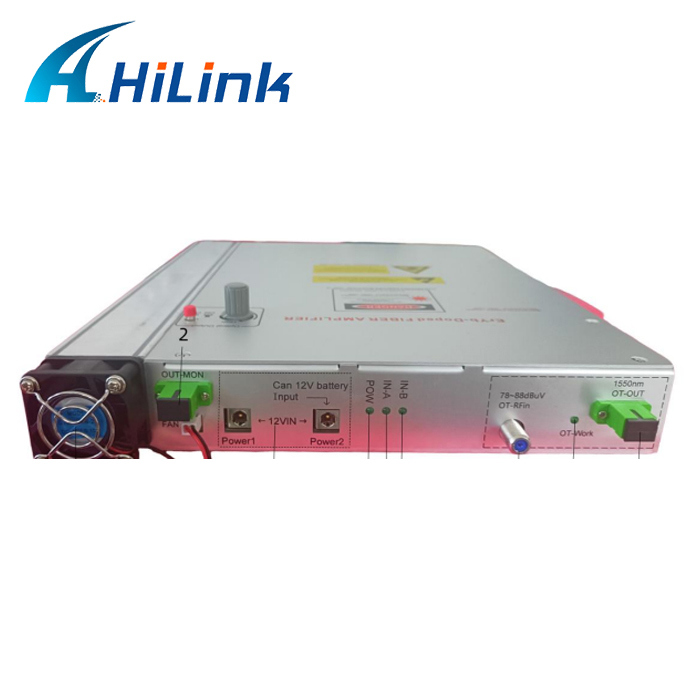

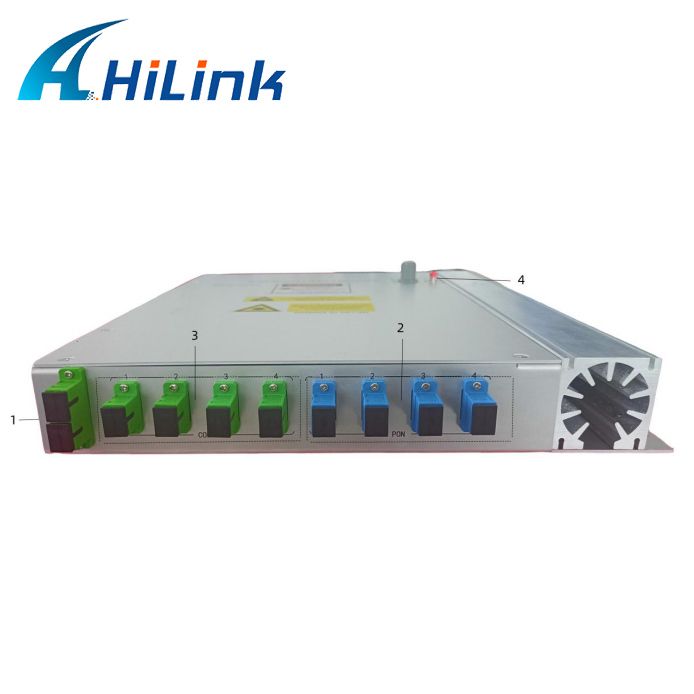

Product Images
High-power 1550nm Mini EDFA Fiber Amplifier with Built-in Optical Switch for CATV and FTTB Networks 0 High-power 1550nm Mini EDFA Fiber Amplifier with Built-in Optical Switch for CATV and FTTB Networks 1
