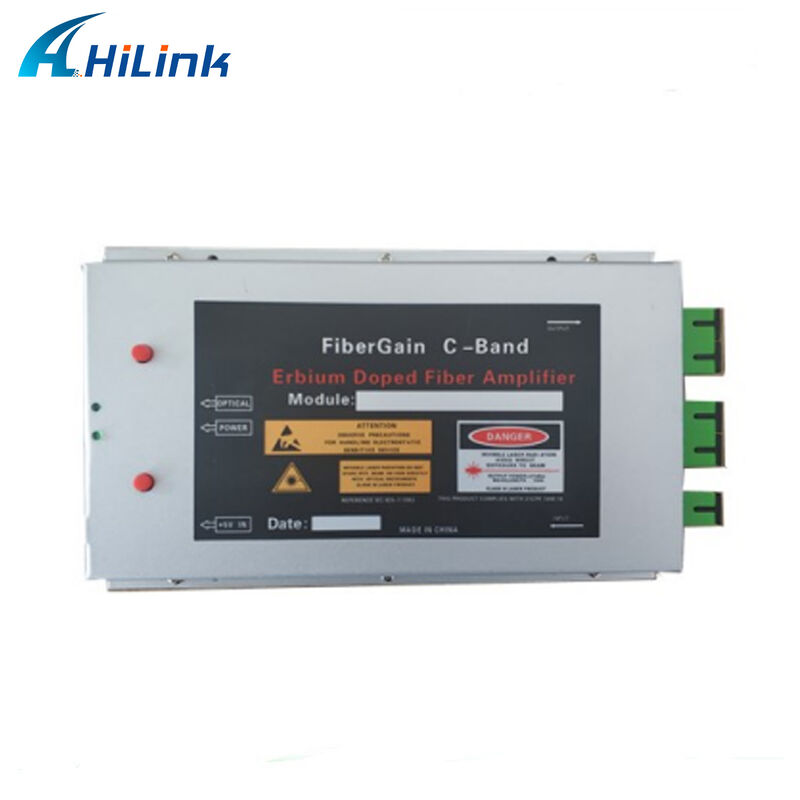

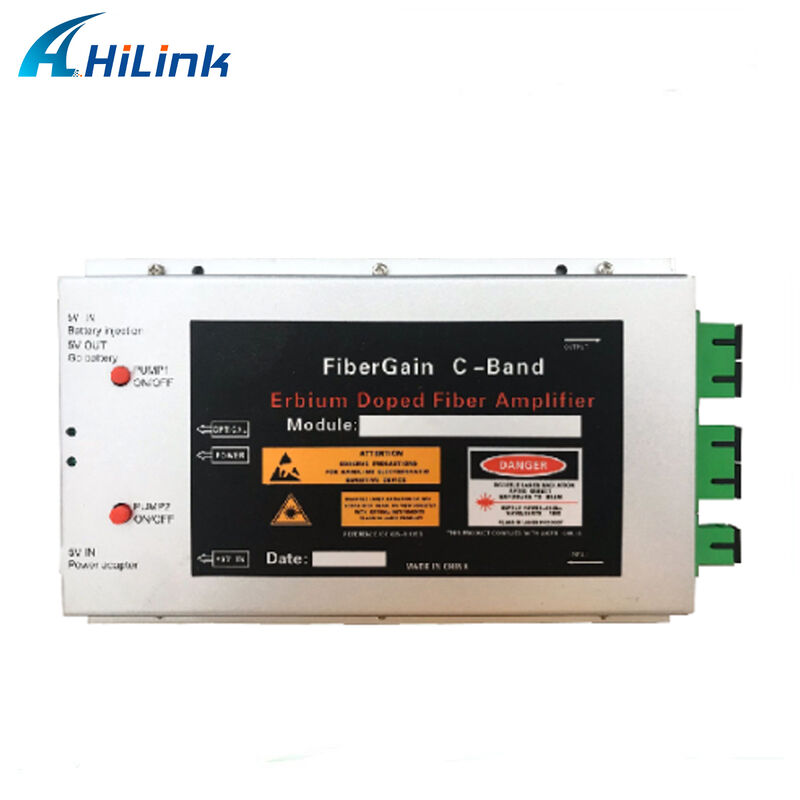

Hilink MINI Type EDFA 1550nm 15dBm 1 input 1 output CATV Building Telecom ERBIUM-DOPED FIBER AMPLIFIER

Hilink MINI Type EDFA 1550nm 15dBm 1 input 1 output CATV Building Telecom ERBIUM-DOPED FIBER AMPLIFIER. This compact optical amplifier is designed for CATV FTTB networks and telecom applications with high reliability and performance.

MINI EDFA 1550nm building optical amplifiers are primarily used in CATV FTTB networks. With a slim 23mm thick aluminium alloy shell, it can be mounted in high-rise residences or office buildings' weak electrical boxes.

• DC +5V external power supply, 5W low consumption
• Optical Input Power Range: -5 ~ +10 dBm
• Optical Input Wavelength Range: 1530~1565nm
• Optical power receiving range -10dBm ~ +10dBm, optical power output 13~24dBm
• Optical Output Port 1~4 port & Every output power: 13~18dBm
• Output optical power control ON/OFF
• Output Power Stability: ±0.1dBm
• Noise Figure: ≤ 5dB @0dBm
• C/N: ≥ 50dB; C/CTB: ≥ 63dB; C/CSO: ≥ 63dB
• Operating Temperature: -5 ~ +55℃

This multi-channel EDFA features high flattening and highly stable output. The kernel components include high availability pump laser and high-performance gain flattening filters.

• C-band 44/80CH DWDM
• Other optical systems

• Low-noise high flatness design
• High precision ATC (automatic temperature control) keeps system stable
• Strictly designed in accordance with Bellcore GR-1312-CORE requirements

This machine adopts 5V power adapter with five levels of voltage protection for safer and more convenient operation.

OEM/ODM orders are available upon request.
