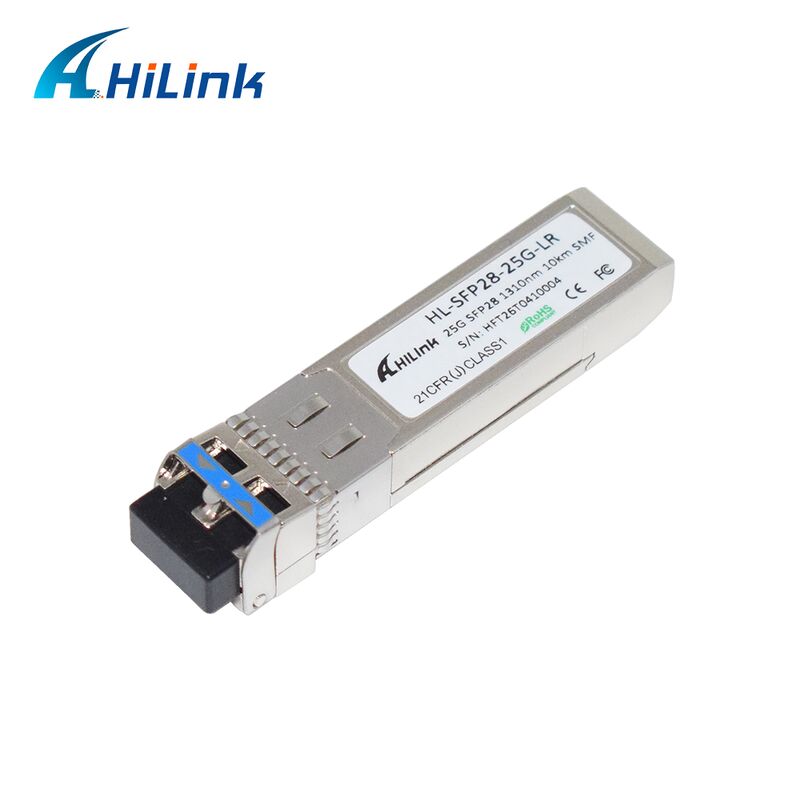

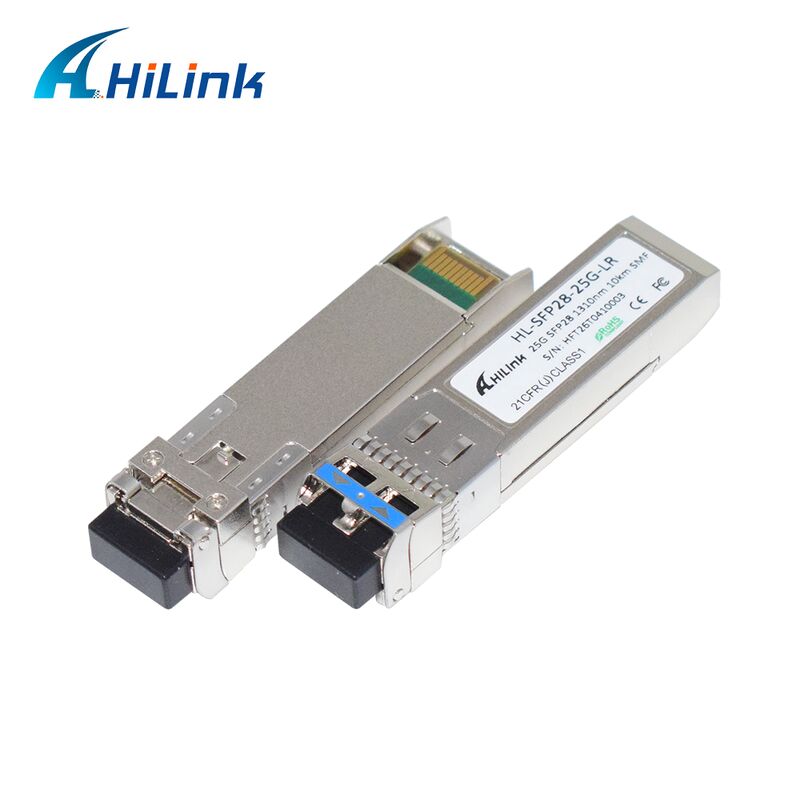

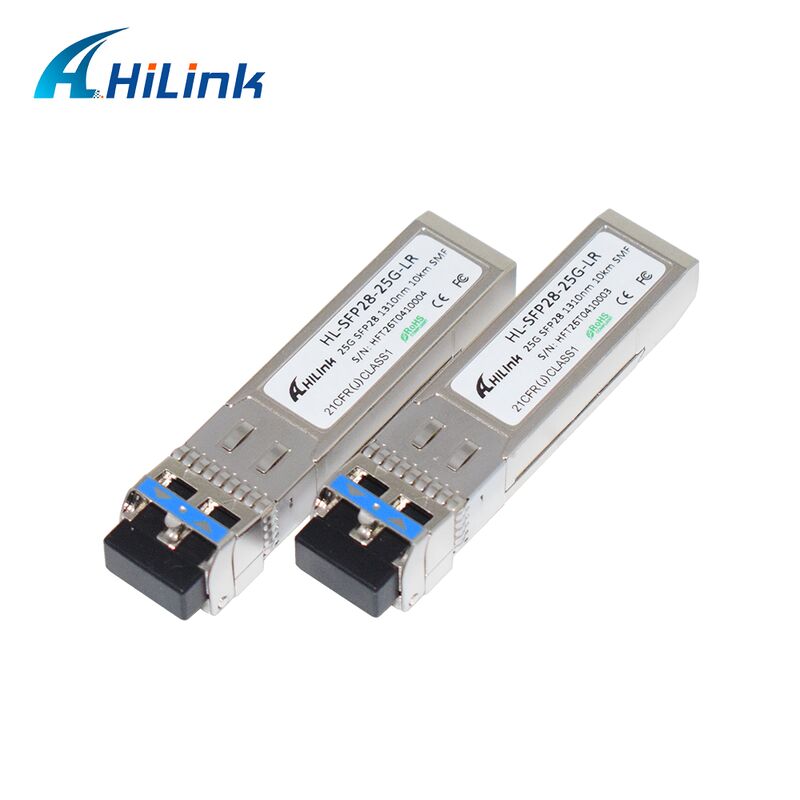

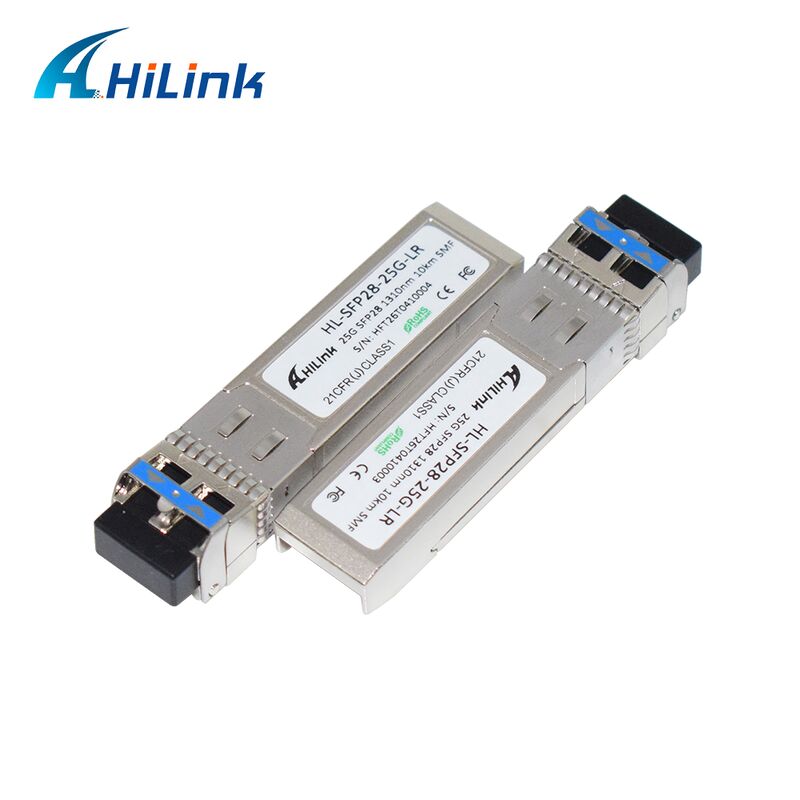

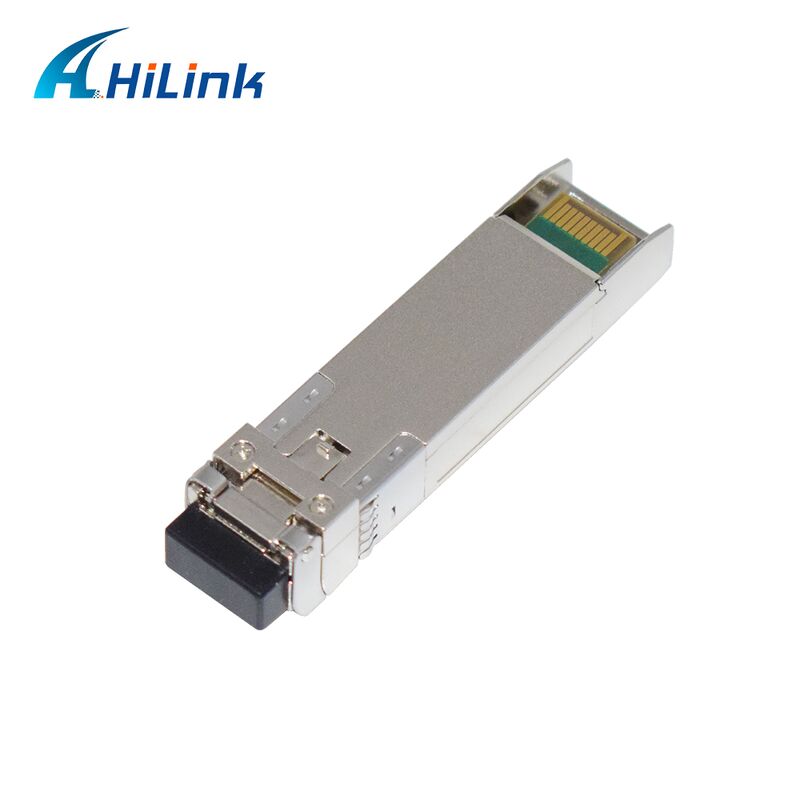

HL-SFP28-LR-10KM 25G SFP28 Transceiver with 10km Transmission Distance, 25.78Gbps Data Rate, and Low Power Consumption <1.2W

HL-SFP28-LR-10KM 25G SFP28 Transceiver with 10km Transmission Distance, 25.78Gbps Data Rate, and Low Power Consumption <1.2W

Place of Origin:

Guangdong, China

Brand Name:

HILINK

Certification:

CE FCC Rohs

Model Number:

HL-SFP28-LR-10KM

Contact Us
Request A Quote
HL-SFP28-LR-10KM 25G SFP28 Transceiver with 10km Transmission Distance, 25.78Gbps Data Rate, and Low Power Consumption <1.2W HL-SFP28-LR-10KM 25G SFP28 Transceiver with 10km Transmission Distance, 25.78Gbps Data Rate, and Low Power Consumption <1.2W HL-SFP28-LR-10KM 25G SFP28 Transceiver with 10km Transmission Distance, 25.78Gbps Data Rate, and Low Power Consumption <1.2W HL-SFP28-LR-10KM 25G SFP28 Transceiver with 10km Transmission Distance, 25.78Gbps Data Rate, and Low Power Consumption <1.2W HL-SFP28-LR-10KM 25G SFP28 Transceiver with 10km Transmission Distance, 25.78Gbps Data Rate, and Low Power Consumption <1.2W HL-SFP28-LR-10KM 25G SFP28 Transceiver with 10km Transmission Distance, 25.78Gbps Data Rate, and Low Power Consumption <1.2W
Product Details
Products Name:
25G SFP28 10km
Connetor:
Dual LC
Data Rate:
25G
Distance:
10KM
Wavelength:
1310nm
Temperature Range:
0℃ ~ +70℃
Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
12~16
Packaging Details
Static bag, Plastic Flat, Retail box, by requires
Delivery Time
5-8workingdays
Payment Terms
Western Union,T/T,L/C
Supply Ability
100pcs/month
RELATED PRODUCTS
Good price HL-SFP28-25G-SR 25G SFP28 SR Dual LC Transceiver with 25Gbps Data Rate 100m Distance and 850nm Wavelength online

HL-SFP28-25G-SR 25G SFP28 SR Dual LC Transceiver with 25Gbps Data Rate 100m Distance and 850nm Wavelength

Get Best Price
Good price 25Gb/s SFP28 BIDI Transceiver with 80km Reach and RoHS 6 Compliance Hot-Pluggable Single LC DDM online

25Gb/s SFP28 BIDI Transceiver with 80km Reach and RoHS 6 Compliance Hot-Pluggable Single LC DDM

Get Best Price
Good price 25Gb/s 60km SFP28 BIDI Transceiver with 1295/1309nm Wavelength for High-Speed Bi-Directional Fiber Optic Communication online

25Gb/s 60km SFP28 BIDI Transceiver with 1295/1309nm Wavelength for High-Speed Bi-Directional Fiber Optic Communication

Get Best Price
Good price GPON OLT Transceiver SFP Module with 8dBm 9dBm Output and 2.5G Data Rate online

GPON OLT Transceiver SFP Module with 8dBm 9dBm Output and 2.5G Data Rate

Get Best Price
Contact Us
Contact Now
Product Description
HL-SFP28-LR-10KM 25G SFP28 10km Dual LC Transceivers
Product Overview

HL-SFP28-LR-10KM 25G SFP28 10km Dual LC Transceivers - Feel free to contact us for details, compatibility, customization and wholesale pricing.

Key Features
  • Operating data rate up to 25.78Gbps
  • Rate Adaptation
  • Up to 10km transmission distance
  • High sensitivity Pin photodiode and TIA
  • LC duplex connector
  • Hot pluggable 20pin connector
  • Low power consumption <1.2 W
  • Single +3.3V±5% power supply
  • Compliant with SFF-8472 & IEEE 802.3cc
  • Fully RoHS Compliant
  • Operating temperature range: Commercial: 0°C to +70°C / Industrial: -40°C to +85°C
Applications
  • Data Center Backbone
  • Ethernet Switches
  • High-speed Servers
  • High-performance Computing Clusters
  • SAN, Routers, Hubs, Load Balancer
Product Description

The HL-SFP28-LR-10KM Transceiver is intended for 10km reach service 25.78Gb/s 1310nm single mode high-speed communications equipment where low-cost, extraordinary performance and reliability are essential. It consumes low power, operates base on 3.3V DC power supply and is offered in the industrial temperature range. They are compliant with SFP28 MSA, SFF-8431 and SFF-8432.

HL-SFP28-LR-10KM 25G SFP28 Transceiver with 10km Transmission Distance, 25.78Gbps Data Rate, and Low Power Consumption <1.2W 0 HL-SFP28-LR-10KM 25G SFP28 Transceiver with 10km Transmission Distance, 25.78Gbps Data Rate, and Low Power Consumption <1.2W 1 HL-SFP28-LR-10KM 25G SFP28 Transceiver with 10km Transmission Distance, 25.78Gbps Data Rate, and Low Power Consumption <1.2W 2 HL-SFP28-LR-10KM 25G SFP28 Transceiver with 10km Transmission Distance, 25.78Gbps Data Rate, and Low Power Consumption <1.2W 3 HL-SFP28-LR-10KM 25G SFP28 Transceiver with 10km Transmission Distance, 25.78Gbps Data Rate, and Low Power Consumption <1.2W 4 HL-SFP28-LR-10KM 25G SFP28 Transceiver with 10km Transmission Distance, 25.78Gbps Data Rate, and Low Power Consumption <1.2W 5
Our Services
OEM and ODM

OEM/ODM order is available.

Quality Guarantee

We promise all the advertised optical transceivers are brand new with new components and parts and absolutely never use old and refurbished materials. All the optical transceivers have been through functional test and aging test. We provide 3 years warranty for all the optical transceivers from the date of shipment.

Product Range

We supply all kinds of compatible optical transceiver modules, including SFP, GBIC, SFP+, XENPAK, X2, XFP, BIDI, CWDM, DWDM and other special transceiver modules. Our products are compatible with most of brands. If more details, please contact us.

Company Information
HL-SFP28-LR-10KM 25G SFP28 Transceiver with 10km Transmission Distance, 25.78Gbps Data Rate, and Low Power Consumption <1.2W 6 HL-SFP28-LR-10KM 25G SFP28 Transceiver with 10km Transmission Distance, 25.78Gbps Data Rate, and Low Power Consumption <1.2W 7

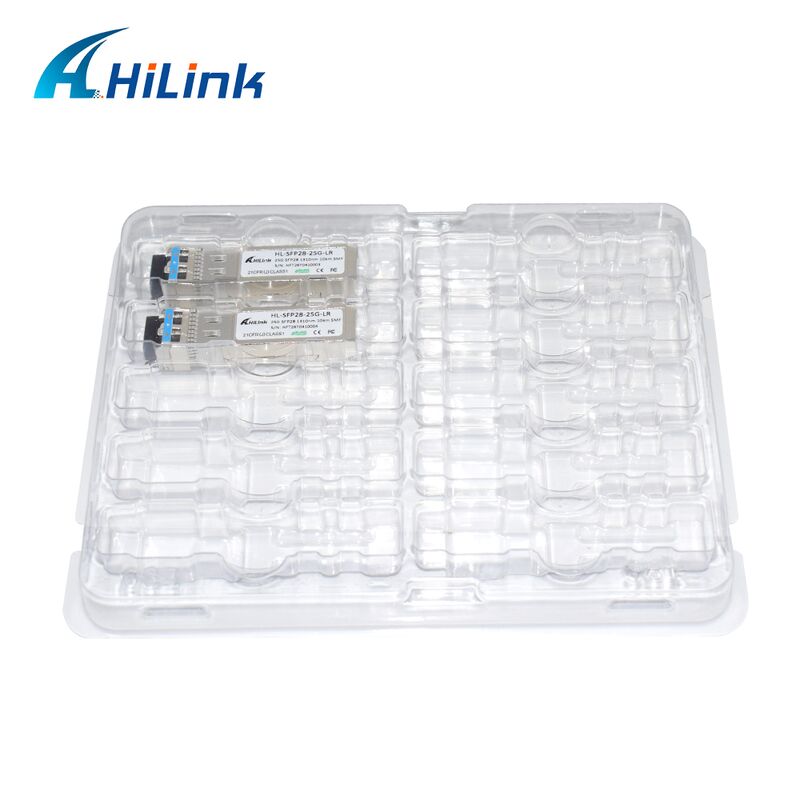

Packaging & Shipping

International Express: DHL, FedEx, EMS, TNT, UPS and so on. It takes 3-7 days.

HL-SFP28-LR-10KM 25G SFP28 Transceiver with 10km Transmission Distance, 25.78Gbps Data Rate, and Low Power Consumption <1.2W 8
