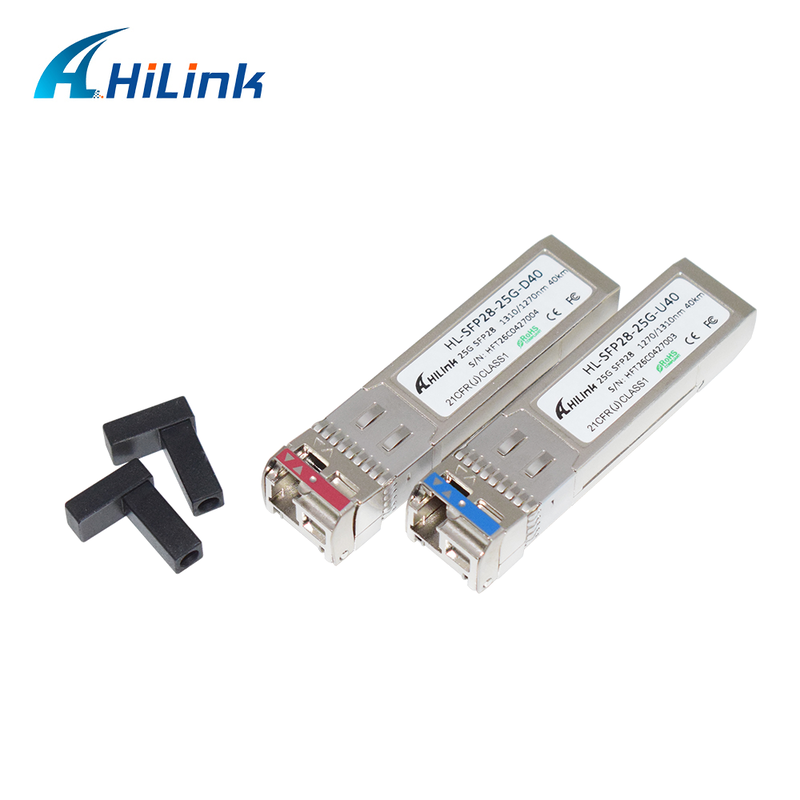

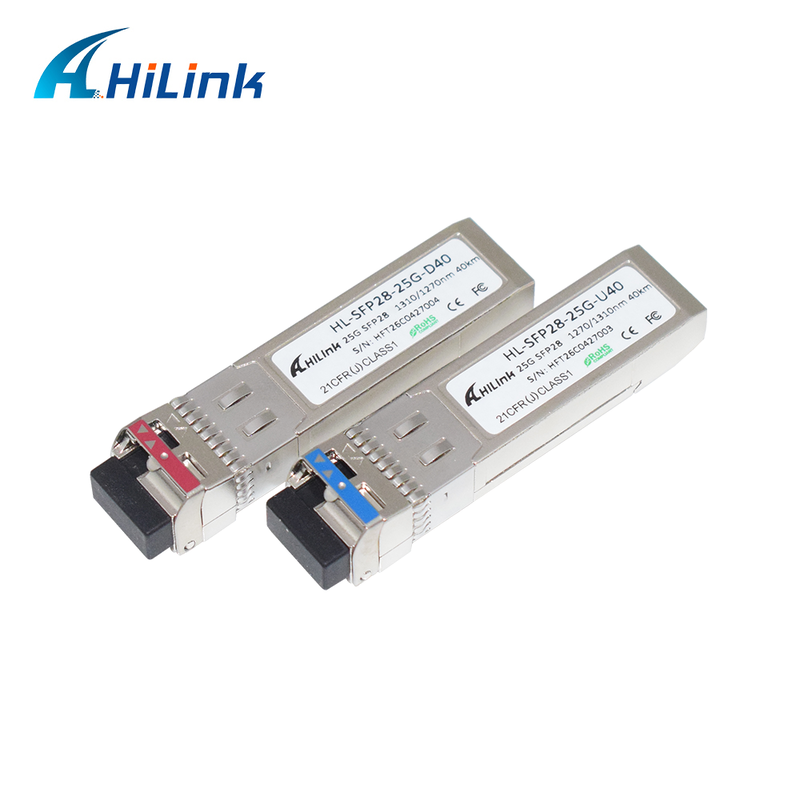

Name: 25GBASE SFP28 25G BIDI 10KM 1270/1330nm DML+PIN LC Optical Module Transceiver DOM
Brand: Shenzhen HiLink Technology Co.,Ltd.
SKU: HL-SFP28-BXDU-40
Price: 78 USD
Availability: InStock

Home > Products > SFP+ Transceiver Module >

25GBASE SFP28 25G BIDI 10KM 1270/1330nm DML+PIN LC Optical Module Transceiver DOM

25GBASE SFP28 BIDI transceiver 10KM

25G BIDI optical module LC DOM

SFP28 transceiver 1270/1330nm DML+PIN

Place of Origin:

Guangdong, China

Brand Name:

HILINK

Certification:

CE FCC Rohs

Model Number:

HL-SFP28-BXDU-40

Request A Quote

Product Details

Data Transfer Rate:

25Gbase

Max Distance:

50km

Wavelength 1:

1270nm/1310nm 1310nm/1270nm

Connector:

LC SIimplex

Warranty:

3 Years

CE FCC Rohs:

Support

Payment & Shipping Terms

Minimum Order Quantity

1 Pair

Price

USD78

Packaging Details

Carton box, Retail box, Or by required

Delivery Time

1-4 days

Payment Terms

L/C, T/T, Western Union, Paypal

Supply Ability

3000 pairs per Week

25Gb/s 50Km SFP28 BIDI Transceivers APD+PIN LC Connector SFP28 Optical Module DOM

Get Best Price

Video

GPON SFP OLT C+ Module 20KM SC/UPC 1490nm / 1310nm SFP 2.5Gbps/1.25Gbps GPON OLT

Get Best Price

Video

25Gbps BIDI 40KM 1270/1310nm 40KM APD LC DOM Transceiver 25G Ethernet Fiber Optic Transceivers

Get Best Price

Video

25Gb/s SFP28 BIDI 60km 1295/1309nm LC DDM Transceiver

Get Best Price

+86 17677464632

sales02@hilinktech.com

86-755-8317-6243

Contact Now

Product Description

25GBASE SFP28 25G BIDI 10KM 1270/1330nm DML+PIN LC Optical Module Transceiver DOM

The 25G BIDI SFP Transceiver is designed for 10km reach service from 24.33Gb/s to 25.78Gb/s bi-directional single mode high-speed communications equipment where exceptional performance, reliability, and cost-effectiveness are essential. This low-power transceiver operates on a 3.3V DC power supply and is available in industrial temperature ranges. Compliant with SFP28 MSA, SFF-8431, and SFF-8432 standards.

Featuring low jitter and low bit error rate optical assembly with DML laser transmitter and PIN/TIA receiver, this transceiver utilizes internal clock and data recovery (CDR) units on both transmitter and receiver chains for optimal jitter compliance. The differential AC coupled Tx and Rx data interfaces are CML compatible, and the device is Class I laser safety compliant.

Key Features

Operating data rate up to 25.78Gbps
Up to 10km transmission distance
High sensitivity PIN photodiode and TIA
Rate Adaptation capability
LC single connector interface
Hot pluggable 20-pin connector
Low power consumption <1.2 W
Single +3.3V±5% power supply
Compliant with SFF-8472 standard
Fully RoHS Compliant
Operating temperature range:
- Commercial: 0°C to +70°C
- Industrial: -40°C to +85°C

Applications

25GE BASE-LR Ethernet
CPRI Option 10/eCPRI

25G SFP Transceiver Models

Model	Specifications
SFP28-25G-SR	SFP28 25Gbps 850nm 100M LC DOM
SFP28-25G-LR	SFP28 25Gbps 1310nm 10KM LC DOM
SFP28-25G-ER	SFP28 25Gbps 1310nm 40KM LC DOM
SFP28-25G-ZR	SFP28 25Gbps 1310nm 80KM LC DOM
SFP28-25G-BIDI-10KM	SFP28 25Gbps BIDI 1270/1330nm 10KM LC DOM
SFP28-25G-BIDI-40KM	SFP28 25Gbps BIDI 1270/1310nm 40KM LC DOM
SFP28-25G-BIDI-50KM	SFP28 25Gbps BIDI 1270/1310nm 50KM LC DOM

Product Images

Mechanical Dimensions
