10G SFP+ Optical Module 60km BiDi SFP+ Transceiver with 1270nm/1330nm Wavelength and DOM LC Connector

10G SFP+ Optical Module 60km BiDi SFP+ Transceiver with 1270nm/1330nm Wavelength and DOM LC Connector

60km SFP+ Transceiver Module

1270nm/1330nm BiDi SFP+ Transceiver

DOM LC 10G SFP+ Optical Module

Place of Origin:

Guangdong, China

Brand Name:

HILINK

Certification:

CE FCC Rohs

Model Number:

HL-10G-SFP-BXD-60KM

Contact Us
Request A Quote
10G SFP+ Optical Module 60km BiDi SFP+ Transceiver with 1270nm/1330nm Wavelength and DOM LC Connector
10G SFP+ Optical Module 60km BiDi SFP+ Transceiver with 1270nm/1330nm Wavelength and DOM LC Connector 10G SFP+ Optical Module 60km BiDi SFP+ Transceiver with 1270nm/1330nm Wavelength and DOM LC Connector
Product Details
Data Transfer Rate:
10Gbps
Max Distance:
60km
Wavelength 1:
1270nm/1330nm
Wavelength 2:
1330nm/1270nm
Interface:
LC Connector
Warranty:
3 Years
Certification:
CE/FCC/RoHS
Payment & Shipping Terms
Minimum Order Quantity
1pair
Price
60-66
Packaging Details
Carton box, Retail box, Or by required
Delivery Time
1-4 days
Payment Terms
L/C,T/T,Paypal
Supply Ability
3000 pairs per Week
RELATED PRODUCTS
Good price 10G SFP+ Optical Module 60km BiDi SFP+ Transceiver with 1270nm/1330nm Wavelength and DOM LC Connector online Video

10G SFP+ Optical Module 60km BiDi SFP+ Transceiver with 1270nm/1330nm Wavelength and DOM LC Connector

Get Best Price
Good price 25GBASE SFP28 25G BIDI 10KM 1270/1330nm DML+PIN LC Optical Module Transceiver DOM online Video

25GBASE SFP28 25G BIDI 10KM 1270/1330nm DML+PIN LC Optical Module Transceiver DOM

Get Best Price
Good price GPON SFP OLT C+ Module 20KM SC/UPC 1490nm / 1310nm SFP 2.5Gbps/1.25Gbps GPON OLT online Video

GPON SFP OLT C+ Module 20KM SC/UPC 1490nm / 1310nm SFP 2.5Gbps/1.25Gbps GPON OLT

Get Best Price
Good price 25Gbps BIDI 40KM 1270/1310nm 40KM APD LC DOM Transceiver 25G Ethernet Fiber Optic Transceivers online Video

25Gbps BIDI 40KM 1270/1310nm 40KM APD LC DOM Transceiver 25G Ethernet Fiber Optic Transceivers

Get Best Price
Contact Us
+86 17677464632
sales02@hilinktech.com
86-755-8317-6243
Contact Now
Product Description

10GBASE SFP Transceiver 60KM BIDI SFP+ SMF 1270nm/1330nm DOM LC Optical Module


General

      The HL-SFP10G-UD-60 series single mode transceiver is small form factor pluggable module for duplex optical data communications such as 10GBASE-LR/LW defined by IEEE 802.3ae. It is with the SFP+ 20-pin connector to allow hot plug capability.

The HL-SFP10G-UD-60 module is designed for single mode fiber and operates at a nominal wavelength of 1270nm; CBP-32192-L6C module is designed for single mode fiber and operates at a nominal wavelength of 1330nm. The transmitter section uses a multiple quantum well DFB, which is class 1 laser compliant according to International Safety Standard IEC-60825.

The receiver section uses an integrated InGaAs detector preamplifier (IDP) mounted in an optical header and a limiting post-amplifier IC.


Features

Simplex LC Connector Bi-Directional SFP+ Optical Transceiver
Compliant with SFF-8431,SFF-8432 and IEE802.3ae
Up to 60km on 9/125um SMF
Two types:
A:1270nm DFB Laser transmitter,1330nm receiver
B:1330nm DFB Laser transmitter,1270nm receiver
Digital Diagnostic SFF-8472 Compliant
Operating case temperature  0ºC ~ +70ºC
RoHS6 compliant (lead free)


Application

10GBASE-LR at 10.3125Gbps

10GBASE-LW at 9.953Gbps

Other Optical Links


BIDI(WDM) SFP Transceivers

10G SFP BiDi SFP+ BiDi 1270 20km SFP+ BiDi 20km Tx1270nm/Rx1330nm LC
SFP+ BiDi 1330 20km SFP+ BiDi 20km Tx1330nm/Rx1270nm LC
SFP+ BiDi 1270 40km SFP+ BiDi 40km Tx1270nm/Rx1330nm LC
SFP+ BiDi 1330 40km SFP+ BiDi 20km Tx1330nm/Rx1270nm LC
SFP+ BiDi 1270 60km SFP+ BiDi 60km Tx1270nm/Rx1330nm LC
SFP+ BiDi 1330 60km SFP+ BiDi 60km Tx1330nm/Rx1270nm LC
SFP+ BiDi 1490 80km SFP+ BiDi 80km Tx1490nm/Rx1550nm LC
SFP+ BiDi 1550 80km SFP+ BiDi 80km Tx1550nm/Rx1490nm LC

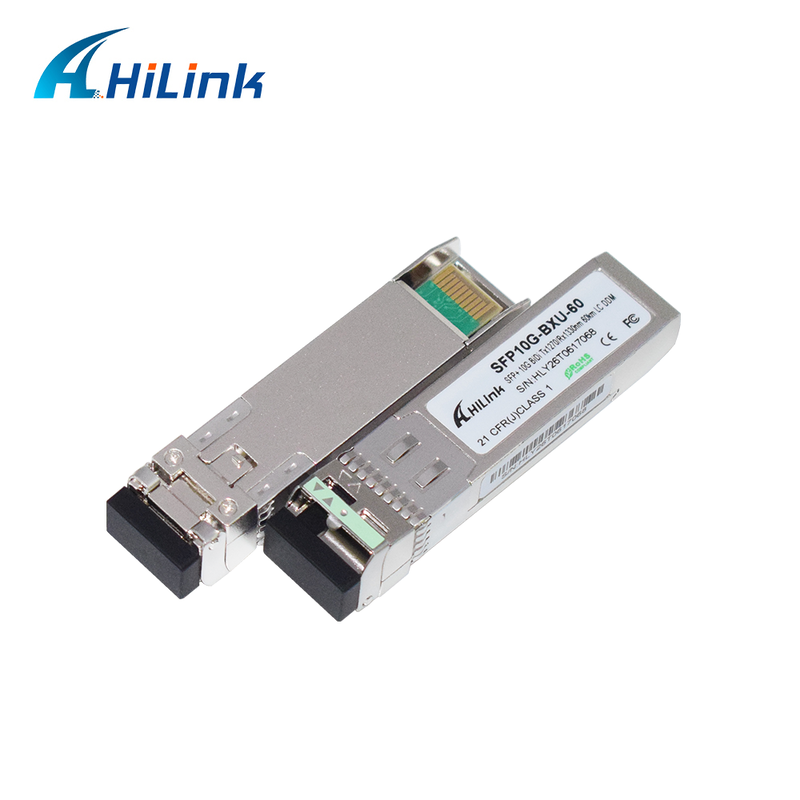

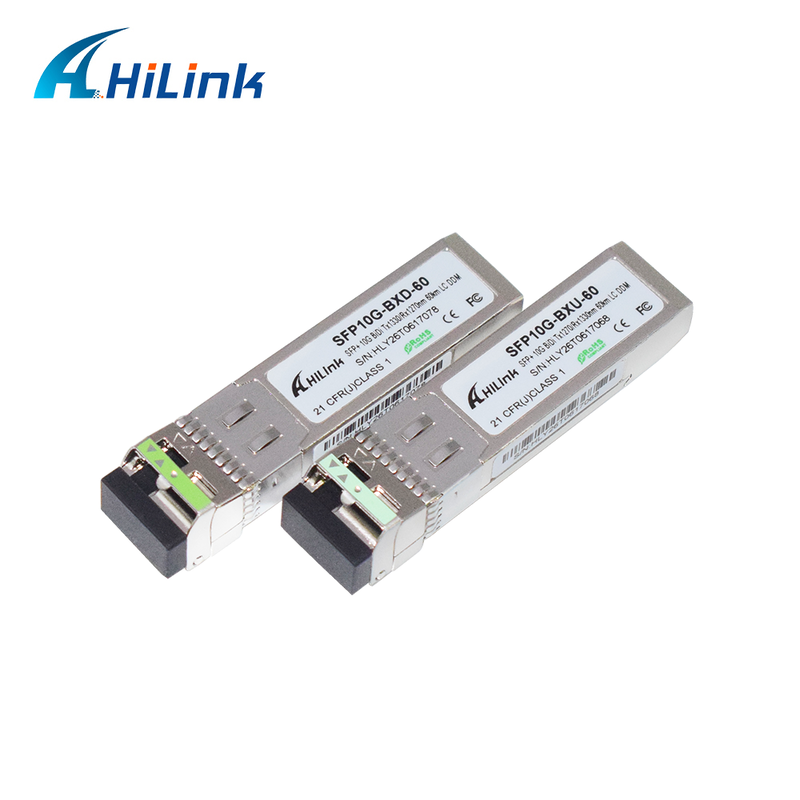

Product Picture

10G SFP+ Optical Module 60km BiDi SFP+ Transceiver with 1270nm/1330nm Wavelength and DOM LC Connector10G SFP+ Optical Module 60km BiDi SFP+ Transceiver with 1270nm/1330nm Wavelength and DOM LC Connector10G SFP+ Optical Module 60km BiDi SFP+ Transceiver with 1270nm/1330nm Wavelength and DOM LC Connector


Optical Characteristics (TOP(C) = 0 to 70 ℃, TOP(I) =-40 to 80 ℃,VCC = 3.13 to 3.47 V)

      Parameter

Symbol

Min.

Typical

Max

Unit

Ref.

    Transmitter

Optical Wavelength

λC

1260

1270

1280

nm



Side Mode Suppress Ratio

SMSR

30





dB



Spectral Width(-20dB)

Δλ





1

nm



Average Output Power

Pop

+1



+5

dBm

1,2

Extinction Ratio

ER

3.5





dB



Eye Mask



Compliant with IEEE 802.3

Receiver

Average Receiver Power

RSENS





-21

dBm

2,3

Receiver Overload

PMAX





+0.5

dBm



Centre Wavelength

λC

1320



1340

nm



LOS De-Assert

LOSD





-22

dBm



LOS Assert

LOSA

-35





dBm



LOS Hysteresis



0.5





dB


      Parameter

Symbol

Min.

Typical

Max

Unit

Ref.

    Transmitter

Optical Wavelength

λC

1320

1330

1340

nm



Side Mode Suppress Ratio

SMSR

30





dB



Spectral Width(-20dB)

Δλ





1

nm



Average Output Power

Pop

+1



+5

dBm

1,2

Extinction Ratio

ER

3.5





dB



Eye Mask



Compliant with IEEE 802.3

Receiver

Average Receiver Power

RSENS





-21

dBm

2,3

Receiver Overload

PMAX





+0.5

dBm



Centre Wavelength

λC

1260



1270

nm



LOS De-Assert

LOSD





-22

dBm



LOS Assert

LOSA

-35





dBm



LOS Hysteresis



0.5





dB



Notes:

1. Output is coupled into a 9/125um SMF.

2. Average Receiver Power (Min) is informative and not the principal indicator of signal strength. A received power below this value cannot be compliant.

3. Measured with a PRBS231-1 test pattern @10.3125Gbps, BER≦10-12

Package Dimensions

10G SFP+ Optical Module 60km BiDi SFP+ Transceiver with 1270nm/1330nm Wavelength and DOM LC Connector

Compatibility

      Cisco, Huawei, MikroTik, H3C, HP, Extreme, Foundry, Brocade, D-link, Alcatel, Enterasys, Netgear, Juniper, Ruijie, Zyxel, etc.


Our Service

 Contact our sales for more details to confirm your order.
 Short lead time after confirmation.

 We deliver goods by international Express.

 Quick response for customers' feedback and other questions.


Technician support

We support technical guide to solve malfunction or substitute components, and provide the project of related networking configuration.
After-sales service
We have after service for 24 hours, promises to supply technical service or guide in anytime.
Our co-workers will be response clients's requirement in 12 hours after emergency happened.
