Name: 100GBASE QSFP28 100G SWDM4 850NM OM5 150M MMF Fiber Optic Transceiver DDM
Brand: Shenzhen HiLink Technology Co.,Ltd.
SKU: HL-QSFP28-100G-SWDM4
Price: 150 USD
Availability: InStock

Home > Products > QSFP+ Transceiver >

100GBASE QSFP28 100G SWDM4 850NM OM5 150M MMF Fiber Optic Transceiver DDM

100GBASE QSFP28 SWDM4 transceiver

QSFP28 100G OM5 fiber optic

100G SWDM4 transceiver with DDM

Place of Origin:

Guangdong, China

Brand Name:

HILINK

Certification:

CE FCC Rohs

Model Number:

HL-QSFP28-100G-SWDM4

Request A Quote

100GBASE QSFP28 100G SWDM4 850NM OM5 150M MMF Fiber Optic Transceiver DDM

Product Details

Type:

100GBASE QSFP SWDM4 850nm

Temperature:

0-70℃

Wavelength:

850nm

Connector:

Duplex LC Connector

Product Name:

QSFP Transceiver

CE FCC:

Support

Payment & Shipping Terms

Minimum Order Quantity

1pcs

Price

USD 150/unit

Packaging Details

Static bag, Plastic Flat, Retail box, by requires

Payment Terms

L/C, T/T, Western Union.Paypal

Supply Ability

100/PCS/MONTH

100Gb/s QSFP28 Transceiver with 80km Reach Hot Pluggable Duplex LC Connector LAN WDM EML TOSA

Get Best Price

Hilink QSFP56-200G-SR4 200G BASE-SR4 QSFP56 Transceiver with 850nm Multi-mode and Diagnostic Monitoring

Get Best Price

Video

200G QSFP56 SR4 Optical Transceiver with 100m Distance and Single MPO12 Connector for High-Speed Data Transmission

Get Best Price

QSFPDD 400G SR4 Optical Transceiver with MPO-12 Connector for 100m Transmission

Get Best Price

+86 17677464632

sales02@hilinktech.com

86-755-8317-6243

Contact Now

Product Description

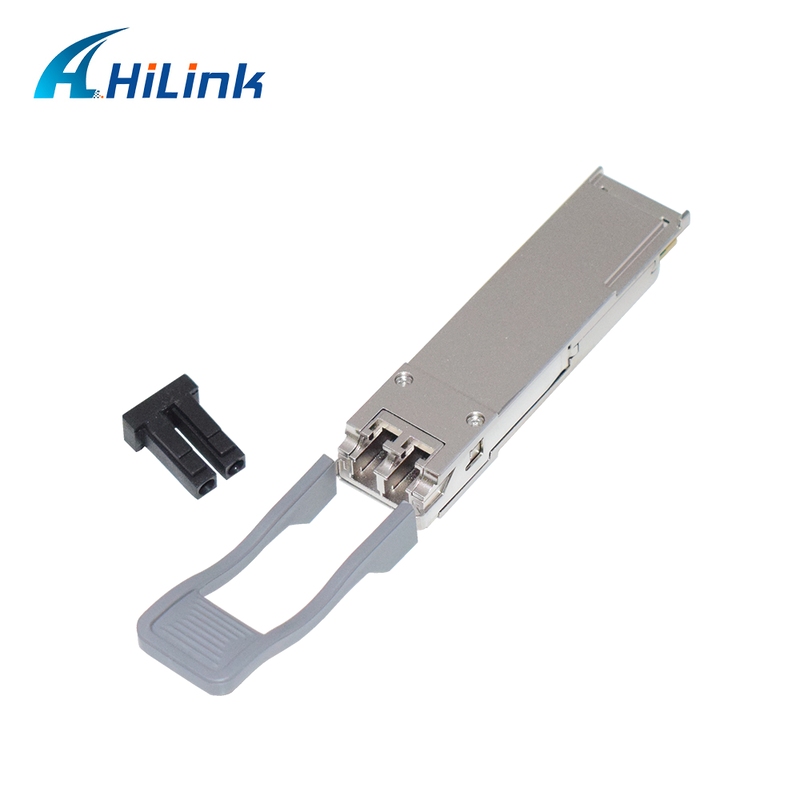

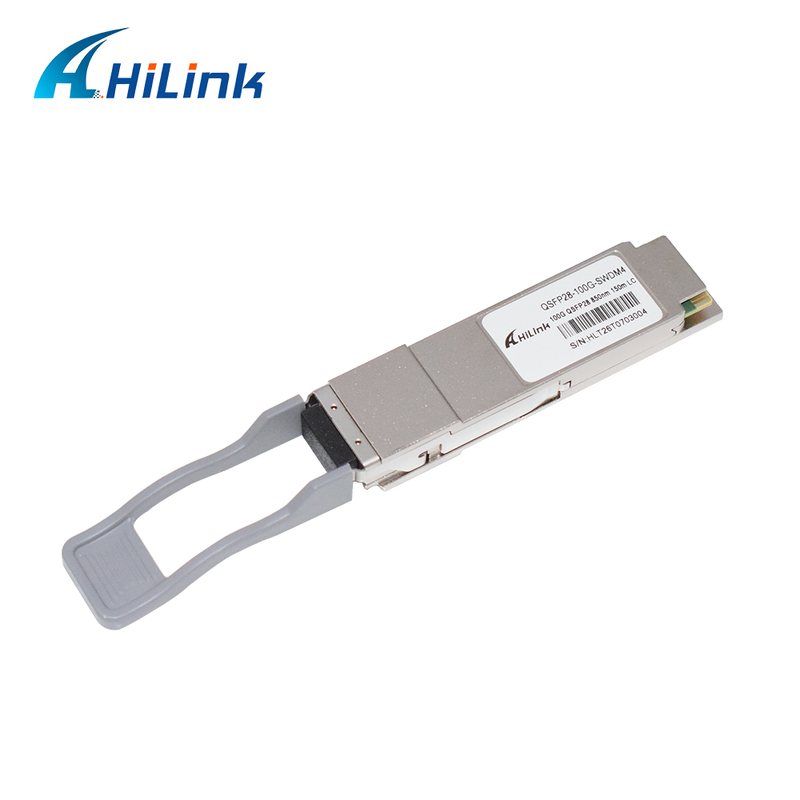

100GBASE QSFP28 100G SWDM4 850NM OM5 150M MMF Fiber Optic Transceiver DDM

The Hilink 100G QSFP28 SWDM4 transceiver modules are designed for use in 100G Ethernet links over duplex multimode fiber. Four channels/lanes in the 850-940nm region @ 25.78Gbps transport the Ethernet signal. Digital diagnostics functions are available via an I2C interface, as specified by the QSFP28 MSA.

Product Features

Compliant with QSFP28 MSA
Compliant with SWDM MSA
Compliant with IEEE802.3bm CAUI-4
Hot-pluggable QSFP28 form factor
4x25Gb/s 850mm VCSEL-based transmitter
Supports 103.1Gbps aggregate bit rate
Power dissipation <3.5W
Maximum link length of 150m on OM5 multimode Fiber
Case temperature range of 0°C to 70°C
Duplex LC receptacles
CAUI-4 electrical interface
RoHS compliant

Applications

100G Ethernet over Duplex MMF
Datacom/Telecom switch & router connections
Data aggregation and backplane applications
Proprietary protocol and density applications

QSFP Series Products

Part Number	Product Description
HL-QSFP-40G-SR4	QSFP+, 40Gb/s, 40GBASE-SR4, MMF, 850nm, 150M
HL-QSFP-40G-LR4	QSFP+, 40Gb/s, 40GBASE-LR4, SMF, 1310nm, 10KM
HL-QSFP-40G-ER4	QSFP+, 40Gb/s, 40GBASE-ER4, SMF, 1310nm, 40KM
HL-QSFP28-100G-SR4	QSFP+, 100Gb/s, 100GBASE-SR4, MMF, 850nm, 150M
HL-QSFP28-100G-LR4	QSFP+, 100Gb/s, 100GBASE-LR4, SMF, 1310nm, 10KM
HL-QSFP28-100G-ER4	QSFP+, 100Gb/s, 100GBASE-ER4, SMF, 1310nm, 40KM
HL-QSFP28-100G-ZR4	QSFP+, 100Gb/s, 100GBASE-ZR4, SMF, 1310nm, 80KM

Product Images

Frequently Asked Questions

Do you sell second-hand products?

No. All our products are brand new, we never use second-hand components.

What payment terms do you accept?

T/T, PayPal, Western Union are acceptable.

What are the shipping ways can you offer?

Our usual shipping ways are DHL, FedEx, TNT, UPS, EMS etc. It will take 3-7 days.

Do your products come with warranty?

Yes, We provide 3 years warranty for all our products from the date of shipment.

How to place an order?

1. Order details confirmed - please tell us the model and quantity you need.
2. Proforma Invoice confirmed - the order will be arranged upon receipt of your payment.
3. Confirm and ship the goods - tracking number will be sent to you promptly.
4. We will help to track your goods until you receive them safely.
