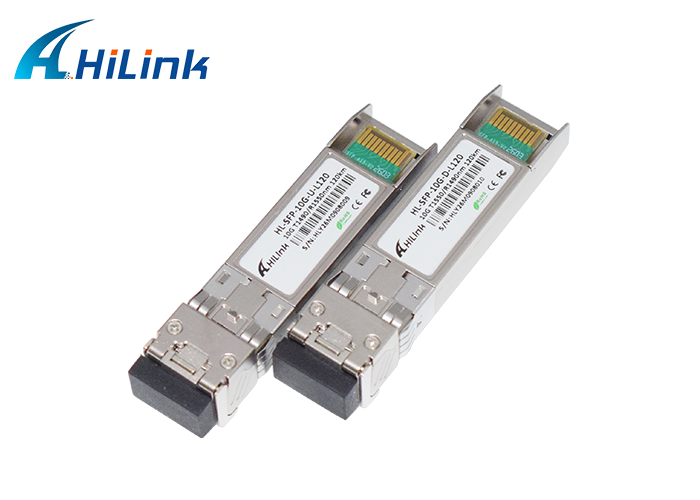

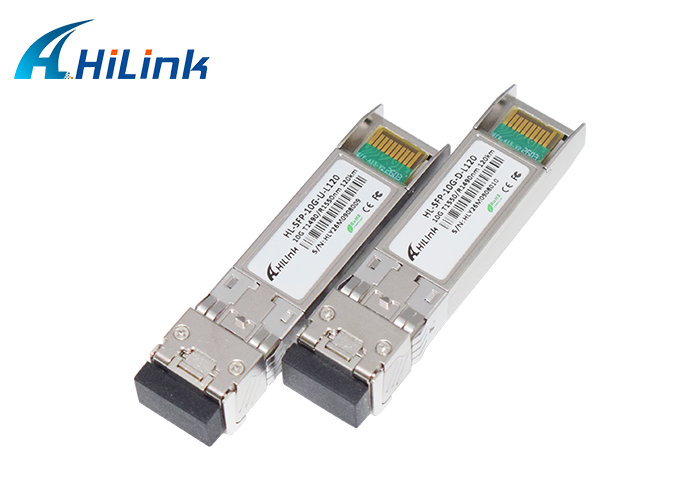

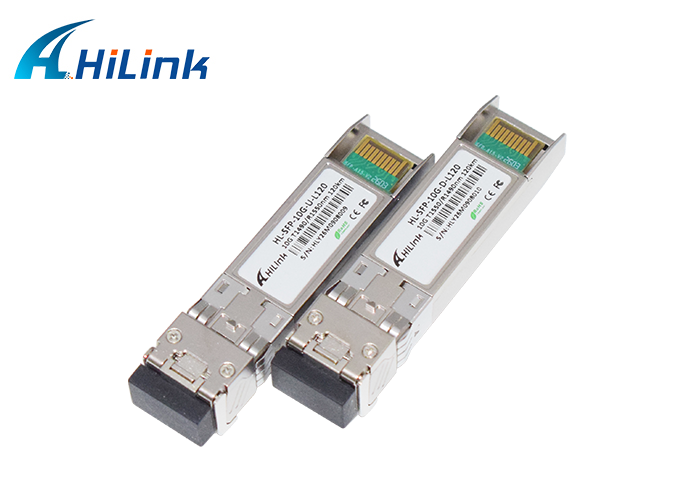

Name: 10Gbps SFP+ BIDI Transceiver, Single Mode, 120km Reach 1490nm / 1550nm for DataCenter
Brand: Shenzhen HiLink Technology Co.,Ltd.
SKU: SFP-BX-L120
Price: 893.00 USD
Availability: InStock

Home > Products > SFP+ Transceiver Module >

10Gbps SFP+ BIDI Transceiver, Single Mode, 120km Reach 1490nm / 1550nm for DataCenter

10Gbps SFP+ BIDI Transceiver

Single Mode 120km SFP+ Module

1490nm 1550nm DataCenter Transceiver

Place of Origin:

Guangdong, China

Brand Name:

HILINK

Certification:

CE FCC Rohs

Model Number:

SFP-BX-L120

Request A Quote

Product Details

Product Name:

10G SFP+ BIDI 120Km

Data Rate:

10Gbps

Wavelength:

1490/1550nm

Distance:

120Km

Connector Type:

LC/UPC

DDM:

Yes

Logo:

Can Be Customized

Warranty:

3 Years

Payment & Shipping Terms

Minimum Order Quantity

1pcs

Price

Get latest price

Packaging Details

Static bag, Plastic Flat, Retail box, by requires

Delivery Time

3-4 working days

Payment Terms

T/T, Western Union, ,Paypal etc.

Supply Ability

100pair/month

Industrial Grade 25G BIDI 1270/1310nm 40KM APD+TIA Optical Module Single-Fiber Simplex LC DOM

Get Best Price

Video

25Gb/s 50Km SFP28 BIDI Transceivers APD+PIN LC Connector SFP28 Optical Module DOM

Get Best Price

Video

10G SFP+ Optical Module 60km BiDi SFP+ Transceiver with 1270nm/1330nm Wavelength and DOM LC Connector

Get Best Price

Video

25GBASE SFP28 25G BIDI 10KM 1270/1330nm DML+PIN LC Optical Module Transceiver DOM

Get Best Price

86-755-8317-6243

Contact Now

Product Description

10Gbps SFP+ BIDI Transceiver Overview

The 10Gbps SFP+ BIDI transceiver is a high-performance, cost-effective optical module supporting data rates up to 10Gbps and transmission distances up to 120km over single-mode fiber (SMF). It is designed for data center and telecom applications requiring reliable long-reach connectivity at 1490nm / 1550nm wavelengths.

The transceiver consists of three core sections: a Cooled EML laser transmitter, an APD photodiode integrated with a trans-impedance preamplifier (TIA), and an MCU control unit. All modules satisfy Class I laser safety requirements and are compatible with the SFP Multi-Source Agreement (MSA) and SFF-8472 digital diagnostics functions.

Product Features

Supports up to 10.7Gbps bit rates
Hot-pluggable SFP+ footprint
1490nm Cooled EML laser and APD photodiode, up to 120km for SMF transmission
Compliant with SFP+ MSA and SFF-8472 with single LC receptacle
RoHS compliant
Single +3.3V power supply
Real-time Digital Diagnostic Monitoring (DDM)
Operating case temperature: 0 to +70°C

Applications

10Gbps optical systems
10GBASE-ZR at 10.3125Gbps
10GBASE-ZW at 9.953Gbps
LTE systems
Other optical links

Key Specifications

Data Rate	Up to 10.7Gbps
Transmission Distance	Up to 120km over SMF
Wavelength	1490nm / 1550nm (BIDI)
Laser Type	Cooled EML
Photodiode	APD with TIA
Connector	Single LC receptacle
Power Supply	+3.3V
Operating Temperature	0 to +70°C
Compliance	SFP+ MSA, SFF-8472, RoHS, Class I Laser Safety
