Place of Origin:
Guangdong, China
Brand Name:
HILINK
Certification:
CE FCC Rohs
Model Number:
HL-GLC LH SMD

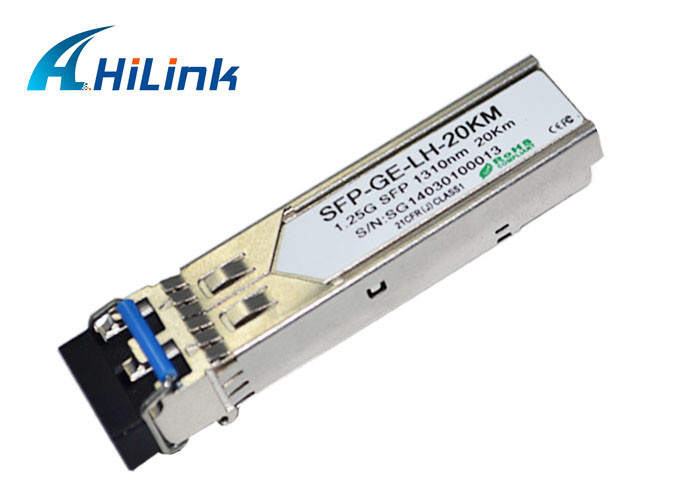

1000base LX SFP Transceiver Module GLC-LH-SMD 1310nm DDM 3 Years Warranty
1 Features:
1 1310nm FP laser and PIN photodetector
2 Meet SFP MSA and SFF-8472 with LC receptacle
3 Digital diagnostic monitoring
4 20KM transmission with SMF
5 Hot-pluggable
6 Metal enclosure for lower EMI
7 +3.3V Single power supply
8 Qualified to meet the intent of Bellcore reliability practices
9 LVPECL logic interface simplifies interface to external circuitry
10 LVTTL logic level RX LOS
11 With pull de-latch
12 With 9/125 µm single mode fiber (SMF)
13 Operate data rate: 1.25Gb/s;
14 operate temperature Standard :0 to +70°C,
Extended : -20 to +85°C,industrial : -40 to +85°C
15 Complies with RoHS FCC directive
2 Application:
1 Gigabit Ethernet
2 Switch to Switch interface
3 Switched backplane applications
4 Router/Server interface
5 Other optical transmission systems
3 General
The optical transceiver is compliant with the Small Form-Factor Pluggable (SFP) Multi-Source Agreement (MSA) and SFF-8472. It offers previously unavailable system cost, upgrade, and reliability benefits by virtue of being hot-pluggable. The optical transceiver is ROHS compliant, each of the components is lead-free.
Specifications:
P/N | GLC-LH-SMD SFP-GEL |
Datarate | 1.25G |
Distance | 20KM |
Wavelength | 1310nm |
Transmitter | FP |
Receiver | PIN |
Media | SMF |
DDM/DOM | YES |
Connector | LC |
Application | GE |
Operating Temperature | -10℃~ +85℃ |
Voltage Supply | 3.3V |
Certification | CE/FCC/RoHS/TUV/UL |
Brand |
Neutral, and OEM |
Description
The SFP transceivers are high performance, cost effective modules supporting data-rate of 1.25Gbps/1.0625Gbps and 10km transmission distance with SMF.
The transceiver consists of three sections: a DFB laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.
The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472.
Gigabit Ethernet Transceivers
Reference Specification
Cisco Part Number | Description |
GLC-T= | 1000BASE-T SFP transceiver module for Category 5 copper wire, RJ-45 connector |
GLC-SX-MM= | 1000BASE-SX SFP transceiver module for MMF, 850-nm wavelength, dual LC/PC connector |
GLC-LH-SM= | 1000BASE-LX/LH SFP transceiver module for MMF and SMF, 1310-nm wavelength, dual LC/PC connector |
GLC-ZX-SM= | 1000BASE-ZX SFP transceiver module for SMF, 1550-nm wavelength, dual LC/PC connector |
GLC-BX- D= | 1000BASE-BX10 SFP module for single-strand SMF, 1490-nm TX/1310-nm RX wavelength, single LC/PC connector |
GLC-BX-U= | 1000BASE-BX10 SFP module for single-strand SMF, 1310-nm TX/1490-nm RX wavelength, single LC/PC connector |
GLC-2BX-D= | Dual-channel 1000BASE-BX10 SFP module for single-strand SMF, 1490-nm TX/1310-nm RX wavelength, two single LC/PC connectors |
SFP-GE-S= | 1000BASE-SX SFP transceiver module for MMF, 850-nm wavelength, extended operating temperature range and DOM support, dual LC/PC connector |
SFP-GE-L= | 1000BASE-LX/LH SFP transceiver module for MMF and SMF, 1300-nm wavelength, extended operating temperature range and DOM support, dual LC/PC connector |
SFP-GE-Z= | 1000BASE-ZX SFP transceiver module for SMF, 1550-nm wavelength, extended operating temperature range and DOM support, dual LC/PC connector |
SFP-GE-T= |
1000BASE-T SFP transceiver module for Category 5 copper wire, extended operating temperature range, RJ-45 connector |
Shipment
International Express: DHL, FedEx,EMS,TNT, UPS and so on. It takes 3-7 days.
