HL - SFP - 10G LR
We supply wide range of high quality optical transceivers and passive CWDM/DWDM Mux/Demux modules. Our products are compatible with Cisco, Huawei, Extreme, HP, Finisar, Broadcom, Foundry, Alcatel, D-link, Enterasys, Netgear, Juniper, Nortel, Linksys, Allied, Zyxel, Dell, Redback, H3C, ZTE, Ruijie, Ciena , Alcatel-lucent, etc.

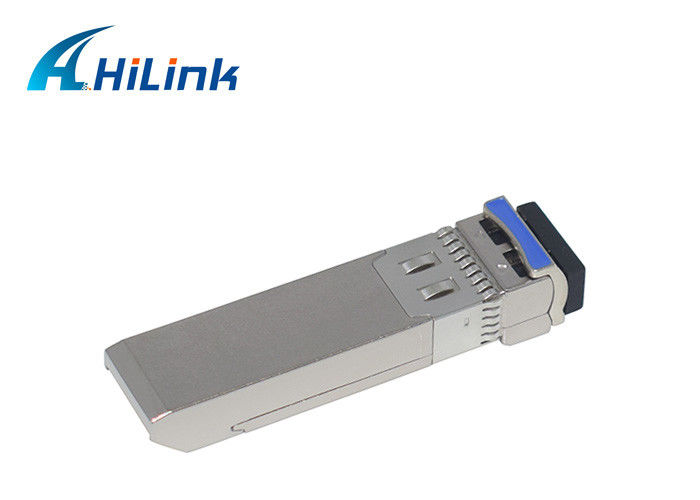

10GB 1310nm 10Km SFP + transceiver switch module
DESCRIPTION :
SFP+ LR is specifically designed for the high performance integrated duplex data transmission over single mode optical fiber. This transceiver module is compliant with the Small Form-factor Pluggable Plus (SFP+) Multisource Agreement (SFF-8431 Rev4.1).This transceiver type is specifically optimized for transport of serial data at up to 10.3125 Gbps, with link characteristics complied with 10-Gigabit Ethernet 10GBASE-LR base IEEE 802.3ae and 10G Fibre Channel 1200-SM-LL-L. 5
FEATURES :
Series Number | HL- SFP - 10G - LR | Vendor Name | Hilink |
Power supply | +3.3V | Max Data Rate | 10.3125Gbps |
Wavelength | 1310nm | Max Cable Distance | 10Km |
Interface | LC | Optical Components |
DFB Transmitter and PIN Receiver |
Cable Type | SMF | DOM Support | Yes |
TX Power | -7.3 to -1dBm | Receiver Sensitivity | -11.1 to -9.9dBm |
Commercial Temperature | -5°C to 70°C | Power dissipation | <1.0W |
APPLICATION :
● 10GBASE - LR / LW 10G Ethernet
● 1200 - SM - LL - L 10G Fibre Channel
DETAILED PARAMETER :
Parameter | Symbol | Min. | Typ. | Max. | Unit | Notes | |
Input Differential Impedance | Zin | 90 | 100 | 110 | Ω | ||
Tx_Fault | Normal Operation | VOL | -0.3 | - | 0.4 | V | |
Transmitter Fault | VOH | 2.4 | - | Vcc | V | ||
TX_Disable (Note 1) | Disable | VIH | 2.0 | - | Vcc+0.3 | V | |
Enable | VIL | -0.3 | - | 0.8 | V | ||
Average Launch Optical Power | Pout | -8.2 | - | 0.5 | dBm | ||
Optical modulation amplitude | P(OMA) | -5.2 | -2 | dBm | |||
Extinction Ratio | ER | 3.5 | 5 | - | dB | ||
Transmitter and Dispersion Penalty | TDP | - | - | 3.2 | dB | ||
Average Launch power of OFF TX | Poff | - | - | -30 | dBm | ||
Optical Wavelength | λ | 1260 | 1355 | nm | |||
Side mode Suppression Ratio | SMSR | 30 | dB | ||||
Relative Intensity Noise(OMA) | RIN12 | -130 | dB/Hz | ||||
Optical Return Loss Tolerance | ORLT | 12 | dB | ||||
Eye Diagram | Compatible with IEEE 802.3-2005 |
Parameter | Symbol | Min. | Typ. | Max. | Unit | Notes |
Differential Data Output Swing | Vout | 300 | - | 800 | mV | |
Output Differential Impedance | Zin | 90 | 100 | 110 | Ω | |
Receiver sensitivity (max) in OMA |
PIN-SENS(OMA) | - | - | -12.6 | dBm | BER<10E-12; PRBS2^31 |
Receiver Sensitivity | PIN-SENS | - | - | -14.4 | dBm | |
Overload | 0.5 | - | - | dBm | ||
Receiver reflectance | - | - | - | -12 | dB | |
Optical Center Wavelength | λC | 1270 | - | 1600 | nm | |
Los Assert | -32 | - | - | dBm | ||
Los De-assert | - | - | -18 | dBm | ||
Los hysteresis | 0.5 | - | - | dB |
