High Density Connections DAC SFP Plus Cable For Data Center Cabling Infrastructure

High Density Connections DAC SFP Plus Cable For Data Center Cabling Infrastructure

dac copper cable

active copper cable

Place of Origin:

China

Brand Name:

HILINK

Certification:

CE FCC Rohs

Model Number:

SFP-H10GB-CU5M

Contact Us
Request A Quote
Product Details
Max Data Rate:
10Gbps
Cable Type:
Passive Copper Cable
Wire AWG:
30AWG
Cable Length:
5m
Jacket Material:
PVC
Temperature:
0 To 70°C
HTS-Harmonized Code:
8544700000
Connector:
SFP+ To SFP+
Payment & Shipping Terms
Minimum Order Quantity
1pcs
Price
Negotiable
Packaging Details
Poly bag
Delivery Time
1-3 Days
Payment Terms
T/T, Western Union
Product Description

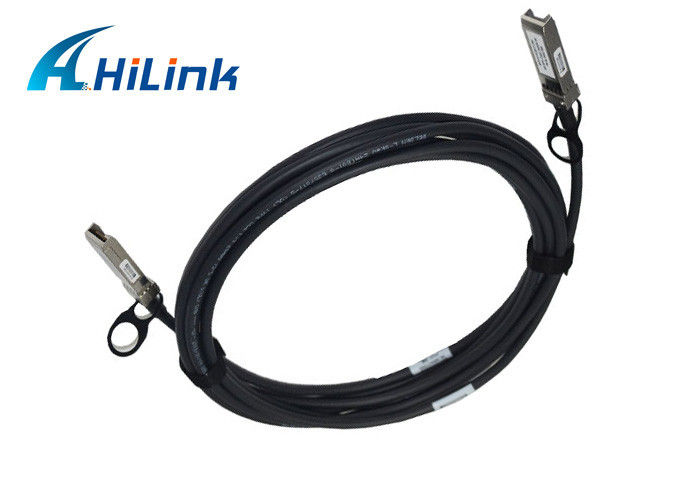

High Density Connections DAC SFP Plus Cable For Data Center Cabling Infrastructure

Product Description

The SFP+ passive cable assemblies are high performance, cost effective I/O solutions for 10G Ethernet and 10G Fiber Channel applications. SFP+ copper modules allow hardware manufactures to achieve high port density, configurability and utilization at a very low cast and reduced power budget. The high speed cable assemblies meet and exceed Gigabit Ethernet and Fiber Channel industry standard requirements for performance and reliability.


Features

Cisco GenuineSFP-H10GB-CU5MVendor NameHilink
Connector TypeSFP+ to SFP+Max Data Rate10Gbps
Cable TypePassive Copper CableWire AWG24AWG
Cable Length5mJacket MaterialPVC
Temperature0 to 70°C (32 to 158°F)HTS-Harmonized Code8544700000



Applications

High capacity I/O in Storage Area Networks, Network Attached Storage, and Storage Servers
Switched fabric I/O such as ultra high bandwidth switches and routers
Data center cabling infrastructure
High density connections between networking equipment

Recommended Operating Conditions



ParameterSymbolMinTypicalMaxUnit
Storage Ambient Temperature -40 +85Centigrade
Operating Case TemperatureTc0 +70Centigrade



Systems


PerformanceMedia
10.5 Gpbs line speed, full duplex

Bit error rate: better than 10E-12

Hot-pluggable, industry-standard Small Form-Factor

Pluggable (SFP+) copper cable, available as 0.2m, 0.5m, 1m, 3m, 5m or 10m.



About order


Part No.Product Description
SFP+-10G-CU10G SFP+ Direct Attach Passive Copper Cables 0.2m,0.5m,1m,3m,5m or 10m Reach




Mechanical Specifications
